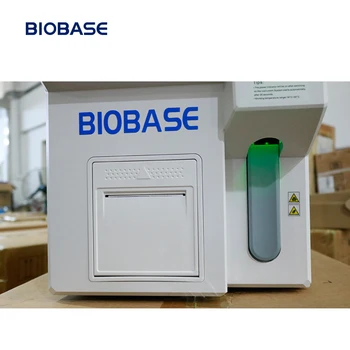

- BIOBASE Auto Hematology Analyzer for Lab
- Product Detail
- Company Profile
Product Discription
Features:
①．Throughput: 60T/H
②．8 inch touch screen
③．20 parameters + 3 histograms
④．3 counting modes
⑤．100,000 sample results
⑥．Support LIS and external printer
Technical Parameters
|
Model |
BK-6190 |
||||
|
Throughput |
60Tests/hour |
||||
|
Measuring Principle |
Impedance for cell counting Cyanide-free method for HGB |
||||
|
Aperture Diameter |
WBC chamber:100μm,RBC/PLT chamber:70μm |
||||
|
Parameters |
WBC, Neu#, Lym#, Mid#, Neu%,Lym%, Mid%, RBC, HGB, HCT, MCV, MCH, MCHC,RDW-SD, RDW-CV, PLT, MPV, PDW, PCT, P-LCR |
||||
|
Histograms |
3 histograms(includingWBC, RBC, PLT histogram) |
||||
|
Sample Volume |
Normal:10μl; Predileted:20μl |
||||
|
Calibration |
Manual & auto calibration |
||||
|
Counting Modes |
Venous, capilary, prediluted |
||||
|
Printer |
Built-in thermal printer,USB to external printer(optional) |
||||
|
Data Input |
8 inch touch screen, keyboard, mouse |
||||
|
Output |
RS232 port, USB port, VGA port. LIS system avaliable |
||||
|
Storage |
100,000 results with histogram |
||||
|
Carry-over rate |
Parameter |
CV |
|||
|
WBC |
≤ 2% |
||||
|
RBC |
≤ 1% |
||||
|
HGB |
≤ 2% |
||||
|
PLT |
≤ 2% |
||||
|
Background |
Parameter |
Background |
|||
|
WBC |
≤ 0.2×10^9/L |
||||
|
RBC |
≤ 0.02×10^12/L |
||||
|
HGB |
≤ 1 g/L |
||||
|
HCT |
≤ 0.5% |
||||
|
PLT |
≤ 10×10^9/L |
||||
|
Precision
|
Parameter |
CV |
Measurement range |
||
|
WBC |
≤ 2.0% |
(4.0-15.0×10^9)/L |
|||
|
RBC |
≤ 1.9% |
(3.5-6.0×10^12)/L |
|||
|
HGB |
≤ 1.9% |
(110.0-180.0g)/L |
|||
|
MCV |
≤ 0.4% |
(80.0-110.0)fL |
|||
|
PLT |
≤ 4.0% |
(100.0-500.0×10^9)/L |
|||
|
Linearity |
Parameter |
Measurement range |
CV |
||
|
WBC |
(0-5.9×10^9)/L (6.0-99.9×10^9)/L |
(±0.3×10^9)/L ±5% |
|||
|
RBC |
(0-0.99×10^12)/L (1.0-9.99×10^12)/L |
(±0.05×10^12)/L ±5% |
|||
|
HGB |
(0-99.0g)/L (100.0-300.0g)/L |
(±2.0g)/L ±2% |
|||
|
PLT |
(0-99×10^9)/L 100-999×10^9)/L |
(±8.0×10^9)/L ±10% |
|||
|
Power supply |
AC 220±10%,60/50Hz, 110±10%,60Hz |
||||
|
Package Size |
580*470*590mm (W*D*H) |
ReagentPackage Size |
450*410*310mm (W*D*H) |
||
|
Gross Weight |
27kg |
ReagentGross Weight |
23kg |
||
-
BIOBASE Group is a professional manufacturer of laboratory and medical analytical products since 1999.
Our main products in IVD field mainly are Auto chemistry analyzer,Chemistry & Elisa reagents, Auto ELISA processor, Microplate reader&washer,Hematology analyzer.Electrolyte analyzer.Urine analyzer,Coagulation analyzer,.etc.
In Lab field mainly are Biological safety cabinet,Fume hood.Laminar flow cabinet,PCR cabinet,etc.
We have more than 3,500 employees and 100,000 square meters production base. The wide experience on the research and manufacturing Lab and Medical products has managed BIOBASE to be able to offer a large and competitive range of products with the highest quality.
Excellent R&D team of more than 80 researchers.
Experienced after-sales service engineers more than 100 persons.
18 years production experience and national standard factory workship.
Strong QC team to inspect all production stage, from the accessories to the finished products.
ISO9001, ISO13485, ISO14001, SGS, CE, RIQAS, FDA certificate.
