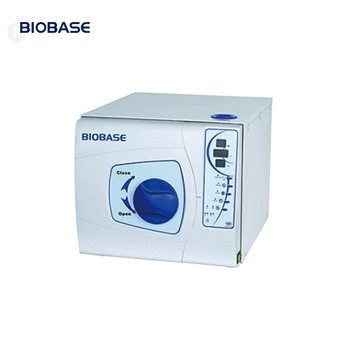

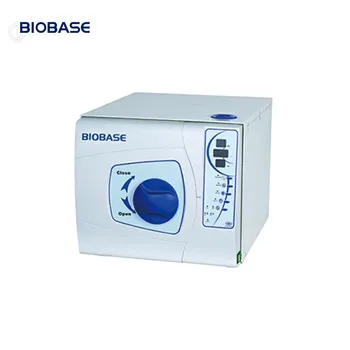

- BIOBASE Table Top Autoclave 16-23L for Clinic
- Product Detail
- Company Profile
Product Discription
Features
1. Build-in open type water tank
The sterilizer adopts easyclean open type water tank which can
support repeated program running if fully injected with water.
2. High-efficiency ultimate vacuum
The sterilizer adopts high-efficiency low noise vacuum system which has excellent effects.
3. Large LCD display for BKM-Z18/24B
The LCD screen can display temperature, pressure, time, operating status, failure warning and other information.
It is convenient for customers to observe the sterilizer running status.
4. Multiple program types
The system has various programs that include: packed items, unpacked items, custom program, rapid program, BD
testing program, vacuum testing program, preheat program and drying program.

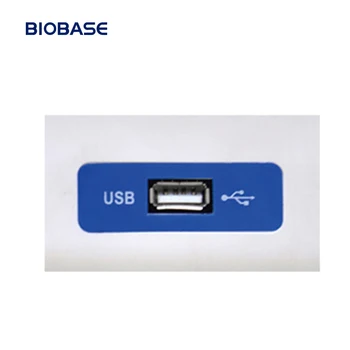

5. Standard USB port for BKM-Z18/24B
Users can store the sterilization data with USB disk.
6. Optional mini printer can be attached to record the process of sterilization.
Technical Parameters
|
Model |
BKM-Z12B |
BKM-Z16B |
BKM-Z18B |
BKM-Z24B |
|
Capacity |
12L |
16L |
18L |
24L |
|
Sterilization Class |
Class B (according to EN 13060 standard) |
|||
|
Sterilization Temp. |
121℃,134℃ |
|||
|
Special Program |
HIV, HBV long-sterilization program |
|||
|
Drying System |
Vacuum drying system |
|||
|
Display |
LED display |
LCD display |
||
|
Testing System |
B&D Test Vacuum Test Helix Test |
|||
|
Control Precision |
Temperature: 1℃ Pressure: 0.1bar |
|||
|
Sterilization Data |
Optional Mini printer Standard USB port for BKM-Z18/24B |
|||
|
Safety System |
Hand lock door Pressure lock system Relief valve in case of over pressure Pressure or temperature over load protection Alarm for system failure, finish reminding, water level warning |
|||
|
Water Supply System |
Build-in water tank, easy to clean |
|||
|
Water tank capacity |
4L |
|||
|
Water Consumption |
0.16L~0.18L in one cycle |
|||
|

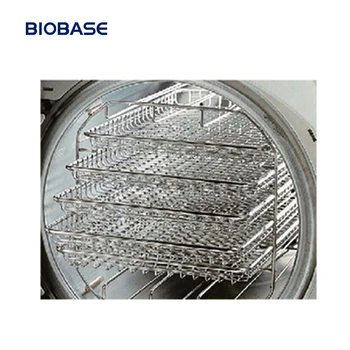

Tray Holder |
3 pcs SS trays on SS shelf |
|||
|
Chamber |
Medical stainless steel 304 unibody structure Max working pressure:2.3bar Min working pressure: -0.9bar Max temperature: 145℃ |
|||
|
Ambient Temp. |
5~40℃ |
|||
|
Noise |
<50dB |
|||
|
Power Supply |
110/220V±10%, 60/50Hz |
|||
|
Power Consumption |
1400W |
1800W |
1750W |
1850W |
|
Chamber Size(mm) |
φ192*340 |
φ240*360 |
φ247*360 |
φ247*470 |
|
External Size(mm) |
560*450*400 |
445*450*395 |
600*495*410 |
700*495*410 |
|
Packing Size(mm) |
660*525*495 |
670*550*500 |
720*550*560 |
760*550*560 |
|
Gross Weight(kg) |
48 |
52 |
5 |
60 |
-
