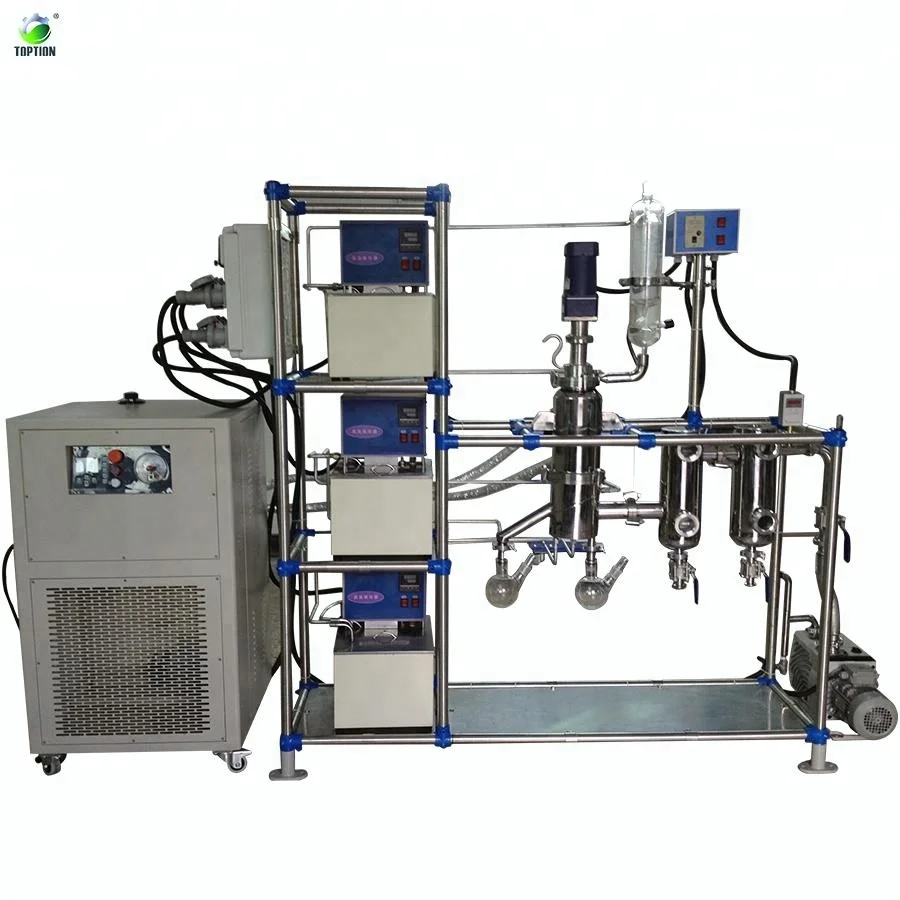

Oil Extraction Machine Short-range Molecular Distillation System
The Technical Specification of MDS-6A short path distillation:
|
Type of molecular distillation |
MDS-6A |
|
Maximum distillation temperature |
300 °C |
|
Minimal achievable operating pressure (depending on product) |
< 0.001mbar with rotary vane pump and oil diffusion vacuum pump. |
|
Throughput (depending on product) |
1 – 3 kg/h |
|
Evaporation surface |
0.06 m² |
|
Surface of internal condenser |
0.1 m² |
|
Wiped film system |
Scraper type film scraping rotor |
|
Maximum viscosity of product can be processed |
Under operating temperature: 5000 centipoise. |

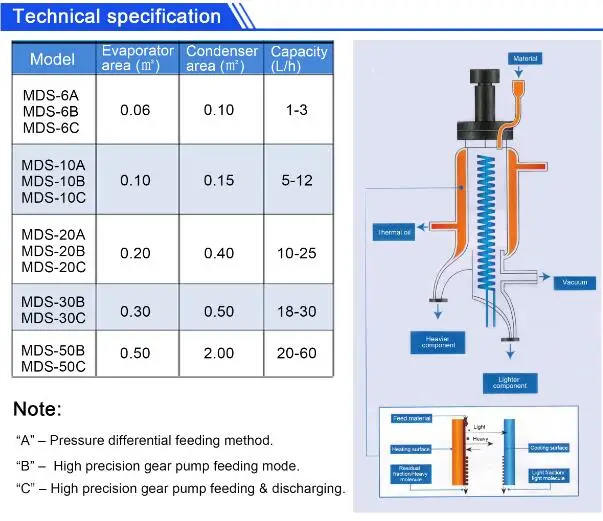

The Technical Specification of short path distillation:
Packaging
Any inquire, please feel free to contact me by any of bellowing ways:
E-mail:windy at toption-china.com
Skype: mswindycheung
what's app/mobile: 0086 18291838761
-
Toption Company professional Lab solution provider ,mainly manufacture for glass reactor, stainless steel reactor, photochemical reactor, rotary evaporator, short-path molecular distillation, labglassware, freeze dryer , spray dryer, ultrasonic cleaner, ultrasonic homogenizer, and also deal kinds of oven & Incubator, Centrifuge, Autoclave, Shaker, Stirrer, Freezer,Fume Hood, Laminar Flow Cabinet, etc.
