5 Inch Color TFT Touch screen with adjustable brightness
- Build-in rechargeable Lithium battery for long-term monitoring
- Adjustable audible and visual alarms, and sensor off alarm
- Powerful data storage capacity, power-off data protection
- Sync with PC-based Software via USB port, accurate analysis systems, Print report, support print preview,
- Option Bluetooth and App for smart devices
Capnography Measuring Data
- Option Bluetooth thermal printer
EtCO2/CO2 Specifications
Range: 0-150mmHg,
Accuracy: ±2mmHg when 0-5% ±10%(reading) when > 5%
Update: Once every breath
Trend length: 24hours
Respiration Rate
Range: 0 -120 rpm
Accuracy: maximum ±1 %(reading)

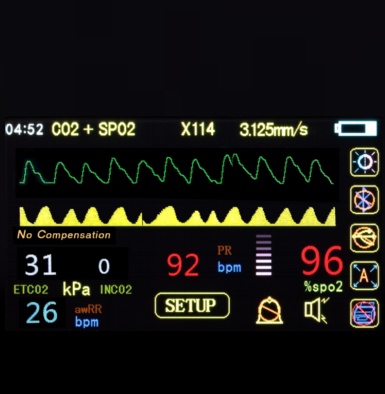

- Clock-Display real-time system time
- displaying waveform : CO2 waveform,SPO2 waveform and CO2+Spo2
- CO2 maximum range : ×50、×76、×100、×114
- Scan speed : 3.125,6.25,12.5,25mm/s
- Battery capacity-Display the remaining battery capacity which has four grades in all and it is detected every second
- SPO2 waveform
- Co2 waveform
- Display the prompt of No Compensation(the SETUP of Compensation Parameter)
- ETCO2 Result
- ETCO2 Unit : mmHg, kPa and %
- Respiration Rate Results
- awRR: Air Way Respiration Rate
- Display the result of INCO2
- Display the result of Pulse Rate
- Compensation Parameter setting
|
|
