Uniqsis Ltd: Universal UV-Visible Detector for Flow Chemistry

Hits:626   Date: 4/6/2022

The Flow-UV™ from Uniqsis is a universal in-line UV-Visible detector that sets a new standard for real time monitoring of continuous flow applications.

The compact, high-resolution Flow-UV™ CCD array detector does not require calibration or routine servicing. In contrast to conventional Deuterium UV lamps, the Xenon flash lamp source used in the Flow-UV™ has a lifetime of up to 10 years. Flow-UV™ is extremely easy-to-use.

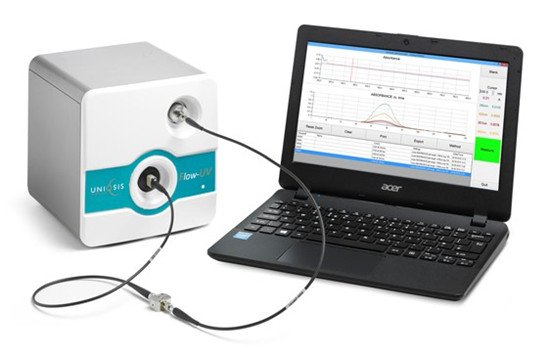

Caption:  Flow-UV™ detector


Having set up and saved a method using the Flow-UV™ control software, pressing a single button is all that is required to start acquisition.

To assure linearity of response, Flow-UV™ allows you to select up to 5 wavelengths over which to monitor a reaction thereby ensuring detector saturation is avoided. Absorbance is plotted against time using the system control software. The control software may be configured to automatically record a background spectrum at the beginning of each experiment.

Fibre optic waveguides connect a choice of Flow-UV™ high pressure flow cells to the source and detector thereby permitting the flow cell to be positioned virtually anywhere in the flow path. The flow cell uses a short length of PFA reactor tubing and is therefore not restricted to being located after the outlet back pressure regulator in the low-pressure region of the flow path where outgassing could be problematic.

For further information on the Flow-UV™ detector please visit https://www.uniqsis.com/paProductsDetail.aspx?ID=Flow-UV or contact Uniqsis on +44-845-864-7747 / info@uniqsis.com.

Since 2007, Uniqsis has specialised in the design and supply of mesoscale continuous flow chemistry systems for a wide range of applications in chemical and pharmaceutical research. The company’s aim is to make flow chemistry easily accessible to both novices and experienced users.
