Uniqsis Ltd: High Intensity LED Module for Photochemical Flow Applications

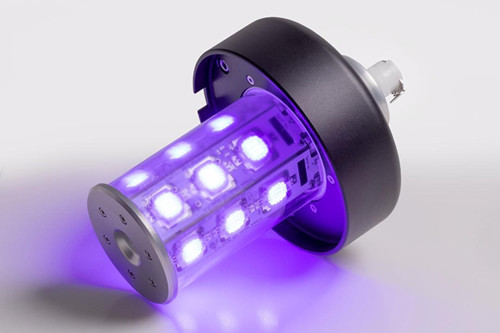

Borealis™ from Uniqsis is a new high intensity LED lamp unit, available in a range of fixed wavelengths (370, 410, 440, 460 and 520nm), that converts their Cold Coil™ standalone reactor module into a flow reactor for photochemical applications.



Both the Borealis™ LED lamp and the Cold Coil™ reactor modules require liquid cooling from either a piped water supply or a closed loop recirculator.


Fitted with a safety interlock, to prevent accidental exposure to high intensity light, the LED lamps are powered by a programable power supply that automatically detects the wavelength of the Borealis™ LED module and adjusts the output characteristics accordingly. A temperature sensor and safety cut-out are fitted to protect the LEDs from overheating. An Inert gas purge input is provided for low temperature use.

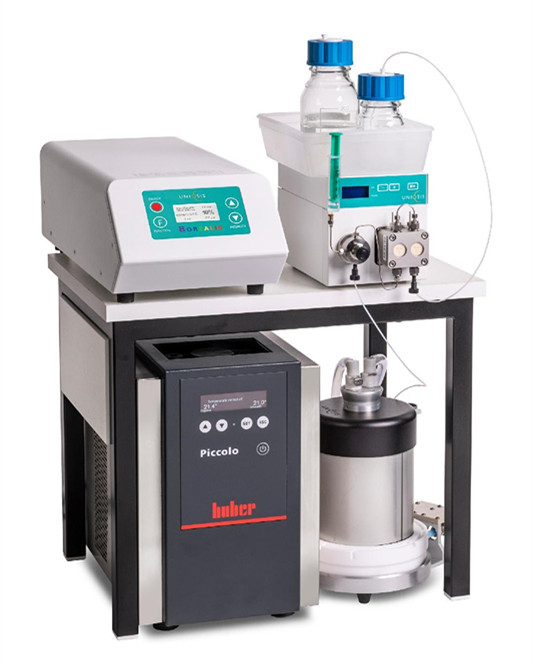

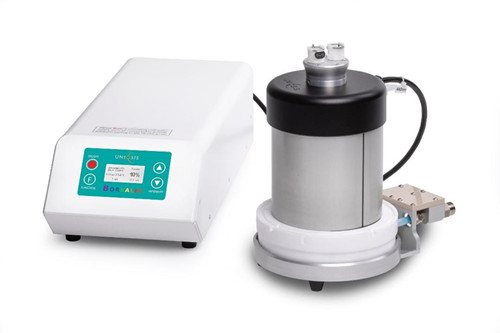

To operate as a turn-key photochemical flow reactor system - a coil reactor is inserted inside the Cold Coil™ reactor module and clamped in place using the external adjuster. The Borealis™ LED lamp unit is then inserted into the coil reactor and connected to the programmable power supply.

The coil reactor temperature is controlled by connecting the Cold Coil to a either a cold-water supply (for reactions close to room temperature), or preferably to a high precision thermoregulation system**.


For further information on the Borealis™ high intensity LED lamp unit and how it can convert a Cold Coil™ reactor module into a flow reactor for photochemical applications please visithttps://www.uniqsis.com/paProductsDetail.aspx?ID=Borealis or contact Uniqsis on +44-845-864-7747/ info@uniqsis.com.

Since 2007, Uniqsis has specialised in the design and supply of mesoscale continuous flow chemistry systems for a wide range of applications in chemical and pharmaceutical research. The company’s aim is to make flow chemistry easily accessible to both novices and experienced users.

---------------------
