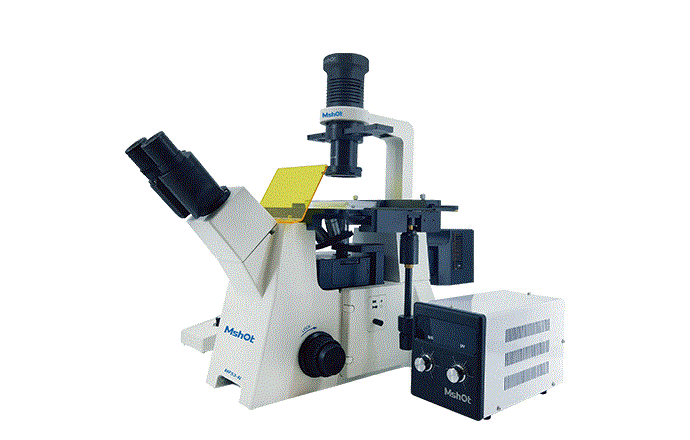

MF53-N is a high end inverted fluorescence microscope close to research level developed by Mshot, performance equivalent with Olympus CKX41. The microscope adopts excellent quality Infinity Independent Achromatic Optical System to make sure better fluorescence imaging. Support phase contrast observation, bright field and fluorescence application. MF53-N inverted fluorescent microscope is ideal for live cell laboratory microscopy imaging.

5 cube/6 cube fluorescence module

It is convenience to exchange filter cubes in turret flfluorescence module, satisfy observation of most fluorescence fluorophores.

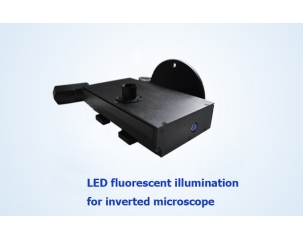

Fluorescence illumination system

Long working life broad-spectrum LED light source in high power offers enough and even brightness, instant on and off without preheating.

Bright field

Take use of LED lighting in high contrast and low radiatio, pre-adjusting optical light center, long working life and easy to use.

Fluorescence

Workbale for UV，V，B，G，Y，R colors fluorescence and DAPI，FITC，TRITC and Alexa Fluor series fluorophores and Cy3.Applied to CTC, FRET, cellular immunity and related area.

Phase contrast

Pull-push design is easy understanding to choose matched phase contrast plate. No need adjust.

Semi-apochromatic fluorescence objectives

Semi-apochromatic fluorescence objectives in high numerical aperture has high clarity and flluorescence transmission offers sharp image both for bright field and fluorescence.

Inverted fluorescence microscope MF53-N

Observation	Binocular observation tube, 45°inclined, pupil distance adjust range 50-75mm, diopter adjustable
	0%/100% light pass for digital camera or eyepiece
Eyepieces	WF10X/23 plan eyepiece, high eyepoint
	Centering telescope
Objectives	Infinite long working distance plan achromatic: LWDPlan 4X/0.1
	Infinite long working distance plan achromatic: Plan10X/0.25, working distance 4.1mm
	Infinite long working distance plan achromatic: Plan 40X/0.58, working distance 2.5mm
	Infinite long working distance plan achromatic phase contrast: Plan10X/0.25 PH, working distance 4.1mm
	Infinite long working distance plan achromatic phase contrast: Plan20X/0.45 PH, working distance 5.0mm
	Optional objectives	Long working distance semi-apochromats fluorescence objective: Plan Fluor 4X/0.13 WD:18.5mm
		Long working distance semi-apochromats fluorescence objective: Plan Fluor 10X/0.3 WD:7.1mm
		Long working distance semi-apochromats fluorescence objective: Plan Fluor 20X/0.45 WD:5.9mm
		Long working distance semi-apochromats fluorescence objective: Plan Fluor 40X/0.65 WD:1.6mm
Focus system	Coaxial coarse and fine with limit and locking devices, low coaxial focus adjusting handle,
	Minimum adjustment gradations: 1 µm
Nosepiece	Quintuple revolving nosepiece with bearing inner location and anti-fungus device
Stage	Fixed stage 240mmX260mm; with low-positioned X/Y coaxial control knob, travel distance 135mmX85mm
	Water drop slide holder（Φ118mm）
	Multif-unction slide holder（76mmX26mm, Φ54mm)
	Optional micro slide	Multi-function slide holder (Φ35mm)
		Multi-function slide holder (Φ90mm)
Epi-illuminating fluorescence system	Broad-spectrum high power LED light source MG100
	Digital mercury light source power box AC100V or 220V
	Quintuple / Sextuple reflected fluorescence illuminator with iris field diaphragm and aperture diaphragm
	Excitation filter units	Filter wavelength
	UV (U)	EX:330-380nm,DM:400nm,EM:420nmLP
	Blue (B)	EX:460-490nm,DM:500nm,EM:510nmLP
	Green (G)	EX:510-550m,DM:570nm,EM:590nmLP
Condenser	Long working distance condenser 72mm, NA 0.30 with triple phase contrast slider
Transmitted illumination system	9W warm LED brightness contentiously adjustment
	LED rotary brightness control knob
Camera adapter	0.75X C-mount adapter
