1, About ExionLC™ 100 (HPLC)

Designed specifically for use with our mass spectrometers, our ExionLC systems provide speed, sensitivity, resolution, and reliability for your routine or complex LC-MS/MS analysis.

An all-in-one platform for maximum ease of use allowing your lab to quickly take advantage of ultimate sample throughput, advanced method accuracy and reliability.

2, Specifications

Feature	ExionLC 100 System
Dimensions (W x H x D)	16" x 24" x 28"/41.0 cm x 50.0 cm x 60.5 cm
Weight	128 lbs/58 kgs
Power	100-240 VAC
Flow Rate Range	0.0001 to 5.0000 mL/min (up to 10.0 mL/min. at 3190 psi)
Maximum Pressure	6,387 psi
Gradient Delay Volume	≤ 650 µL
Flow Rate Precision	≤0.06% RSD
Flow Rate Accuracy	±1%
Sample Capacity	4 Trays, Standard or deep 96-well & 216 x 1.5 mL vials
Column Oven	+4-85°C (Fan forced air circulation)
Injection Volume Range	0.1 to 100.0 µL in 0.1 µL steps
Injection Volume Precision	≤1% RSD (0.5 to 0.9 µL) ≤0.5% RSD (1.0 to 1.9 µL) ≤0.2% RSD (2.0 to 4.9 µL)
Carryover	Less than 0.005% (50 ppm)
Cycle Time	< 15 sec.

3, Features

1> For research use only. Not for use in diagnostic procedures.

2> LC for MS, without the complexity

The versatility of LC-MS is indisputable. However, what if you simply want to feed samples in and get results out minus the unnecessary overhead of more complex systems? The entry-level ExionLC 100 gives you a simple, reliable and cost-effective HPLC designed for the routine LC-MS laboratory. The system comes completely pre-plumbed and ready to go. Key system features include:

1) Easy to use touch screen for local instrument control

2) Large sample capacity handles large sample sets

3) Applications flexibility from quaternary pump

4) Convenience of integrated degasser

5) Spill-containing solvent tray for safety compliance

2> Easy to Implement, Easy to Use

The ExionLC 100 is the perfect system for the customer who needs a general purpose, robust HPLC with low carryover and the ability to process large sample sets without interruption. Designed for the routine LC-MS laboratory, this easy-to-use, fully integrated HPLC system is the ideal complement to your SCIEX 4500 Triple Quad™ or QTRAP® MS. What is more, is your lab can quickly implement new methods with world-class accuracy and reliability using the industry-proven Analyst® Software.

3> Flexibility to Accommodate Routine Workflows

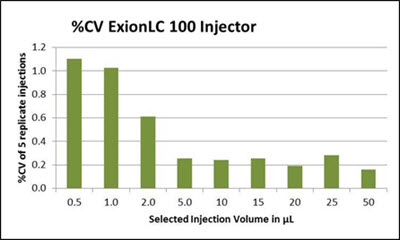

Typical injection %CV of less than 0.4%

Easy to use yet powerfully reliable, the ExionLC 100 comes with a pressure limit of 440 bar (6300 PSI), giving you the flexibility to run all of your traditional chromatographic workflows. A robust, quaternary solvent delivery system accommodates a wide range of gradient methods at flow rates up to 10 mL/min. Moreover, with a sample capacity (216 vials or 4 microtiter plates) that is almost double that of typical entry level HPLC systems. The flow-through injection system with 100 μL sample loop delivers reproducible results on injections down to 0.1 μL, with minimal carryover.Completing the system is an integral column oven that controls column temperature up to 60℃ for improved chromatographic separations and retention time stability.

4> Reliable Performance in an Entry-level System

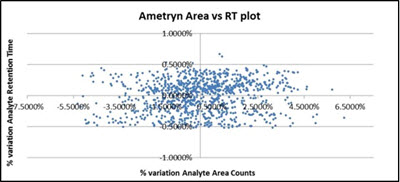

1000 samples injected continuously over five days

A budget conscious HPLC is only as beneficial as it is reliable. The ExionLC 100 can run the most demanding and time-consuming assays and run continuously for as long as you need. A few dozen, a few hundred, even a thousand injections exhibit minimal variation in either retention time or area counts.

The ExionLC 100's ease-of-use, flexibility, and reliability make it well suited for the routine LC-MS workflows such as Food and Environmental testing.

SCIEX ExionLC 100, the complete, simplified solution to get from samples-in to results-out fast.
