Model |
VZLEN-5MP-8 |
VZLEN -5MP-12 |
VZLEN -5MP-16 |
VZLEN-5MP-25 |
VZLEN -5MP-35 |
VZLEN -5MP-50 |
|
Focal Length |
8mm |
12mm |
16mm |
25mm |
35mm |
50mm |
|
FNO |
F=1.4 |
F=1.4 |
F=1.4 |
F=1.4 |
F=1.4 |
F=1.4 |
|
Mount |
C |
C |
C |
C |
C |
C |
|
Aperture Type |
手动 |
手动 |
手动 |
手动 |
手动 |
手动 |
|
Picture Size |
2/3 |
2/3 |
2/3 |
2/3 |
2/3 |
2/3 |
|
Angle of View |
67°*56.3°*43.7° |
49.5°*40.8°*30.8° |
37.6°*30.3°*23° |
24.8°*20°*15° |
17.5°*13.9°*10.4° |
13°*10.5°*7.9° |
|
Distortion(TV) |
＜1% |
＜0.1% |
＜0.1% |
＜0.2% |
＜0.8% |
＜0.1% |
|
Minimum Object Distance |
0.1m |
0.1m |
0.1m |
0.1m |
0.2m |
0.1m |
|
Back focus |
10.74mm in air |
12.7mm in air |
12.7mm in air |
12.25mm in air |
9.2mm in air |
12.25mm in air |
|
Filter size |
M37x0.5 |
M30.5x0.5 |
M30.5x0.5 |
M30.5x0.5 |
M37x0.5 |
M37x0.5 |
|
Pixel |
5.0Mega |
5.0Mega |
5.0Mega |
5.0Mega |
5.0Mega |
5.0Mega |
|
Temperature |
-20℃~+60℃ |
-20℃~+60℃ |
-20℃~+60℃ |
-20℃~+60℃ |
-20℃~+60℃ |
-20℃~+60℃ |
|
weight（g） |
130 |
80 |
80 |
80 |
125 |
150 |
-
Guangzhou Vezu Technology Co., Ltd.( hereinafter called VezuTech), is a high-tech enterprises, specialized in the research and development of vision applications, aiming to provide customers with complete and high-standard visual solutions. Formed by a group of people with years engaged in microscopic imaging, machine vision, and large automation equipment research and development, VezuTech is able to offer support to life science imaging, automatic control, industrial measurement, electronices, software, pattern recognition, and many other important fields. Adhering to the " Autonomous Innovation and Pursuit of Excellence " business philosophy, VezuTech has never stopped developing new technology and has brought the latest research results from the lab to the market, and then into productivity, to meet customers' increasingly complex visual needs.

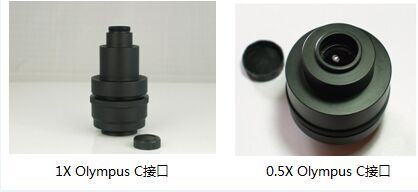

Our main productions including microscope cameras, industrial cameras, scientific cameras, cooled ccd cameras, microscope and other automatic equipments. Adopted Aptina/Sony/Kodak sensor, these cameras are ideal for bright/dark field observation, fluorescence microscopy, weak light, pathology, metallurgical imaging, material analysis, etc. Now we have offer 3 interfaces: USB2.0, USB3.0 and GigE interface. Some have supported multi-cameras used at the same time. The matched imaging software, VIMAGE LITE/PRO, has offered user-friendly solutions for microscopy and machine vision. So far we already have developed Auto-focus, Image Stitching, Multi-focus, Auto-count, Fluorescence, Measurement, Recording, and other functions. Besides these, we also offer c-mount adapters, stage meters and other accessories for users.
Located in Guangzhou, VezuTech is willing to make contribution to further win-win cooperation with customers. In order to meet the demand of diversification, VezuTech has set up a Product Customization R&D Team, who can help develop and produce reliable and user-friendly interactive visual products according to the customer's specific needs within a fixed time, which will make you play your strong maket and customer resources advantage and gain the maximum benefit from the custom scheme.
We are looking forward to your sincere cooperation!
