1L New Design Laboratory Vacuum Distillation Mini Rotary Evaporator with Water Bath R-1001-VN
Brief Introduction of Rotary Evaporator:
The equipment for purification distillation test rotates and shapes a thin film in negative pressure condition by heating, evaporates efficiently, and then condenses and recollects solvent to purify and separate. The products can be made into system devices with Multi-purpose Circulating Water Vacuum Pump, Diaphragm Vacuum Pump, Low Temperature Circulating(vacuum)Pump, Circulating Cooler, Constant Temperature Ccirculator, Low Temperature Ccooling Lliquid Circulating Pump.
Features of Rotary Evaporator:
♦ Double sealing with Teflon(PTFE) and fluorous rubber to ensure high vacuum degree.
♦ The air extraction nozzle of condenser is set down, and it is safer after connection with vacuum pipe.
♦ Building block design is easily to be extended.
♦ Easy operation of lifting, move up and down smoothly and easy to lock.
♦ Dedicated electric machinery, worm and gear drive steadily.
♦ Speed display ,operate visually and easily
♦ The temperature adopts PID control, which ensures accurate temperature control.
♦ The separation of bath and the mainframe makes configure flexible.
Technical Data:
|
Model |
R-1001-VN |
R-1001-LN |
|
Rotary speed (Rpm) |
10~180 |
|
|
Evaporating speed(ml/min) |
20 |
|
|
Achievable vacuum(Pa) |
399.9 (below 3mmHg) |
|
|
Temperature range(°C) |
Room temp~100 |
|
|
Temperature display |
Keypad input Digital display |
|
|
Speed-setting |
Knob setting ,Digital display |
|
|
Safety functions |
Insurance |
|
|
Functions of lifting table |
Weight balancing Gliding elevating+ manual lifting |
|
|
Rotary motor(W) |
25 |
|
|
Heater wattage(KW) |
1.5 |
|
|
Condenser model |
Vertical type water refrigerating |
Lean type water refrigerating |
|
Rotary bottle(L) |
0.5~2 |
|
|
Collecting bottle(L) |
1 |
|
|
Vacuum sealing |
Double sealing rings made of Teflon+ Vinton materials |
|
|
Water Bath size and volume(L) |
φ260×140·7.4 |
|
|
Elevating stroke(mm) |
100+150 |
|
|
Ambient temperature(°C) |
5~35 |
|
|
Dimensions (mm) |
560L×320W×660H |
750L×320W×540H |
|
Weight(kg) |
9.5 |
|
|
PowerSupply(V/Hz) |
220/50 |
|
Recommended Total System:

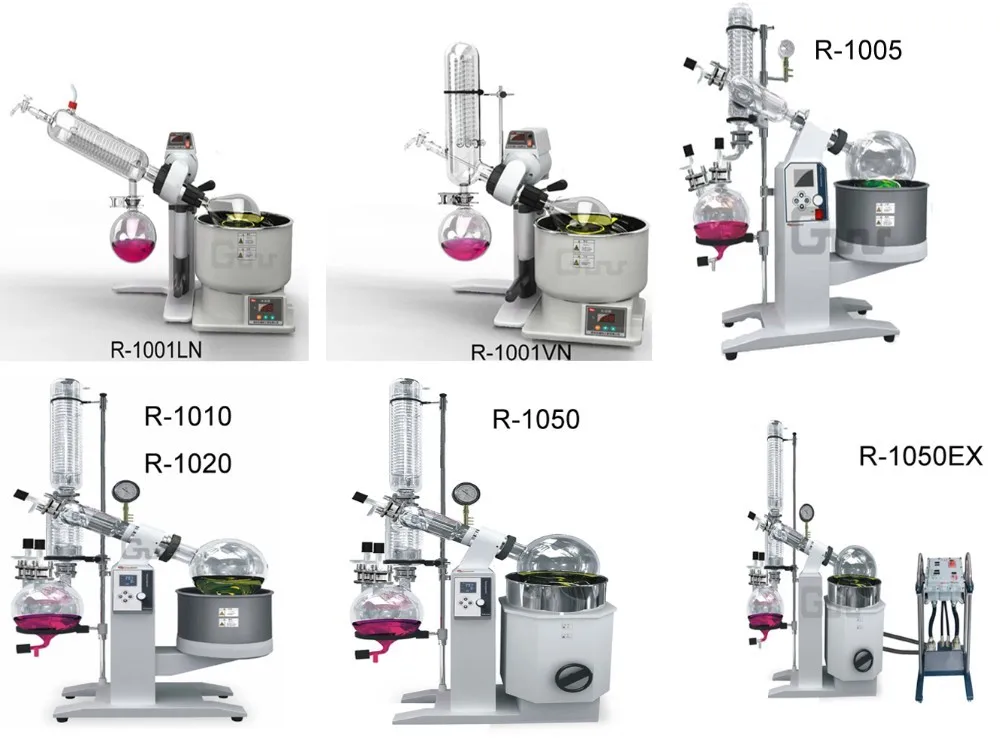

Other Models:
ISO 9001: 2008 Certificate:
Wooden Package:
Rotary Evaporator Workshop:
Used in Universities:
Our exhibitions:
Zhengzhou Great Wall
-
Zhengzhou Sykes Biotechnology Co., Ltd., a professional manufacturer of laboratory instruments, is a technological innovative enterprise integrated with researching, developing, manufacturing and sales. Professional R&D team always provides customers with perfect solutions. Products are widely used in chemical, biological, pharmaceutical industries, new materials, new energy, electronics, metallurgy, petroleum, mechanics and other fields. Main products include rotary evaporator, glass reactor, short path distillation system, vacuum pump, recirculating chiller, hermetic refrigerated and heating circulator, thermostatic bath circulator, heating bath circulator, magnetic stirrer, electric heating mantle, etc. Zhengzhou Sykes always speaks with strength and high-quality products. Our products have been exported to North America, Europe, Asia and other regions. With a professional R&D team, high quality products, competitive price, we believe that we are your best choice. Looking forward to build a long-term cooperative relationship with customers worldwide.
