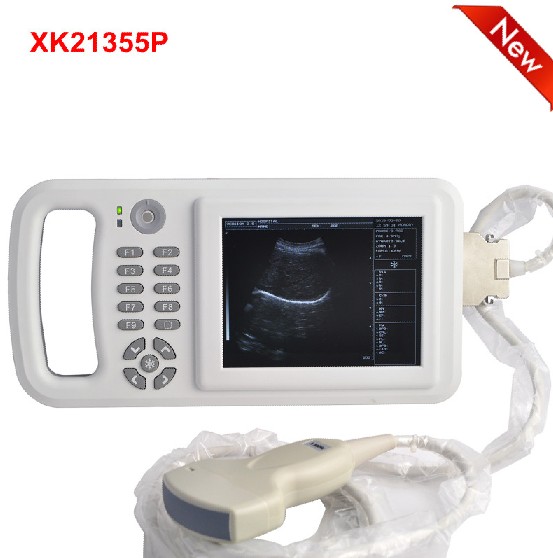

XK21355-P
Digital Palm Ultrasound Scanner
Main Features:
Full digital beam forming technology
6.5 inch TFT LCD
A/DC and LI-battery operated
Light and compact design, simple to use
High quality keyboard and clear image
128 image permanent storage and 256 frames cine loop
USB 2.0 for real-time picture uploading to PC
Probe automatic identification
Net weight: 1.2 Kgs
Dimension: 302×152×40mm
Main Technical Specification:
Scanning Method: Convex, Micro-convex, Linear, Trans-vaginal
·Display Mode: B, B+B, B+M, M, 4B
·Gray Scale: 256 levels
·Monitor: 6.5 inch LCD
·Operation interface: English/Chinese switchable
·Image Procession: DFS, DRF, RDA, VGA/DSC and Image Post Procession
·Image magnification: ×0.8 ×1.0, ×1.2, ×1.5, ×1.8, ×2.0 times
·Image control: left/right, black/white, up/down
·General Measurement: Distance, Circumference/Area, Volume, Heart Rate
·256 frames for cine-memory
·128 image permanent storage
·4 focusing combination selectable
·Characteristic showing in real-time clock, ID, Sex, Age, Hospital name, Focusing Info and Gain (Near, Far, Overall) info.
·8 Segments of TGC adjustment, full gain control
·Puncture function is available under B mode.
Measurement:
General menu: Distance, Area, Volume, Angle, Ellipse
OB : GS, CRL ,BPD ,HC , AC ,FL , Fetus Weight
Heart Menu : Distance , Time , Slope , Rhythm
Standard configuration:
Main unit
Convex array probe
Li-battery
USB
Options:
Linear array probe
Trans-vaginal array probe
Micro-convex array probe
