Rotary Evaporators R Series

Principle:

The equipment for purification distillation test rotates and shapes a thin film in negative pressure condition by heating, evaporates efficiently, and then condenses and recollects solvent to purify and separate.

Brief Introduction :

1. A rotary evaporator (or rotavapor) is a device used in chemical laboratories for the efficient and gentle removal of solvents from samples by evaporation.

2. Large capacity, large diameter rotary evaporator flask, evaporation area, the vacuum water bath, while rotating edge heating, evaporation of the solution diffusion efficiency can be used for biological, pharmaceutical, chemical, food and other small scale areas, Chinese and production.

3. Rotary Evaporators with recycled water multi-use vacuum pumps, diaphragm pumps, low temperature cycle (vacuum) pumps, circulating cooler, constant temperature circulator, low temperature cooling liquid circulating pump and other devices supporting component systems.

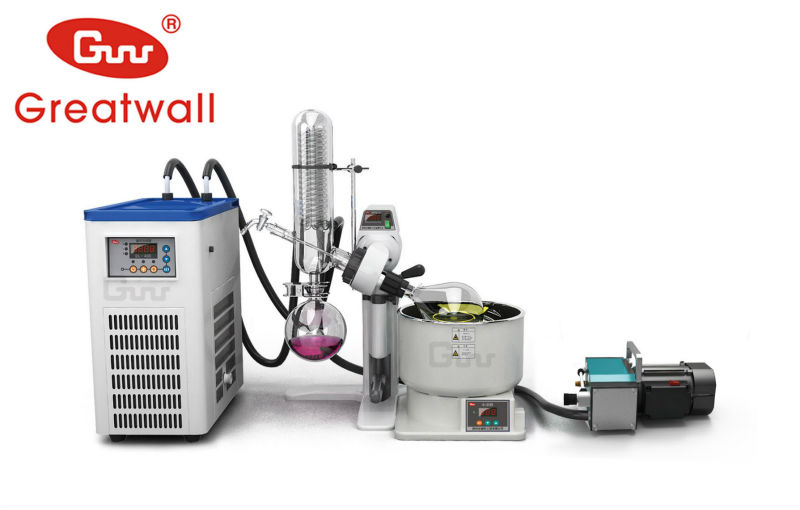

Air-cooled Recyclable Chiller DL-400 + 500ml/1L/2L Rotary Evaporator R-1001-VN + Diaphragm Vacuum Pump MP-201

Refrigeration Circulator DLSB-10/30 + Rotary Evaporator R1005 + Stainless Steel Circulating Water Vacuum Pump SHB-B95A

Features :

1. Teflon (PTFE) and fluorine rubber dual rotating seal, patented technology to ensure high vacuum.

2. the introduction of foreign advanced frequency control system, temperature control system, accurate and reliable.

3. a vacuum switching valve, without affecting the system vacuum distillation of the situation and the solution can be continuously collected.

4. water bath electric lift and manual lift support, easy to use.

5. PTFE discharge valve, corrosion resistance, pollution-free.

6. All glass parts adopts high borosilicate glass 3.3 to ensure the long life.

7. For small rotary evaporator R-1001 Series, the separation of bath and the mainframe makes configure flexible.

Parameters

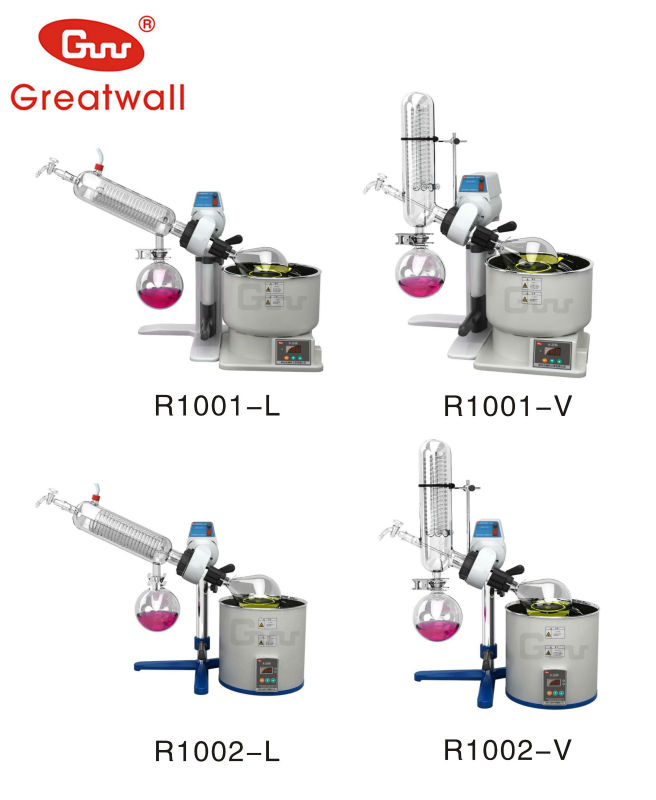

Model	R-1001-VN	R-1001-LN	R-1002-VN	R-1002-LN
Rotary speed(Rpm)	10-180
Evaporating speed(ml/min)	20
Achievable vacuum(Pa)	399.9 (below 3mmHg)
Temperature range(°C)	Room temp-100
Temperature display	Keypad input Digital display
Speed-setting	Knob setting ,Digital display
Safety functions	Insurance
Functions of lifting table	Weight balancing Gliding elevating+ manual lifting		Weight balancing
Rotary motor(W)	25
Heater wattage(KW)	1.5
Condenser model	Vertical type water refrigerating	Lean type water refrigerating	Vertical type water refrigerating	Lean type water refrigerating
Rotary bottle(L)	0.5-2
Collecting bottle(L)	1
Vacuum sealing	Double sealing rings made of Teflon+ Vinton materials
Water Bath size and volume(L)	φ260×140·7.4		φ240×142·6.3
Elevating stroke(mm)	100+150		120
Ambient temperature(°C)	5-35
Dimensions (mm)	560L×320W×660H	750L×320W×540H	560L×320W×660H	750L×320W×540H
Weight (kg)	9.5		8.5
Power Supply(V/Hz)	220/50

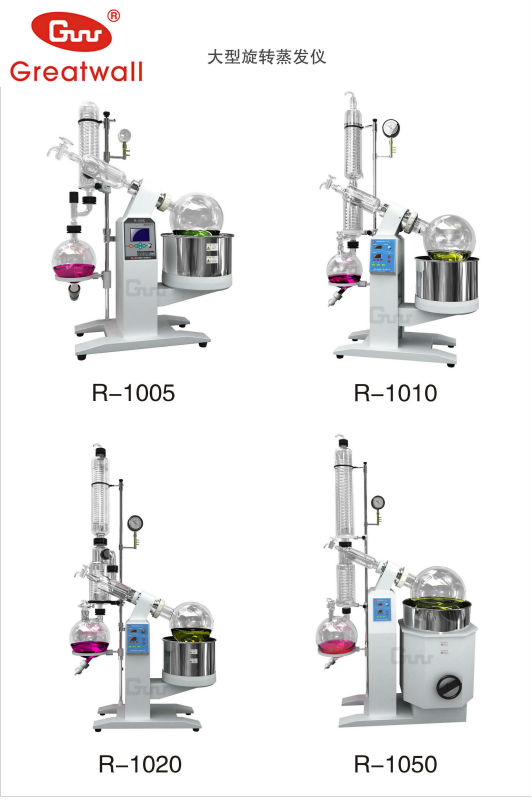

Model		R1005		R1010			R1020		R1050
Rotary Bottle		5L,diameter of flange opening: Φ50mm		10L,diameter of flange opening:Φ95mm			20L, diameter of flange opening:Φ95mm		50L,diameter of flange opening:Φ125mm
Collecting bottle		3L		5L			10L		20L
Speed-regulationj ofmain machine		Digital display, variable frequency, stepless Speed-regulation
Rotary speed of mainMachine		10 to 140r/min,digital display of rotary speed		10 to 130r/min,digital display of rotary speed			10 to 130r/min,digital display of rotary speed		10 to 110r/min,digital display of rotary speed
Rotaring motor (W)		40W AD induction motor,power:40W		90W AD induction motor,power:90W			180W AD induction motor,power:180W		180W AD induction motor,power:180W
Condensing tube		Vertical type water refrigerating		Standing, main+auxiliary cooling and highly effcient3 circulating coldtrap
Heating boiler		12L stainless water bath			20L stainless water bath			35L stainless water bath		75L stainless water bath
Temperature control		Digital display, temperature control,0~99°C
Achievable vacuum		399.9Pa (below 3mmHg)
Evaporating capability		Water≥2L/h Alcohol≥6.5L/h		Water≥3.2L/h Alcohol≥6.5L/h			Water≥5L/h Alcohol≥11L/h		Water≥9L/h Alcohol≥19L/h
Elevating function		Electric elevation		Electric elevation			Electric elevation		Electric plus manual lifting
Elevating stroke		0~150mm		0~160mm			0~190mm		0~230mm
Rated power supply		220V/50Hz					380V/50Hz
Power of power supply		2.2KW		4.8KW			6.3KW		8.3KW
Dimensions (mm)	765L400W1070H		920L550W1700H			1250L600W2100H			1320L770W2340H

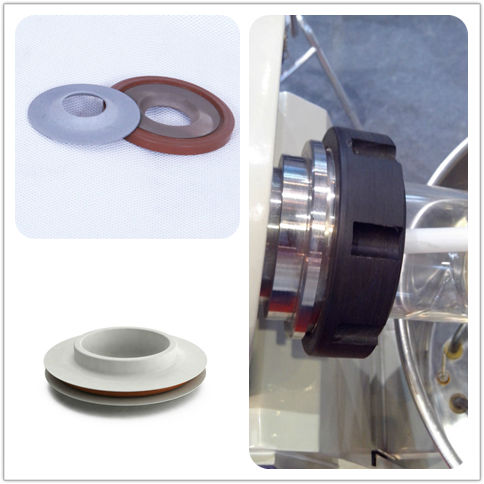

Key Part --- Teflon Sealing Set to ensure high vacuum degree during the experiment:

Application in the Lab

Exhibitions:

Recirculating Cooler DL-400 + 500ml/1L/2L Rotary Evaporator R-1001-VN + Spray Paint Teflon Electric Circulation Aspirator Pump SHB-IIIG

Refrigerated Circulator DLSB-50/30 + 50L Rotavap R1050 + Stainless Steel Electric Circulation Aspirator Pump SHB-B95A

Recyclable Chiller HL-3000 + 20L Rotavap R1020 + Spray Paint Teflon Electric Circulation Aspirator PumpSHB-B95T

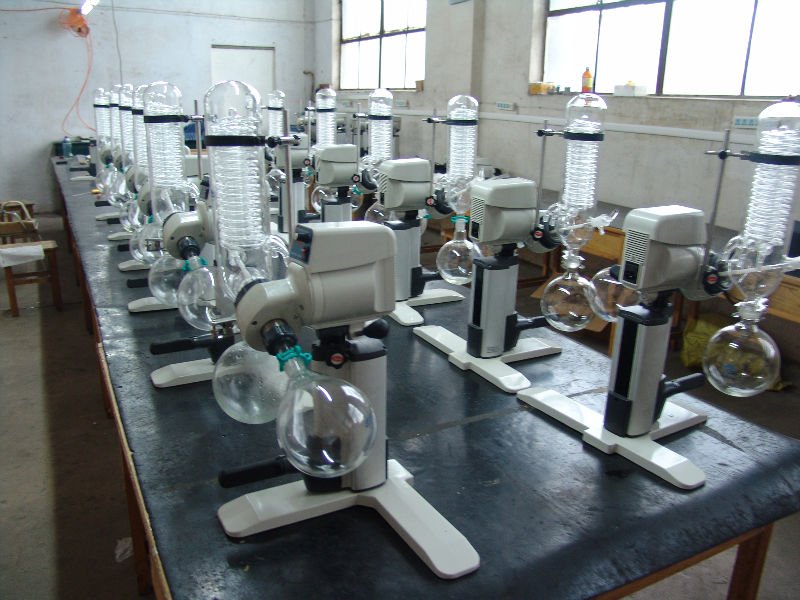

Workshop:

Zhengzhou Great Wall:

When making an inquiry, please tell several aspects as follows:

1. Please tell me your specific requirements of Power Supply of each model, if you are not satisfied with 220V/50Hz or 380V/50Hz.

2.Please tell me which type of plug you want, Standard American Plug or European Plug or others ? We shall supply the suitable plug for you.

3. Please tell me the details of address, then I shall check the accurate freight cost for you.
