Home >Products> Sample Processing >Shakers / Oscillators> ZWY-1102C 170L Economic Orbital Double Layer Shaking Incubator (Heating Only
Sample Processing :  Stirrers / Mixers   Homogenizers / Milling   Shakers / Oscillators   Ultrasonic / Cell Disruption   Pipettors   Other Sample Processing

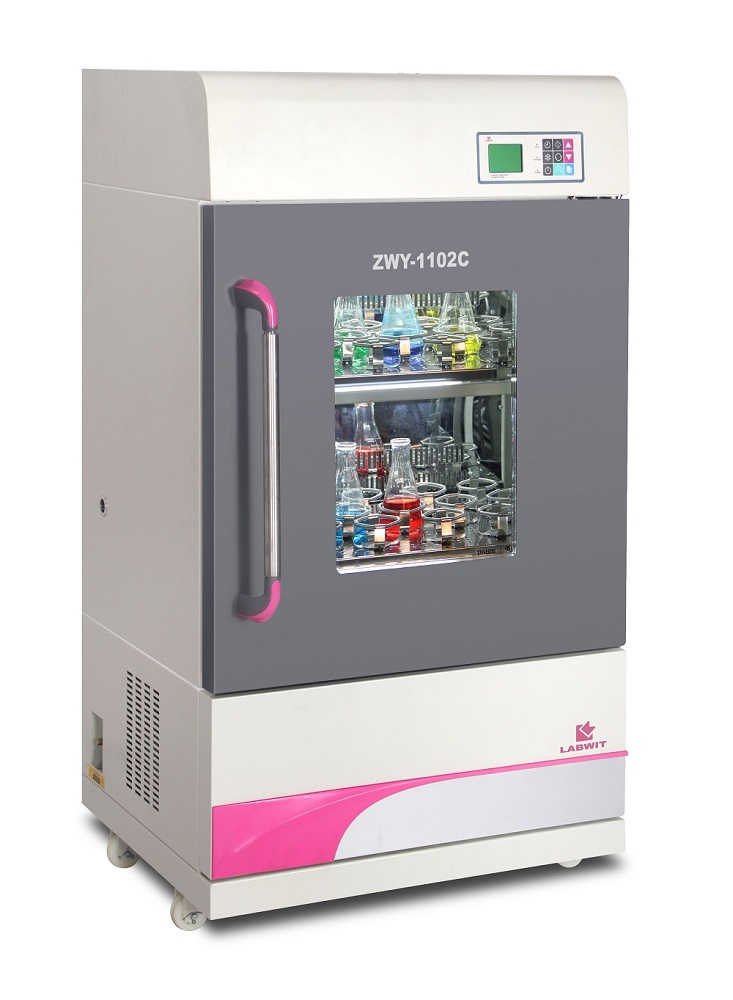

ZWY-1102C 170L Economic Orbital Double Layer Shaking Incubator (Heating Only
ZWY-1102C 170L Economic Orbital Double Layer Shaking Incubator (Heating Only
Place of Origin:
China
Brand:
Shanghai ZHICHENG Analytical Instrument Manufact
Model:
ZWY-1102C
Price:
Hits:
5300
Updated:
11/2/2024
  • Product Detail
  • Company Profile

    Descriptions:

    These LABWIT double layer shaking incubators are specially developed for the modern biological engineering departments; a big capacity of flasks but with small footprint. The units are widely used in germ culture, hybridization, biochemical research, enzyme and cellular tissues. All of these tests require high temperature performance and stabile oscillation frequency.



    These incubators have a smooth compact design. They are very efficient and have an excellent floor space/performance factor. Two trays above each other, double the capacity for smaller flasks, while after removing the top tray, big flasks can also be used on the bottom tray. These unit are particularly ideal for fermentation and pharmacy experiments. While they are also widely used where a big amount of liquid needed to be mixed on a constant temperature.


    Features:

    • Temperature control range from 5℃ above ambient to 60℃.
    • Microprocessor controller with audible and visual alarms maintains precise temperature and speed control.
    • Users friendly control panel allows easy digital setting of time, temperature and speed.
    • Large LCD display presents all actual and (pre)set parameters.
    • Electronic timer, from 0 – 500 hours, automatic stop, audio/ visual alarm.
    • Password protection against unauthorized change of parameters.
    • Audible and visual alarms for over-temperature and set point deviations.
    • Non-volatile memory for set point retention after a power interruption.
    • Large double-fold tempered glass window, together with fluorescent lights provides complete visibility of chamber interior.
    • “Long-Life” brushless AC motor creates a smooth, quiet and uniformed shaking motion.
    • Mirror-finished high quality #304 stainless steel for excellent durability of interiors.
    • Standard shaking frame and standard stainless steel tray included (without clamps).
    • Vertical double trays for big capacity, though small footprint.





















    Specifications:

    Model

    ZWY-1102C

    ZWY-1102

    ZWY-1112B

    ZWF-1112

    Volume (L)

    170

    330

    580

    580

    Shaking Mode

    Orbital

    Reciprocal

    Temperature (°C)

    A+5 to 60

    Temperature Accuracy

    ±0.1℃

    Temperature Uniformity

    ≤±1℃@37℃

    Stroke (mm)

    26

    26

    35

    1 to 50 Stepless Adjustment

    Speed (rpm)

    30-300

    30-240

    Tray (mm) (WxD)

    496x350

    734x458

    970x560

    940x580

    Capacity

    *Glass dimensions may reduce max. capacity

    50 ml

    56

    104

    164

    164

    100 ml

    56

    104

    164

    164

    250 ml

    28

    56

    90

    90

    500 ml

    22

    44

    74

    76

    750 ml

    18

    30

    52

    48

    1000 ml

    -

    24

    36

    44

    Inner dimensions (mm) (WxDxH)

    615x440x640

    845x515x765

    1105x665x775

    1105x665x775

    Exterior dimensions (mm) (WxDxH)

    720x630x1275

    950x710x1370

    1430x800x1660

    1430x800x1660

    Packing dimensions (mm) (WxDxH)

    840x750x1445

    1070x830x1540

    1550x920x1830

    1550x920x1830

    Net/Gross Weight (kg)

    150/175

    225/265

    425/505

    455/535

    Power (W)

    1000

    1050

    1600

    1600

    Electricity

    220-240V AC 50/60 Hz

    Approval

    CE, ISO



    Order Information:



    ZWY-1102C

    ZWY-1102C, 170L, Economic Orbital Double Layer Shaking Incubator A+5-60, 30-300rpm

    ZWY-1102

    ZWY-1102, 330L, Economic Orbital Double Layer Shaking Incubator A+5-60, 30-300rpm

    ZWY-1112B

    ZWY-1112B, 580L, Economic Orbital Double Layer Shaking Incubator A+5-60, 30-300rpm

    ZWF-1112

    ZWF-1112, 580L, Economic Reciprocal Double Layer Shaking Incubator A+5-60, 30-300rpm



    P5001 Frame for ZWY-1102C/2102C/ZWYR-2102C, Stl S/C # P8001 T Clamp, S/S, for 50ml Flask, with Spring Retainer
    P5002 Frame for ZWY-1102/2102/ZWYR-2102, S/C P8002 T Clamp, S/S, for 100ml Flask, with Spring Retainer
    P5003 Frame for ZWY-1112B/2112B/ZWYR-2112B, Stl S/C P8013 T Clamp, S/S, for 150ml Flask, with Spring Retainer
    P6010 Tray for ZWY-1102C/2102C/ZWYR-2102C, S/S※ P8003 T Clamp, S/S, for 250ml Flask, with Spring Retainer
    P6011 Tray for ZWY-1102/2102/ZWYR-2102, S/S P8014 T Clamp, S/S, for 300ml Flask, with Spring Retainer
    P6012 Tray for ZWY-1112B/2112B/ZWYR-2112B, S/S  P8004 T Clamp, S/S, for 500ml Flask, with Spring Retainer
    P6013 Tray for ZWF-1112/2112/ZWFR-2112, S/S  P8005 T Clamp, S/S, for 750ml Flask, with Spring Retainer
    P7011 Universal Tray for ZWY-1102C/2102C/ZWYR-2102C P8006 T Clamp, S/S, for 1000ml Flask, with Spring Retainer
    P7012 Universal Tray for ZWY-1102/2102/ZWYR-2102, Ful Pcs P8007 T Clamp, Spring S/S, for 2000ml Flask, with Spring Retainer
    P7013 Universal Tray for ZWY-1112B/2112B/ZWYR-2112B, Ful Pcs P8008 T Clamp, Spring S/S, for 3000ml Flask, with Spring Retainer
    P7014 Universal Tray for ZWF-1112/2112/ZWFR-2112, Ful Pcs P8009 T Clamp, Spring S/S, for 5000ml Flask, with Spring Retainer
    P7023 Universal Tray for All Dbl Lyr Model, 1/2 Pcs P8010 Tube Rack S/S
    # Stl S/C:Spray Coated Steel  P8011 Tube Rack ABS Plastic
    ※ S/S:  Stainless Steel  P8012 Clamp for 96 Well MicroPlate, S/S
