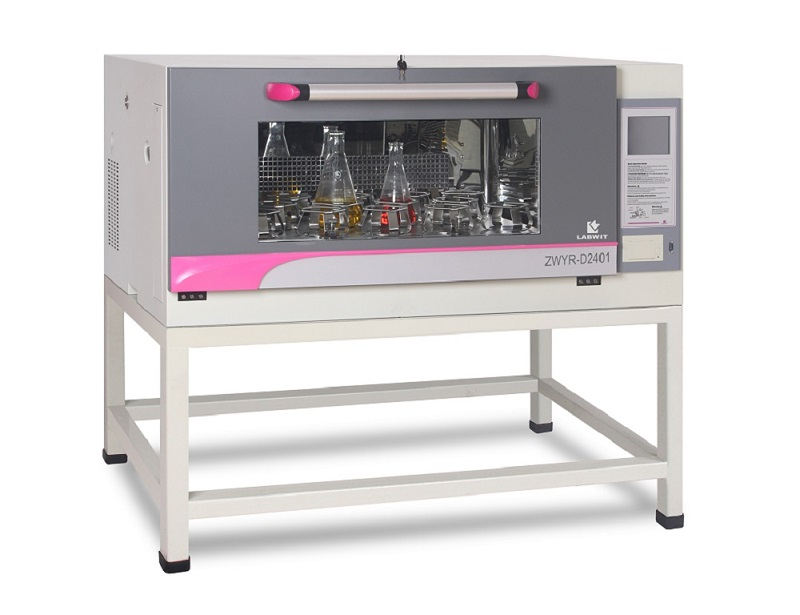

- ZWYR-D2401 190Lx1, Premium Stackable Shaking Incubator, Single, 4-60, 30-300rpm
- Product Detail
- Company Profile
- 5.6'' LCD 640x480 touch screen panel clearly indicates all parameters in one page display.
- Fold-down door with door handle, and dedicated sliding shaking platform provide convenient access to your experiment products. Moreover,
- the top of the casing can be further used as a work area for locating small items of lab equipment etc.
- The incubator casing is made of heavy-gauge cold-rolled steel; together with high graded #304 stainless steel inner chambers with coved corners make it easy to clean with mild detergent.
- The unit can be upgraded with dual colour LED lighting control kit, each colour of lighting can be independently controlled and programmed to simulate day/night cycles, perfect for plant cell culture.
- Heavy-duty, eccentric drive mechanism allows extended speed ranges from 30 to 300 RPM, ±1 RPM with minimized vibration, even when shakers are stacked of three high.
Robust brushless AC motor enables shaking motion quiet and smooth, even when unit is operating at top speed with maximum workload.- Non-volatile memory saves settings during a power outage and automatically restarts the unit after power is restored.
- Predrilled platform and built-in printer as standard configuration, flask clamps excluded.
Description:
LABWIT now can offer new space-saving incubator shakers. This ZWYR- Series shaker (touch screen) can be stacked up to three units high, providing laboratory professionals tripled culture capacity, while still only occupying the same “footprint” of a single shaker. All models feature an insulated, fold-down door with double-layer glass window for high visibility. On all refrigerating models, microprocessor controller provides unmatched versatility by enable users to create personalized program (with up to 9 segments, with cycling) to automate changes to function parameters.
Features:
Specification:
| Model | ZWYR-D2401 | ZWYR-D2402 | ZWYR-D2403 |
| Control | P.I.D Microprocessor | ||
| Control Mode | Fix Value or Program (up to 9 Segments) | ||
| Control Panel | LCD Touch Screen | ||
| Air Convection | Forced | ||
| Shaking Mode | Orbit | ||
| Volume / Compartment (L) | 190L | ||
| Ambient Temperature(ºC) | 10-35 | ||
| Shaking Speed (rpm) | 30-300 | ||
| Stroke ( mm) | Ø1-50 Stepless Adjustable | ||
| Temperature Range (ºC) | 4-60 | ||
| Temperature Accuracy (ºC) | 0.1 | ||
| Temperature Uniformity (ºC) | ±1ºC@37℃ | ||
| Timer | 1 to 9999 mins | ||
| Tray (mm) (WxD) | 800x430 | ||
| Tray Included | 1 | 2 | 3 |
| Inner Dimensions (mm) (WxDxH) | 920x532x395 | ||
| Exterior Dimensions (mm) (WxDxH) | 1300x950x725 | 1300x950x1310 | 1300x950x1890 |
| Packing Dimensions (mm) (WxDxH) | 1420x1070x850 | 1420x1070x1480 | 1420x1070x2060 |
| Net/Gross Weight (kg) | 250/290 | 430/500 | 630/730 |
| Power (W) | 1200 | 2400 (1200*2) | 3600 (1200*3) |
| Electricity | 220-240V AC 50/60 Hz | ||
| Approval | CE, ISO | ||
| Shortcut Settings | Control Mode, Constant Temperature, Automatic Cooling Control, Power-off Recovery Switch, Door Switch, Print Switch | ||
| Security | Over-temperature Protection, Compressor Overload Protection, Electrical Leakage Protection | ||
| Additional | Built-in Printer, RS485 COM Kit (Option), LED Lighting Control Kit (Option), | ||
Flask Clamps Configurations
| Capacity | 50ml | 100ml | 250ml | 500ml | 750ml | 1000ml | 2000ml |
| ZWYR-D2401 | 50 | 50 | 32 | 26 | 20 | 14 | 8 |
| ZWYR-D2402 | 100 | 100 | 64 | 52 | 40 | 28 | 16 |
| ZWYR-D2403 | 150 | 150 | 96 | 78 | 60 | 42 | 24 |
Ordering Information
| ZWYR-D2401 | ZWYR-D2401, 190Lx1, Pre Stackable Shaking Incubator, Single, 4-60, 30-300rpm |
| ZWYR-D2402 | ZWYR-D2402, 190Lx2, Pre Stackable Shaking Incubator, Double, 4-60, 30-300rpm |
| ZWYR-D2403 | ZWYR-D2403, 190Lx3, Pre Stackable Shaking Incubator, Triple, 4-60, 30-300rpm |
| P5010 | Base Stand for ZWYR-D2401 |
| P5011 | LED Lighting Panel and Control Kit, For ZWYR-D2401/D2402/D2403 |
| P8010 | Tube Rack S/S |
| P8011 | Tube Rack ABS Plastic |
| P8012 | Clamp for 96 Well Plate, S/S |
| P8021 | O Clamp, S/S, for 50ml Flask, with Spring Retainer |
| P8022 | O Clamp, S/S, for 100ml Flask, with Spring Retainer |
| P8023 | O Clamp, S/S, for 250ml Flask, with Spring Retainer |
| P8024 | O Clamp, S/S, for 500ml Flask, with Spring Retainer |
| P8025 | O Clamp, S/S, for 750ml Flask, with Spring Retainer |
| P8026 | O Clamp, S/S, for 1000ml Flask, with Spring Retainer |
| P8027 | O Clamp, S/S, for 2000ml Flask, with Spring Retainer |
-
