Descriptions:

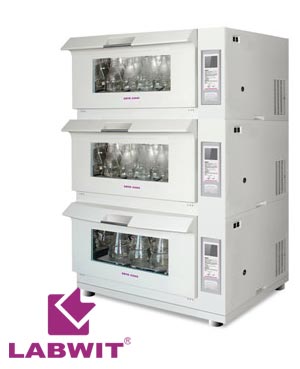

The ZW YR- series shaking incubator can be stacked up to three units high, providing laboratory professionals tripled culture capacity, while still only occupying the same “footprint” of a single shaker. All models feature an insulated, fold-down door with double -layer glass window for high visibility. On all refrigerating models, microprocessor controller provides unmatched versatility by enable users to create personalized program (with up to 9 segments, with cycling) to automate changes to function parameters.
Features:
■ Fold-down door with door handle, and dedicated sliding shaking platform provide convenient access to your experiment products. Moreover, the top of the casing can be further used as a work area for locating small items of lab equipment etc.
■ The incubator casing is made of heavy-gauge cold-rolled steel; together with high graded #304 stainless steel inner chambers with coved corners make it easy to clean with mild detergent.
■ Heavy-duty, eccentric drive mechanism allows extended speed ranges from 30 to 300 RPM, ±1 RPM with minimized vibration, even when shakers are stacked of three high.
■ Robust brushless DC motor enables shaking motion quiet and smooth, even when unit is operating at top speed with maximum workload.
■ Non-volatile memory saves settings during a power outage and automatically restarts the unit after power is restored.
■ Audible and visual alarms alert user of setpoint deviations. Audible alarm may be muted.
■ Heater shuts off when high-temperature limit is exceeded. Shaker stops when excess vibration is detected or when door is opened.
■ Interior chamber light enhances observation.
■ Predrilled platform as standard config, clamps excluded.
Specifications:
|
Model
|
ZWYR-2401
|
ZWYR-2402
|
ZWYR-2403
|
|
Control
|
P.I.D Microprocessor
|
|
Control Mode
|
Fix Value or Program (up to 9 Segments)
|
|
Control Panel
|
LCD
|
|
Air Convection
|
Forced
|
|
Mode
|
Orbit
|
|
Volume/ Compartment (L)
|
182
|
|
Working Temperature(℃)
|
10-35
|
|
Shaking speed (rpm)
|
30-300
|
|
Stroke ( mm)
|
1-50 Stepless Adjustable
|
|
Temperature Range (℃)
|
4-60
|
|
Temperature Accuracy (℃)
|
0.1
|
|
Temperature Uniformity (℃)
|
±1ºC@37℃
|
|
Timer
|
1 minute to 500 hours
|
|
Tray (mm) (WxD)
|
800x430
|
|
No. Of Tray
|
1
|
2
|
3
|
|
No. Of Compartment
|
1
|
2
|
3
|
|
Inner dimensions (mm) (WxDxH)
|
920x532x373
|
|
Exterior dimensions (mm) (WxDxH)
|
1100x943x1305
|
1100x943x1305
|
1100x943x1615
|
|
Packing dimensions (mm) (WxDxH)
|
1220x1063x1425
|
1220x1063x1425
|
1220x1063x1735
|
|
Net Weight (kg)
|
365
|
407
|
610
|
|
Gross Weight (kg)
|
405
|
460
|
490
|
|
Power (W)
|
1200
|
2400
|
3600
|
|
Electricity
|
220/240Volt 50/60 Hz
|
|
Approval
|
CE, ISO
|
CE, ISO
|
CE, ISO
|
|
Security
|
Over-temperature Protection, Compressor Overload Protection,
Electrical Leakage Protection
|
|
Options
|
Built-in Printer, RS-232 interface
|
