INTRODUCTION

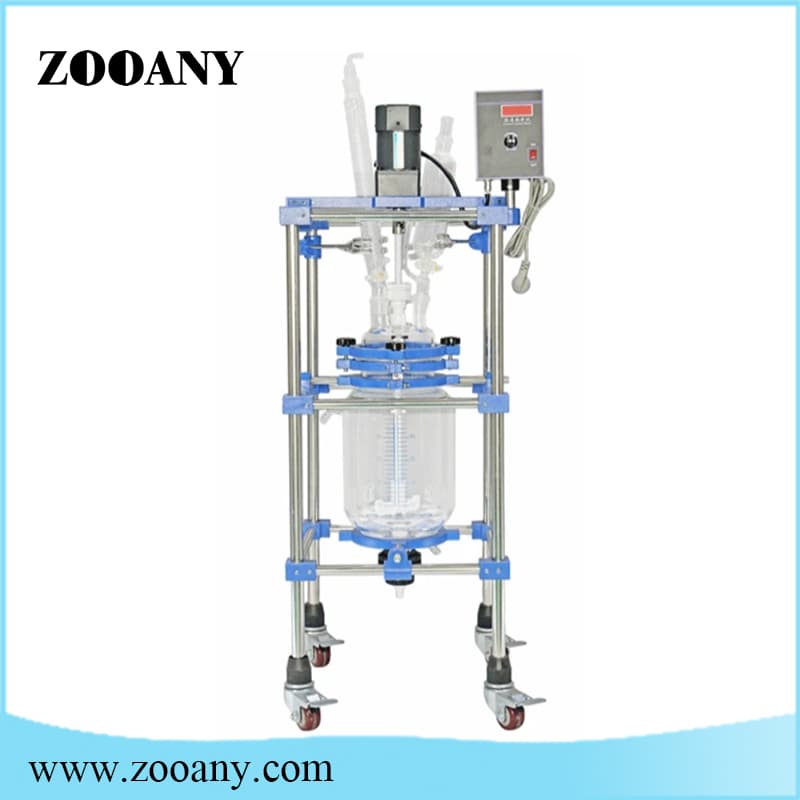

It can stir and react under the natural pressure or negative pressure in the sealed reactor. The evaporating and reflowing of the reacted solution is controlled. The material can be emptied from the outlet valve at the bottom of the reactor after reacting. It is easy to operate. The reactor is the ideal instrument for experiment of modern chemistry, biochemical, pharmacy and the advanced synthetic.

SALIENT FEATURES:
1.Frequency modulated speeder, operating smoothly and reliably
2.Rising or reducing by handle wheel, running as you desired
3.Mechanical-Teflon complex sealing unit, may operate under the vacuum
4.Attached with precision constant-temperature oil bath, temperature controlled precisely
5.Stainless steel main frame

Date:
Power of motor	120W / 180W (3:1 Gear-driven motor)
Speed of rotating	frequency modulated speeder , 100-650 r.p.m
Moment of motor	21000 g.cm/120W; 31000g.cm/180W
Openings of the reactor	Φ50 flange connecter (stirring), #29 (inlet), #40 (azote), #19 (thermometer)
Cubage of reactor	10L , 20L , 30L , 50L( availability cubage )
Thickness of the glass	3-5mm
Range of rising(reducing)	250mm
Heating system	3 - 5 kW, precision water / oil bath, room temp. ~ 180 ℃ ,
	Power: 220 or 380V, 50 Hz
Measurement	500 x 410 x 1600mm(10L), 620 x 450 x 1800 mm(20L,30L,50L)
