- Prosep protein A affinity chromatographic column
The costones protein a analytical column is designed for rapid detection of monoclonal antibody (mAb) concentration (titer)
Design. The product uses the principle of affinity chromatography and the specific binding ability of alkali resistant recombinant protein a ligand and immunoglobulin Fc fragment to achieve accurate capture and quantification of antibodies in complex fermentation broth. Different from the traditional agarose matrix, prosep series uses highly crosslinked hydrophilic polystyrene divinylbenzene (psdvb) particles as the matrix:
High mechanical strength: high pressure resistance is significantly improved, supporting higher flow rate without deformation.
good mass transfer efficiency: it has higher dynamic binding flux (DBC) and significantly reduces the analysis cycle time.
long service life: stronger physical stability and chemical resistance, significantly reducing the cost of a single test.
Core advantages
seamless connection of HPLC system: standard chromatographic column specifications are adopted, which can be directly used on conventional hplc/uhplc instruments.
rapid analysis cycle: a single analysis takes only 2 – 5 minutes, which greatly improves the high-throughput screening efficiency of upstream process development.
excellent linear range: maintain excellent linear relationship in the wide concentration range of 0.02 – 10 mg/ml, and reduce sample dilution operation.
very low non-specific adsorption: ensure high accuracy of quantitative results and effectively deal with complex cell culture medium components.
excellent alkali resistance: it can withstand 0.1 – 0.5 M NaOH strong alkali cleaning, effectively prevent cross contamination and prolong the service life of the column.
| project | Prosep protein A affinity chromatographic column | Prosep protein a plus affinity chromatographic column |
| Chromatographic column tube | 2.1mm ID × 30mm L; 4.6mm ID × 50mm L | 2.1mm ID × 30mm L; 4.6mm ID × 50mm L |
| Column pipe material | 316L stainless steel column, PEEK | 316L stainless steel column, PEEK |
| stroma | Hydrophilic polystyrene divinylbenzene (PS-DVB) | Hydrophilic polystyrene divinylbenzene (PS-DVB) |
| Ligand | Modified protein A | Modified protein A |
| Average particle size | 40μm | 20μm |
| Storage solvent | 0.02M disodium hydrogen phosphate, pH 7.0， 0.02% sodium nitrite | 0.02M disodium hydrogen phosphate, pH 7.0， 0.02% sodium nitrite |
| PH range | pH 2-10 | pH 2-10 |
| Withstand voltage | 1000 psi | 1000 psi |
| Cleaning solvent | 0.1-0.5M NaOH | 0.1-0.5M NaOH |
| Cycle time | 2-5 minutes | 2-5 minutes |
| Service temperature | 4-40 ℃ | 4-40 ℃ |
Product item No
| Product name | specifications | Stainless steel column | PEEK column |
| Prosep A | 2.1*30mm | 11073002103S | 11073002103P |
| Prosep A | 4.6*50mm | 110730-04605S | 11073004605P |
| Prosep A PLUS | 2.1*30mm | 11072002103S | 11072002103P |
| Prosep A PLUS | 4.6*50mm | 11072004605S | 11072004605P |
DNA Analysis Column
Based on the most advanced column technology, the DNA column is designed for the efficient separation and accurate characterization of oligonucleotides (including dna/rna, mRNA and plasmid) by liquid chromatography and LC-MS.
DNA RP column: highly crosslinked macroporous ps/dvb microspheres, suitable for the separation of macromolecular DNA and RNA.
DNA 200-c18: monodisperse C18 coupled silica gel for the separation of small oligonucleotides.
DNA 1000-c18: monodisperse C18 coupling silica gel is used for the separation of macromolecular oligonucleotides, DNA and RNA.
Core advantages
monodisperse microspheres with high column efficiency, good pressure resistance and good separation selectivity
good chemical stability, low column loss, good consistency between columns
| project | DNA RP | DNA 120-C18 | DNA 1000-C18 |
| Ligand | Quaternary ammonium group | Octadecyl | Octadecyl |
| stroma | PS-DVB | Spherical silica gel | Spherical silica gel |
| Average particle size | 5um | 3um/5um | 3um/5um |
| Average aperture | - | 200A | 1000A |
| Maximum withstand voltage | 5000 psi | 5um: 5000psi; 3um: 6000psi | 5um: 5000psi; 3um: 6000psi |
| Upper temperature limit | 80℃ | 50℃ | 50℃ |
| PH range | 2-12 | 2-11 | 2-11 |
| Specifications | 4.6×250mm | 4.6×150mm | 2.1×150mm | 2.1×50mm |
| DNA RP | D30105000004625 | D30105000004615 | - | - |
| DNA 120-C18 | D00303002004625 | D00303002004615 | D00303002002115 | D00303002002105 |
| DNA 1000-C18 | D00305010004625 | D00305010004615 | D00305010002115 | D00305010002105 |
Sugar analytical column
Sugar analytical chromatographic column is specially designed for efficient analysis of various polysaccharides, sugar alcohols and organic acids. This series of chromatographic columns uses high-performance monodisperse polystyrene divinylbenzene (psdvb) microspheres as the matrix, and combines the advanced coordination exchange and ion exchange principles to provide excellent analytical power for the qualitative and quantitative analysis of complex samples.
Core Technology
Monodisperse psdvb matrix: two monodisperse polymeric microspheres with different crosslinking degrees are used, taking into account the excellent physical strength and optimized pore structure, ensuring a very long service life under high temperature and high pressure.
Unique sulfonation bonding process: through precise chemical modification, the functional groups are firmly bonded to the polymer surface to ensure a high degree of reproducibility of the analysis results.
Coordination exchange separation principle: separation is realized by using the difference of coordination between metal counter ions and sugar hydroxyl, and isomers with similar structures can also obtain ideal resolution.
H+type: analysis of mixtures of organic acids, sugar alcohols and various sugars. It is the first choice for fermentation analysis and food quality monitoring.
Na+type: separation of oligosaccharides and neutral sugars. Provide optimized elution sequence and separation efficiency for high molecular weight carbohydrates.
Ca2+type: analysis of sugar alcohols, monosaccharides (such as glucose and fructose) and components in honey and beverages. It has strong retention ability for sugar alcohols and higher resolution.
Product advantages
full spectrum application: it covers the full range analysis from monosaccharides to complex polysaccharides.
environment friendly: it mainly uses pure water as the mobile phase, without a large number of organic solvents, reducing operating costs and environmental protection.
excellent stability: the polymer matrix has excellent chemical stability and can withstand a wide pH range.
Accuracy and consistency: strict production control ensures the consistency between columns and between batches, and simplifies the method validation process.
Product specification:
| Product specifications | Sugar-10H | Sugar-10Ca | Sugar-10Na |
| functional group | -SO₃H | -SO₃Ca | -SO₃Na |
| stroma | Monodisperse spherical PSDVB particles | Monodisperse spherical PSDVB particles | Monodisperse spherical PSDVB particles |
| Average particle size | 6um/8um | 6um/8um | 6um/8um |
| Crosslinking degree | 0.1 | 0.1 | 0.1 |
| PH range | 1-3 | 5-9 | 5-9 |
| Temperature resistance | < 95℃ | < 95℃ | < 95℃ |
| Withstand voltage | 1200psi | 1200psi | 1200psi |
| Product application | Mixtures of organic acids and alcohols | Honey and oligosaccharides | Sugars and maltose |
| Average particle size | Column specification | Sugar-10H | Sugar-10Na | Sugar-10Ca |
| 6um | 4.6*250mm | 0170601004625 | 0580601004625 | 0190601004625 |
| 6um | 7.8*250mm | 0170601007825 | 0580601007825 | 0190601007825 |
| 8um | 4.6*250mm | 0170801004625 | 0580801004625 | 0190801004625 |
| 8um | 7.8*250mm | 0170801007825 | 0580801007825 | 0190801007825 |
SEC column
Costones SEC column is a high-performance volume exclusion chromatographic column specially designed for the separation of biological macromolecules. This series of products are separated based on the difference of molecular size, with a wide range of
It is widely used in biopharmaceutical quality control, drug development and basic research of life sciences.
Technical quality
monodisperse high-strength silica gel: monodisperse microspheres with special design are used to provide high column efficiency and mechanical stability.
neutral hydrophilic coating: a highly stable neutral hydrophilic film is constructed on the surface of silica gel, effectively shielding the active sites on the substrate surface.
very low nonspecific adsorption: this coating minimizes the secondary interaction between the stationary phase and the biological analyte, ensuring excellent peak symmetry and polarity
High sample recovery.
Core advantages
high column efficiency and high resolution: precisely controlled pore size distribution ensures high clarity in the separation of monomers, dimers and polymers.
Excellent peak shape and recovery rate: almost no residual adsorption, even complex biological samples can obtain accurate quantitative results.
strong physical stability: high strength silica gel matrix can withstand higher operating pressure and significantly prolong the service life of chromatographic column.
wide application: covering a variety of separation requirements from small molecule drugs and peptides to large proteins, nucleic acids and polysaccharides.
Product application
sec-120: small molecule drugs, peptides, polysaccharide fragments, short chain oligonucleotides.
sec-150: peptides, medium molecular weight proteins, glycans, oligonucleotides.
sec-300: standard selection for the determination of monoclonal antibodies (mAbs) and their variants and aggregates.
sec-500: large protein complexes, high molecular weight polysaccharides, and macromolecular nucleic acids.
Product specifications
| Project | SEC-150 | SEC-300 | SEC-500 |
| functional group | Diol | Diol | Diol |
| stroma | Monodisperse high purity silica matrix | Monodisperse high purity silica matrix | Monodisperse high purity silica matrix |
| Average particle size | 5um | 5um | 5um |
| Average aperture | 150A | 300A | 500A |
| PH range | 2-8 | 2-8 | 2-8 |
| Temperature resistance | <40℃ | <40℃ | <40℃ |
| Withstand voltage | 6000psi | 6000psi | 6000psi |
| Ligand range (PEG) | 200-15,000 | 1,000-100,000 | 5,000-200,000 |
| Ligand range (dextran) | 1,000-50,000 | 5,000-150,000 | 20,000-500,000 |
| Ligand range (globulin) | 5,000-150,000 | 10,000-1,000,000 | 20,000-2,000,000 |
Product item No
| Product Model | 5um 7.8×300mm | 5um 4.6×300mm | 5um 4.6×50mm | 5um 4.6×10mm |
| SEC-150 | 2130501507830 | 2130501504630 | 2130501504605 | 2130501504601 |
| SEC-300 | 2130503007830 | 2130503004630 | 2130503004605 | 2130503004601 |
| SEC-500 | 2130505007830 | 2130505004630 | 2130505004605 | 2130505004601 |

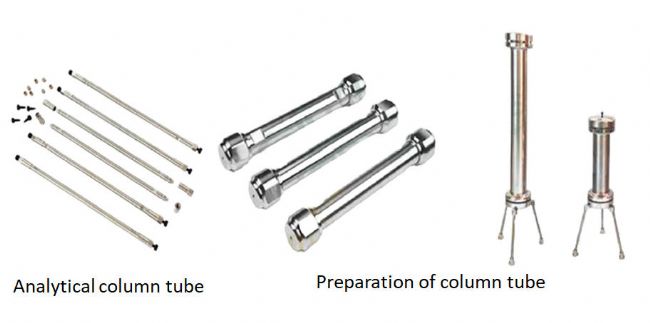

COSTONES provides a variety of liquid chromatographic columns according to different application environments
Specifications. Product specifications

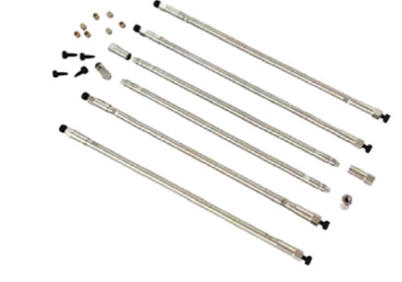

inner diameter 2.1mm, 3.0mm, 4.0mm, 4.6mm, 7.8mm, 10mm, 20mm, 21.2mm, 30mm, 50mm
length: 20mm, 30mm, 50mm, 100mm, 150mm, 250mm, 300mm, 500mm (customizable)
column tube material: stainless steel 316 L

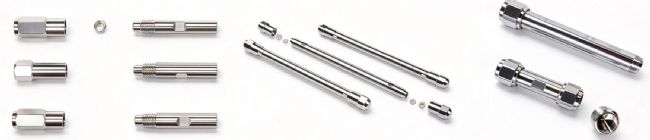

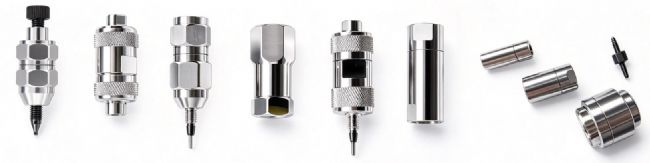

COSTONES ，According to different application scenarios, different sieve plate styles are provided for analytical column tubes and semi prepared column tubes.
Protective column for liquid chromatographyThe protective column is selected according to the specification of the liquid chromatographic column. The optional sizes are 4.6-10mm, 10-10mm and 20-10mm. The appearance of the 4.6-10mm size can be customized.
Welcome to inquire, E-mail：pangjun@costones.com
-
