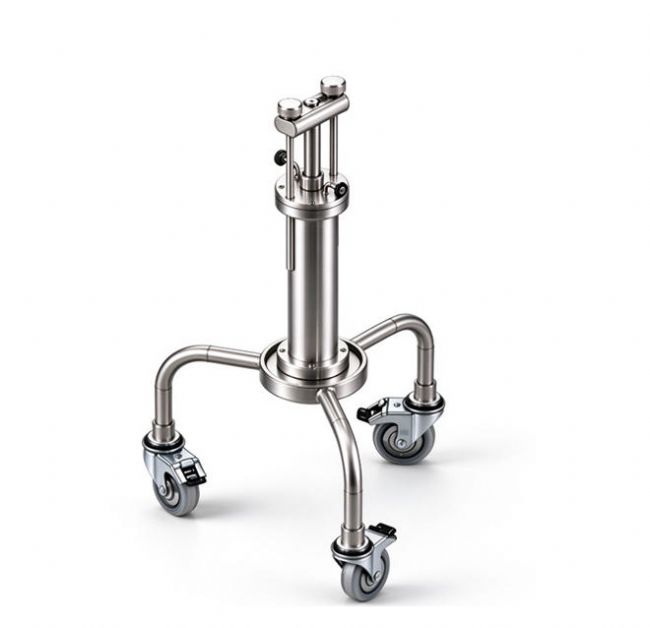

- OLIGO oligonucleotide synthesis column
The Oligo stainless steel synthetic column is designed for oligonucleotide synthesis and can withstand the harsh organic conditions involved in oligonucleotide synthesis.
Product Features
The height of the column bed can be adjusted, and it is recommended that the working height of the column bed be between 50mm and 300mm
Can withstand the harsh organic solvent conditions during synthesis
The synthesis column is easy to operate and the solid-phase carrier packaging is convenient
The Oligo synthesis column also has specifications suitable for large-scale synthesis, with diameters of 35mm, 50mm, 70mm, 100mm, 140mm, 200mm, 250mm, 270mm, 350mm, 500mm, and other specifications
Model Selection
| Art.No | Product Name | inner diameter | Loading height | Max.Pressure | Column material |
| JZ-0910 | Oligo70L Synthetic Column | 70mm | 50-300mm | 2Mpa | SS316L |
| JZ-0911 | Oligo100L Synthetic Column | 100mm | 50-300mm | 2Mpa | SS316L |
| JZ-0912 | Oligo140L Synthetic Column | 140mm | 50-300mm | 2Mpa | SS316L |
| JZ-0913 | Oligo200L Synthetic Column | 200mm | 50-300mm | 2Mpa | SS316L |
| JZ-0914 | Oligo250L Synthetic Column | 250mm | 50-300mm | 2Mpa | SS316L |
| JZ-0915 | Oligo350L Synthetic Column | 350mm | 50-300mm | 2Mpa | SS316L |
| JZ-0916 | Oligo500L Synthetic Column | 500mm | 50-300mm | 2Mpa | SS316L |
Oligo oligonucleotide synthesis column Technical parameters
(inner diameter: 70/100/140/200 mm)
| Synthesis column | Description |
| Column material | SS 316L |
| inner diameter | 70/100/140/200 mm |
| Loading height | 50-300 mm |
| Inlet/Out connection | 25mmTC |
| Maximum work pressure | 2MPa |
| Material of upper and lower support plates | SS 316L |
| Gasket material | FFKM |
| Sieve plate aperture | 10µm( optional 20um，5um，2um) |
| frame material | AISI 316L /AISI 304 |
| Piston sealing method | O-ring |
| Polishing of stainless steel parts in contact with liquid material |
Ra ≤0.4µm |
| support | 3 casters and 3 tripod support legs |
Oligo250 oligonucleotide synthesis column Technical parameters
(inner diameter: 250/270mm)
| synthesis column | Description |
| Column material | SS 316L |
| inner diameter | 250 mm/270mm |
| Loading height | 50-300 mm |
| Inlet/Out connection | 25mmTC |
| Maximum work pressure | 2MPa |
| Material of upper and lower support plates | SS 316L |
| Gasket material | FFKM |
| Sieve plate aperture | 10µm( optional 20um，5um，2um) |
| frame material | AISI 316L /AISI 304 |
| Piston sealing method | O-ring |
| Polishing of stainless steel parts in contact with liquid material |
Ra ≤0.4µm |
| support | 3 casters and 3 tripod support legs |
Oligo350 oligonucleotide synthesis column Technical parameters
(inner diameter: 350/500 mm)
| Synthesis column | Description |
| Column material | SS 316L |
| inner diameter | 350 mm/370mm/500mm |
| Loading height | 50-300 mm |
| Inlet/Out connection | 50mmTC |
| Maximum work pressure | 2MPa |
| Material of upper and lower support plates | SS 316L |
| Gasket material | FFKM |
| Sieve plate aperture | 10µm( optional 20um，5um，2um) |
| frame material | AISI 316L /AISI 304 |
| Piston sealing method | O-ring |
| Polishing of stainless steel parts in contact with liquid material |
Ra ≤0.4µm |
| support | 4 casters and 4 tripod support legs |
Other specifications can be customized according to needs
