- Product introduction

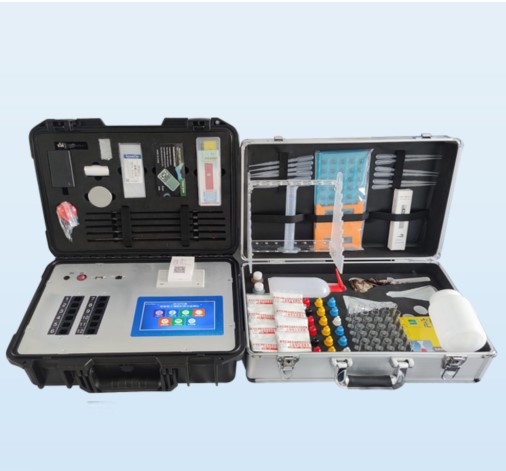

The soil nutrient analyzer is equipped with an intelligent detection system, and the main control adopts a multi-core processor with 8GB of memory (expandable to 256G). It has fast operation speed, strong stability, and no lagging or freezing phenomenon. Equipped with USB interface and Ethernet interface, it can quickly export and upload data. It can detect various detection indicators such as soil, fertilizer, plants, etc. The instrument adopts a high-sensitivity 7-inch and above capacitive touch large screen backlight display, which displays the current time in real time and reduces the tedious operation and errors of traditional instruments. It can store and print test results, and has the function of querying and printing historical data. The instrument has built-in sample pre-processing steps and machine testing steps operation videos, which can be viewed by clicking on the main interface of the instrument. It provides one-on-one guidance and teaching, making it faster and easier to get started.
Product Features:
1. Built in soil testing formula fertilization system, directly input nutrient detection results to calculate the one-time fertilization amount; The fertilization system comes standard with nearly 200 crop fertilization suggestions and can add crop types according to user needs; The results of soil testing formula fertilization can be printed, including crop types, fertilizer types, target yields, total demand, and recommended fertilization plans.
2. Built in plant nutrition diagnostic standard map, based on the pictures of nutrient deficiency in various crops, conduct leaf comparison to diagnose abundance and deficiency.
3. The channel adopts a 12 channel colorimetric design, which can quickly detect up to 12 samples at once (upgraded built-in model). All detection items can be detected simultaneously in all channels or selected according to the number of samples, greatly improving detection efficiency and reducing detection costs.
4. Built in sensor aviation interface, easy to plug and unplug, equipped with FDR sensor. (Optional)
5. The FDR sensor is a multi parameter integrated soil sensor that can simultaneously measure soil health index (SHI), suitability index (SPI), soil temperature, soil moisture (water), pH, conductivity (EC), salt content (salt content) TDS。
6. The colorimetric groove adopts a standard 1cm colorimetric dish, with no mechanical displacement or wear. The optical path testing positioning is accurate, effectively shielding external light interference and ensuring that the detection results are better than the national standard requirements.
7. Instrument wavelength range: 100nm -1200nm, users can choose the corresponding wavelength according to the detection project needs.
8. The instrument is equipped with a new generation high-speed thermal printer, which can print out the detection category, detection items, detection unit, detection personnel, detection time, channel number, absorbance, content (mg/kg,%), QR code and other information after detection is completed. The detection report can be automatically printed and judged.
The instrument has over 8GB of memory, which can store data for a long time without the need for a data cable. The data can be directly uploaded wirelessly, making it convenient for data management and long-term analysis.
10. Built in calibration function during the detection process, intelligent constant current and voltage stabilization, and automatic calibration of light intensity to ensure detection accuracy.
11. Each channel is equipped with a four wavelength cold light source, and all light sources achieve constant current and voltage regulation to ensure wavelength stability. Silicon semiconductors, as signal receiving systems, have a lifespan of up to 100000 hours. Good reproducibility and high accuracy.
12. The instrument is equipped with power-off protection function, which can automatically store data in case of sudden power outage to prevent data loss.
13. The instrument has its own protection function and can set a username and password; Scalable fingerprint lock login and facial recognition to prevent non staff personnel from accessing experimental data.
14. Simultaneous extraction and determination of efficient N, P, and K nutrients in soil, and scientific recommendation of fertilizer application rates (drafter of soil nitrogen, phosphorus, and potassium detection standards by the Ministry of Agriculture).
15. Simultaneous, rapid, and accurate detection of nutrients such as nitrogen (N), phosphorus (P), and potassium (K) in fertilizers.
Test Items:
1.Soil: Soil ammonium nitrogen, soil available phosphorus, soil available potassium, soil organic matter (Qiulin method), soil organic matter (leaching method), soil organic carbon (Qiulin method), soil organic carbon (leaching method), soil alkaline nitrogen, soil nitrate nitrogen, soil total nitrogen, soil total phosphorus, soil total potassium, soil available calcium, soil available magnesium, soil available sulfur, soil available iron, soil available manganese, soil available boron, soil available zinc, soil available copper, soil available chlorine, soil available silicon, soil available molybdenum, soil total calcium, soil total magnesium, soil total sulfur, soil total iron, soil total manganese, soil total boron, soil total zinc Soil total copper, soil total chlorine, and soil total silicon. Soil Health Index (SHI), Seed Suitability Index (SPI), Soil Temperature, Soil Moisture (Moisture), pH, Electrical Conductivity (EC), Salt Content (Salt Content) TDS。
2.Fertilizer: organic fertilizer total nitrogen, organic fertilizer total phosphorus, organic fertilizer total potassium, organic matter, organic carbon, fertilizer ammonium nitrogen, fertilizer nitrate nitrogen, urea nitrogen, urea, available phosphorus, water-soluble phosphorus, elemental potassium fertilizer, effective potassium fertilizer, compound fertilizer total nitrogen, compound fertilizer total phosphorus, compound fertilizer total potassium, compound fertilizer nitrate nitrogen, total nitrogen (organic-inorganic compound fertilizer), total phosphorus (organic-inorganic compound fertilizer), total potassium (organic-inorganic compound fertilizer), organic fertilizer nitrate nitrogen, organic fertilizer acid hydrolyzable nitrogen, organic fertilizer available phosphorus, organic fertilizer available potassium, water-soluble humic acid (weathered coal), water-soluble humic acid (lignite), water-soluble humic acid Phytic acid (peat), free humic acid (weathered coal), free humic acid (lignite), free humic acid (peat), total humic acid (weathered coal), total humic acid (lignite), total humic acid (peat) Water soluble fertilizer nitrogen (solid), water soluble fertilizer phosphorus (solid), water soluble fertilizer potassium (solid), water soluble fertilizer nitrate nitrogen (solid), water soluble fertilizer nitrogen (liquid), water soluble fertilizer phosphorus (liquid), water soluble fertilizer potassium (liquid), water soluble fertilizer nitrate nitrogen (liquid), humic acid (solid mineral source), humic acid (solid biological source), humic acid (liquid mineral source), humic acid (liquid biological source), fertilizer effective calcium, fertilizer effective magnesium, fertilizer effective sulfur, fertilizer effective iron, fertilizer effective manganese, fertilizer effective boron, fertilizer effective zinc, fertilizer effective copper, fertilizer effective chlorine, fertilizer effective silicon, fertilizer effective molybdenum, fertilizer Total calcium, total magnesium, total sulfur, total iron, total manganese, total boron, total zinc, total copper, total chlorine, total silicon, and total molybdenum in fertilizers;
3.Plants: ammonium nitrogen, nitrate nitrogen, crop phosphorus, crop potassium, crop calcium, crop magnesium, crop sulfur, crop iron, crop manganese, crop boron, crop zinc, crop copper, crop chlorine, crop silicon, crop molybdenum, plant total nitrogen, plant total phosphorus, plant total potassium, plant total calcium, plant total magnesium, plant total sulfur, plant total iron, plant total manganese, plant total boron, plant total zinc, plant total copper, plant total chlorine, plant total silicon, plant total molybdenum, plant total sugar, plant starch, plant reducing sugar.
Technical Date:
1. Testing speed: Under normal proficiency, it takes 15 minutes to test soil ammonium nitrogen, phosphorus, and potassium (including soil sample pretreatment and chemical preparation), about 40 minutes to test fertilizer nitrogen, phosphorus, and potassium, and about 15 minutes for single trace element testing.
2. Power supply: AC 220 ± 22V DC 12V (instrument built-in lithium battery).
3. Power: ≤ 10W.
4. Range and resolution: 0.001-9999.
5. Repeatability error: ≤ 0.02% (0.0002, potassium dichromate solution).
6. Instrument stability: The instrument does not require preheating when turned on, and the drift within two hours is less than 0.02% (0.0002, transparency measurement). The instrument displays no digital drift within one hour of startup (transparency measurement), and the digital drift within two hours does not exceed 0.02% (transparency measurement) or 0.001 (absorbance measurement).
7. Linear error: ≤ 0.1% (0.001, copper sulfate detection).
8. Sensitivity: Red light ≥ 4.5 × 10-5, blue light ≥ 3.17 × 10-3, green light ≥ 2.35 × 10-3, orange light ≥ 2.13 × 10-3.
9. Wavelength range: Red light: 680 ± 2nm; Blue light: 420 ± 2nm; Green light: 510 ± 2nm; Orange light: 590 ± 2nm.
10. PH value (pH): (1) Test range: 1-14 (2) Accuracy: 0.01 (3) Error: ± 0.1.
11. Salt content (conductivity): (1) Test range: 0.01% to 1.00% (2) Relative error: ± 5%.
12. Soil moisture technical parameters Water unit:% (g/100g); Moisture content testing range: 0-100%; The error is less than 0.5%.
13. High strength PVC engineering plastic and portable aluminum alloy box design, sturdy and durable, easy to carry, with AC/DC dual-use power supply, can be used for field flow testing and matching finished drugs.
-
Wuhan Hanliny Technology Co., Ltd. is located in the Zhongnan International Building, Wuhan City, Hubei Province. The company is mainly engaged in research and development, production and sales of soil testing instruments, plant testing instruments and environmental testing instruments. It is a comprehensive technology enterprise integrating science, industry and trade. The main products include soil/fertilizer Nutritional Parameters, soil temperature and humidity meter, soil moisture meter, soil conductivity meter, soil salinity meter, soil moisture temperature and salinity meter, soil pH/Eh tester, soil three parameter tester, soil moisture station, soil drill, soil drill comprehensive suit, root drill suit, original soil sampler, etc.; photosynthetic instrument, Leaf transpiration rate meter, Plant respirometer, canopy analyzer, root scanning analysis system, chlorophyll meter, leaf area meter, stem strength meter, leaf thickness meter, etc.; weather station, handle weather station, greenhouse environmental station, greenhouse environmental recorder, temperature and humidity recorder, CO2 recorder, rainfall record Instrument, solar radiation recorder and other instruments.
The company's products are mainly used in agriculture, forestry, teaching, scientific research, meteorology, environment and other fields. It cooperates with many agricultural universities, scientific research institutions, agricultural extension stations, soil and fertilizer stations, agricultural and forestry bureaus, etc., and has been unanimously praised by customers. The company adheres to high-quality after-sales service, technical training for each sold instrument, regular return visit, Q & A, deeply trusted and supported by users.
Hanliny adheres to the concept of innovation and pragmatism, pursuit of excellence, sincerity and customer first, will adhere to the research and development of more advanced instruments and equipment, and serve customers with high-quality products, quality and preferential prices.
