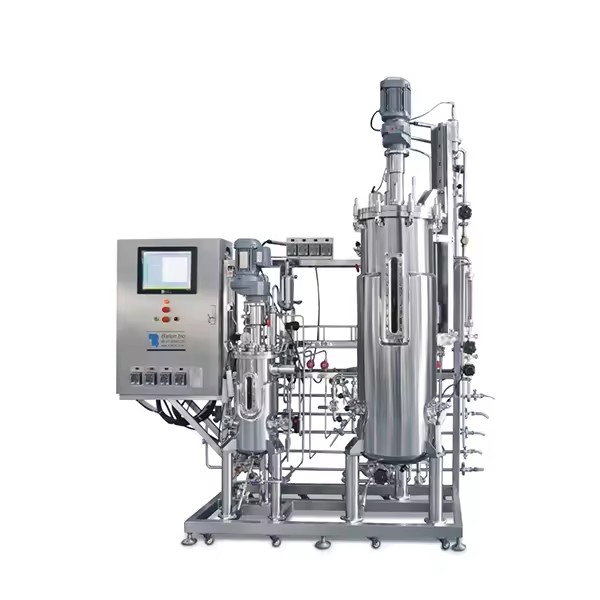

Bioreactor Stainless Steel Reactor Tank,SHENZHOU_specification/price/image

Product Detail
Company Profile

Product Description

working volume: 45%-70%

Material: Glass and 316L stainless steel
The diameter and hight ratio: 1:2-3

Mixing method: magnetic stirring or mechanical stirring one of the two optional

Sterilization method: on-site sterilization auto control or manual control

Control system: Siemens PLC, industrial LCD touch computer control, parameters can be set to store, can be remotely connected to the computerthrough the USB interface, the data

Stirring system
Mechanical sealing system : high-powered stirring oar, antifoam oar;

AC electrical machine: infinite speed variation; rpm in the fermenter: 70~1200rpm±1%, the height of the stirring oar can be adjusted, too.

Temperature detection and control
Heat by thermostatic water tank and circulate by circulating pump(G-rundfos, Denmark), autocontrol (cooling water+5ºC) to 65ºC±0.1ºC,temperature probe(US)

pH detection and control
2.00-12.00±0.05pH, autocontrol by adding acid and base, pH sensor (Mettler, Switzerland) and shielding lead (Mettler, Switzerland). fermenter is autocontrolled with peristaltic pump

DO detection and control
0-150±3% displaying precision 0.1%, sensor (Mettler, Switzerland) and shielding lead(Mettler, Switzerland)

Feed control
Fermenter uses peristaltic pump (Longe) to add meterials

Antifoam control
Tested by sencor and added antifoamer by peristaltic pump

Intake control (air) manual control rotameter

Pressure detection and control
Pressure Control: Pressure meter and digital display and digital remote control, pressure control Bioreactor Stainless Steel Reactor Tank
