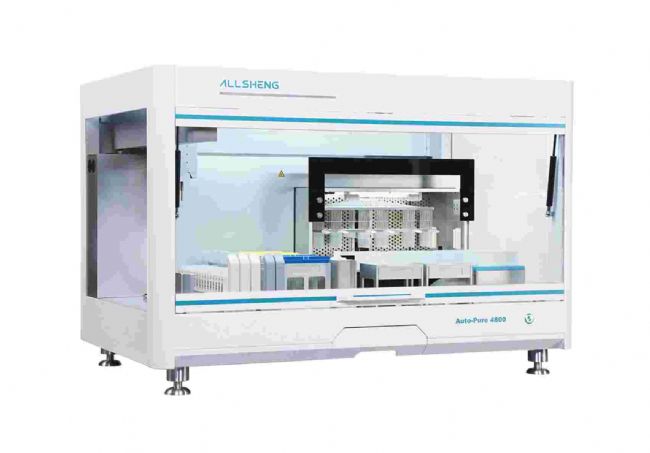

Auto-Pure 4800 automatic nucleic acid extraction and purification instrument is a high-throughput automatic nucleic acid extraction equipment. The instrument is based on the magnetic bead method to extract nucleic acid. During the purification process, the steps of pipetting, lysis, washing, elution, and PCR system set-up are automatically completed in the workstation. One-stop operation, without manual intervention. Can extract 48×1 ml sample system in one run.
•Fast & flexible experiment
Time for the extraction: 48 samples - 15 ~ 30 min (depending on different reagents)
Time for the pipette sample: 48 samples - 13 min
Time for PCR set-up: 48 samples - 10min
Bottled or prefilled reagents can be selected for extraction according to actual needs

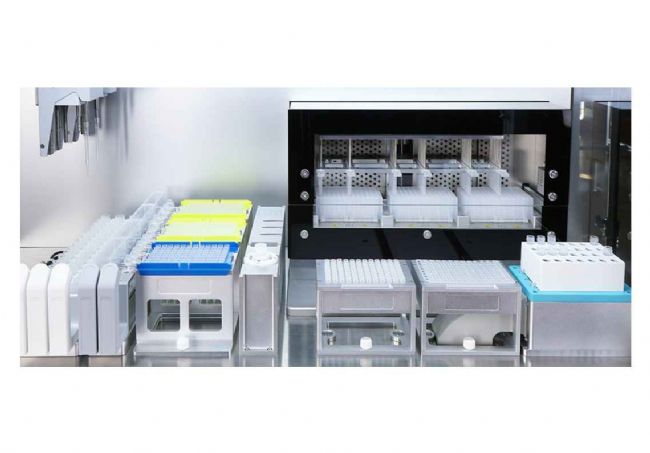

Modular design of the work-table. And it can be customized for the layout of different forms
•Effective cross-contamination prevention
Air displacement pipetting principle to avoid liquid contamination
Anti-hanging drop technology to avoid dropping contamination
Negative pressure filter system to prevent aerosol contamination
•High-precision liquid handling
1+2 pipettors combination can meet various needs of sample, extraction reagent and PCR reagent
The pipettor's pressure detection technology cannot only detect the height of the liquid level, but also empty suction, residual liquid volume and blockage detection
Detailed pipetting parameter settings for different liquids can effectively improve the accuracy
•Vortex magnetic beads and PCR reagent block
In order to meet the methylation requirements, the 4800M adds a temperature control block to realize multi-stage temperature change
Specially designed for magnetic beads, the vortex is stable which improves the efficiency of the experiment
The PCR reagent block can be customized according to customer needs
•Easy-to-learn operating software
Graphical user interface, program editing can be completed without complicated operations
Built-in comprehensive libraries of consumable carriers, and liquids to reduce customer program matching time
Users can simply select according to their needs to complete the whole process of liquid handling,extraction, and PCR / qPCR set-up
-
Suzhou Alpha Biological Laboratory Equipment Co. , Ltd. was established in 2008, located in Suzhou Park Biological Nanometer Park (Biobay) a 5 building, room 301. The Management Team of the company is dedicated to the scientific instrument industry for 12 years.
With professional technical team and perfect after-sales service system, it has provided more than 300 laboratories with high-quality products and services, it covers 13 groups such as universities, medical institutions, testing centers, scientific research institutions and pharmaceutical enterprises.
Acting Laboratory equipment mainly includes vibration incubator, PCR instrument, Pipette, Bioreactor, fermentation tank, Pipette, ultra-low temperature refrigerator, medical refrigerator, liquid nitrogen tank, high-pressure sterilizer, ultra-pure water machine, balance, centrifuge, etc. . Manufacturers licensing including Chu Instruments, Langki, Zhongke Meiling, Mettler, Le Feng, Bo Lu, NEST, Tiangen, Aosheng and many other well-known brands. As well as providing excellent products, we also provide you with consumable reagents commonly used in biological laboratories, as well as services such as whole relocation of laboratories, third-party testing, metrology and calibration, second-hand instrument dispensing, etc. . The complete one-stop laboratory experience makes your choice more convenient, fast and flexible.
Alpha value-added services: free sample experience, free sample trial, free installation guidance, free technical guidance.
Alpha biology, help life science research! Let your experiment run smoothly without any worries!
