Nucleic Acid Purification System
Nucleic Acid Purification System
Place of Origin:
  • Product Detail
  • Company Profile
    Automate low-throughput sample preparation within your laboratory workflow using Magnetic Particle Processors: Auto-Pure20 Nucleic Acid Purification System. It for processing volumes up to 3ml, the system enable all purification steps in a single-strip of nine tubes, and support 20 processed samples per run. With the ability to go down to 50ul to release target molecules, samples such as DNA or RNA can isolated and concentrated from larger starting volumes at the same time.

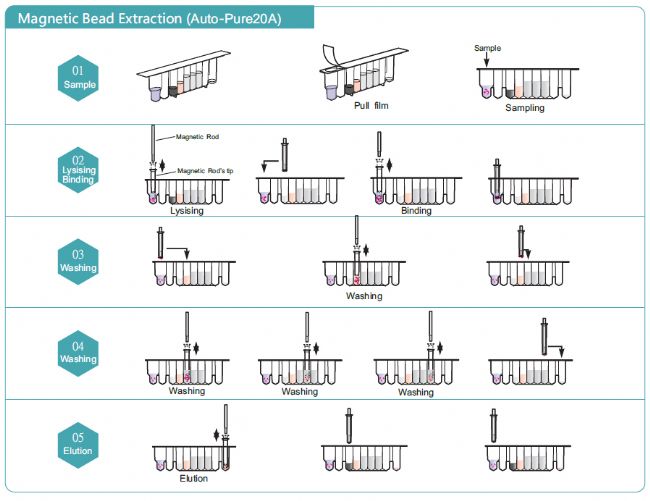

    Auto-Pure32A/Auto-Pure20A/Auto-Pure20B is a bench top device for DNA and RNA purification by using magnetic separation technology from different starting materials, such as blood, cultured cells or bacteria, tissues, cell-free body fluids and plant samples. The device is capable of using magnetic rods to transfer particles through the various purification phases of binding, mixing, washing and elution, offering a solution with minimized hands-on time. The DNA and RNA purification is of high quality and high molecular weight.
    Code                 Description
    AS-17040-00      Auto-Pure20A Nucleic Acid Purification System; AC120V/240V;50/60Hz

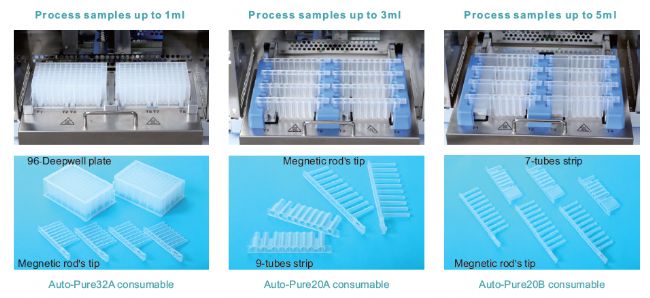

    Process samples up to 1ml, 3ml or 5ml
      With the Auto-Pure series can process up to 32 samples per run when the working volume is up to 1ml. With the ability to change the instrument configuration, the customers can elevate the sample processing volume up to 3ml or 5ml to obtain higher yields of the purified product, and the throughput up to 20 samples.

    Modular designs

    1. It is easy to use with 7 inch touch screen
    2. Very simple operation (easy to install, operate, maintain) without computer
    3. Very fast extraction protocol, 15~40 minutes / cycle depending on sample type and method
    4. Universal built-in program for easy using
    5. High purity and excellent yield of nucleic acid
    6. UV lamp to avoid cross contamination
    7. 3 shortcut key to make for easy running, stopping the magnetic beads program
    8. Open system can optimize purification proposal according to various magnetic beads kits
    9. Drawer design to prevent possible injuries
    10. With special plastic consumables to avoid cross contamination
    11. Improves workflow, and allows staff to perform other value-added tasks
    12. Ensures impurities are removed; improved sample quality leads to better downstream analyses
    13. Capable of extracting 1~20 samples or 1~32samples per run
    14. Alarm for indicating the completion of purification
    15. Pause function for emergent stop
    Technical Data
    Type  Auto-Pure20A
    Throughput  1~20
    Process volume  50~3000ul
    Collection efficiency  >95%
    Magnetic rod number  20
    Purification accuracy  100 copy sample positive rate>95%
    Stability  CV<5%
    Plate types  3ml tube strip
    Healting for lysis tube  Ambient temperature~120°C
    Heating for elution tube  Ambient temperature~120°C
    Operation  7 inch color touch screen
    Extraction steps  Lysis, Sample binding, Washing and elution
    Storage Capacity  more than 100 programs
    Protocol Management  Create, edit, delete, protocol mode
    Pollution Control  UV light
    Lighting  Yes
    Extension interface  4 standard USB port, built-in SD card
    Exhaust  Fan
    Power Supply  450W
    Dimensions  400×520×450mm
    Weight  28Kg

    Code  Description
     AS-17040-00  Auto-Pure20A Nucleic Acid Purification System, AC120V/240V, 50/60Hz
     AS-17041-01  Tube strips for Auto-Pure20A (Special design) – 3ml
     AS-17041-02  Megnetic rod’s tip for Auto-Pure20A / Auto-Pure20B
    Hangzhou Allsheng Instruments Co., Ltd. (Allsheng) was established in 2006 and Allsheng is a professional engaged in laboratory instruments, molecular biology instruments and medical equipment for R&D, production, sales and services enterprises. Allsheng company is located in Hangzhou city and employs more than 100 people.

    With strong R&D team and senior management team, Allsheng products win a good reputation from the market. Benefit from its unique design and superior performance, you can easily find Allsheng's products in Europe, U.S.A., Southeast Asia, Korea, Japan, the Middle East, and so on.
