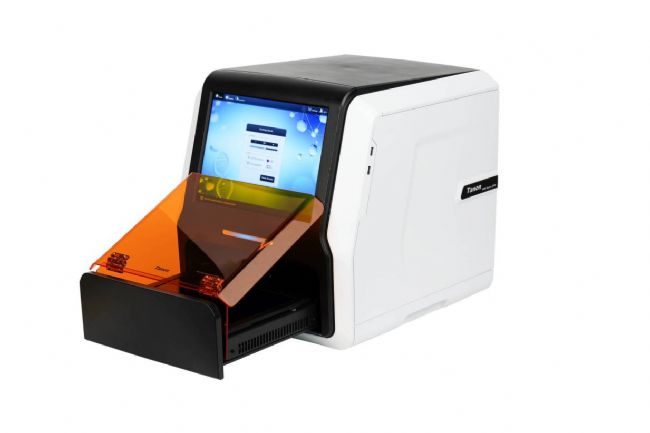

- Alpha MINI Space 2000 multifunctional gel image analysis system
- Product Detail
- Company Profile
| Product features |
| Super Vision's innovative integrated ultra clear scientific research and optical system |
| 12 inch embedded touch screen operating system |
| Automatic control of injection platform |
| Three wavelength LED transmission light source |
| Application direction |
| Tanon MINI Space 2000 Imaging System is a new model of Gel Doc. It can provide efficient, simple, stable research tool for the sample detection and analysis of scientific researchers. |
| Tanon MINI Space 2000 multifunctional gel image analysis system shall be applied to nucleic acid imaging, SDS-PAGE gel imaging, colony imaging, etc. |
| Meet TanonTM nucleic acid dye Red, TanonTM nucleic acid dye Green, ethidium bromide (EB), SYBR ® Green, SYBR ® Gold, SYBR ® Safe, GelRedTM, GelStar ®, Qdots ®, Imaging with dyes such as Coomassie Brilliant Blue and Silver Staining. |
| Technical Specifications |
| Applications: DNA/RNA/Protein gel image |
| Product Model: Tanon MINI Space 2000 |
| Camera systerm: Super Vision Camera 2000 |
| Imaging Pixels: 6.34MP（2056*3084） |
| Quantum Efficiency: 79% |
| Signal-noise ratio: ≥78db |
| Pixel density (gray levels): 0-65535 |
| Dynamic Range: >3.6 orders of magnitude |
| Lens: 20 MP ultra high definition lens（physical resolution） |
| LED excitation source: Trans-white,Trans-UVB, Trans-Blue |
| Filter wheel：Backlit filter wheels with five positions |
| Emission Fluorescence Filters: 535nm/590nm |
| Transilluminator drawer:PC controlled electric drawer |
| Image area: 14 x 21 cm |
| Sample trays :Auto identification WhiteTray/UV Tray/Bule Tray |
| Excise the bands: Auto-Safe identification UV/Blue shield |
| Touch screen functionality: Multi-touch capable 12.0 " display |
| Instrument size (L x W x H) :38 x 45 x 41cm |

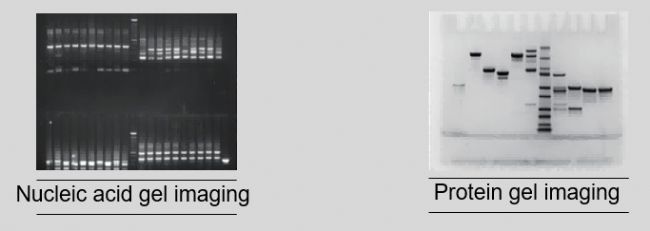

| Application case |
| DNA gel, Fam-DNA gel, Coomassie blue stain protein gel |
-
