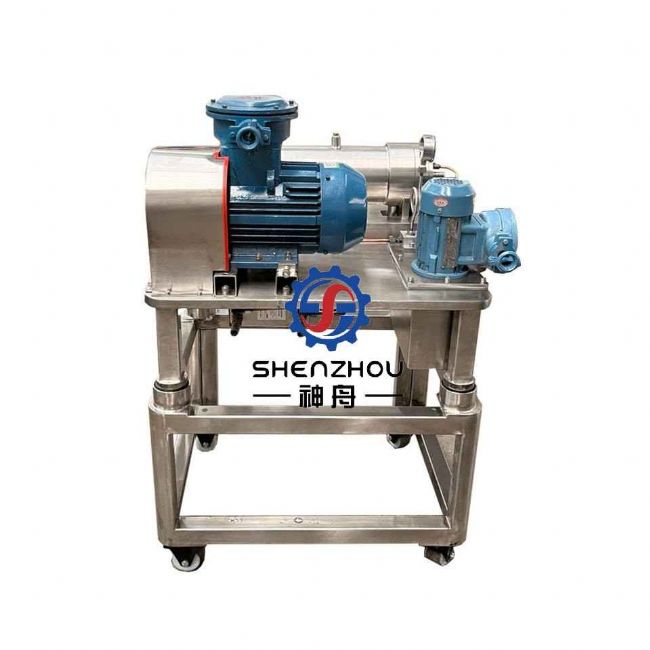

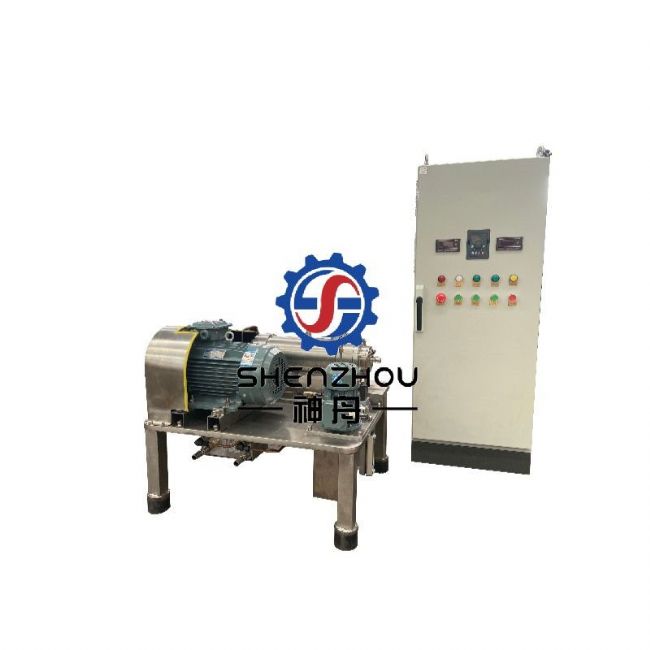

HY120 Automatic Decanter Centrifuge for Sludge treatment laboratory centrifuge
The equipment provided by SHENZHOU Centrifuge Co., Ltd. is a new, advanced, mature, complete,
safe and reliable equipment, and its technical performance meets the requirements in the technical accessories.
The equipment provided by SHENZHOU Centrifuge Co., Ltd. is a new, advanced, mature, complete,
safe and reliable equipment, and its technical performance meets the requirements in the technical accessories.
Horizontal screw centrifuge are better than the standard of JB/T502-2004 "Screw Discharge Settling
Centrifuge", and this product has passed the ISO9001-2000 quality system certification.
Laboratory Lab decanter centrifuge were developed specifically as two-phase decanter centrifuges for use in laboratories and pilot plants to enable small quantities of products to be processed at rates of between 1L/h to 200L/h in a continuous separation operation. The maximum throughput or feed rate depends on the separation characteristics of the specific products.
Centrifuge", and this product has passed the ISO9001-2000 quality system certification.
Laboratory Lab decanter centrifuge were developed specifically as two-phase decanter centrifuges for use in laboratories and pilot plants to enable small quantities of products to be processed at rates of between 1L/h to 200L/h in a continuous separation operation. The maximum throughput or feed rate depends on the separation characteristics of the specific products.
The laboratory decanters are used for solid-liquid separation, their principal application being the separation of liquid-based suspensions of organic and inorganic solids.
Advantage:
1. Universal settling centrifuge
2. Quick disassembling within 30 minutes
3. Minimal material residue, screw and drum clearance less than 0.3mm
4. Simple and straightforward control panel and operation
5. Compact design
Product parameter
Advantage:
1. Universal settling centrifuge
2. Quick disassembling within 30 minutes
3. Minimal material residue, screw and drum clearance less than 0.3mm
4. Simple and straightforward control panel and operation
5. Compact design
Product parameter
Product ParameterProduct Parameter
|
Model
|
HY 80
|
HY 120
|
|
Drum diameter (mm)
|
80
|
120
|
|
Half cone Angle
|
5°
|
6°
|
|
Feed tube diameter (mm)
|
12
|
18
|
|
Speed (rpm)
|
10000
|
8000
|
|
Capacity (L/H)
|
5-100
|
50-500
|
|
Length to diameter ratio
|
3.75
|
3.85
|
|
Motor power (kw)
|
4
|
7.5
|
|
Maximum separation factor
|
4400
|
4400
|
|
Weight (kg)
|
160
|
360
|
|
Overall dimensions (mm)
|
950*650*550
|
1150*750*650
|
Operation steps
The working principle of horizontal screw centrifuge is very simple. It has been known by the public for a century. The drum and screw are supported by separate suspension.The material enters through the inlet pipe and accelerates into the core drum body through the drum.
-
Liaoyang Shenzhou Machinery Equipment Co., Ltd is a professional for supplier of pharmaceutical and chemical machine in China.We have a well-experienced team and a professional design institute,With rich experiences in pharmaceutical machinery and equipment including packing machine, centrifuge, falling film evaporator, distillation,mixer, tablet press machine, suppository production line,dryer,capsule filling machine ,capsule and so on.
