TUBULAR CENTRIFUGE CLASSIFICATION
SZGF Separation Tubular Centrifuge
(Light liquid-heavy liquid-solid phase)
The GQ type is mainly used for a variety of difficult-to-separate suspensions in the separation industry, and is especially suitable for the separation of solid-liquid two-phase separations with thin concentration, fine particles and small specific gravity differences.
SZGQ Working Principle:
1. The centrifuge rotates at a high speed to reach a suitable working speed (the speed can be adjusted via the control panel), and the mixed suspension is continuously fed from the bottom, and the suspension are layered under the action of centrifugal force;
2. The density of the liquid in the suspension is relatively small, and it spirally rises gradually from bottom to top and then continuously discharges from the clear liquid outlet on the upper part of the rotor;
3.The solid phase is relatively heavier, and it will settle inside the bowl. After the solid is collected, turn off the
centrifuge, and manually remove the rotor for slag cleaning;
4. After cleaning the slag, you need to reset the rotor installation, and then start the next separation process.
2. The density of the liquid in the suspension is relatively small, and it spirally rises gradually from bottom to top and then continuously discharges from the clear liquid outlet on the upper part of the rotor;
3.The solid phase is relatively heavier, and it will settle inside the bowl. After the solid is collected, turn off the
centrifuge, and manually remove the rotor for slag cleaning;
4. After cleaning the slag, you need to reset the rotor installation, and then start the next separation process.
SZGQ Clarification Tubular Centrifuge
(Liquid phase-solid phase)
The GF type is mainly used for various difficult-to-separate suspensions in the separation industry, and is especially suitable for liquid-liquid separation with small specific gravity differences and liquid-liquid-solid three-phase separation with a small amount of impurities.

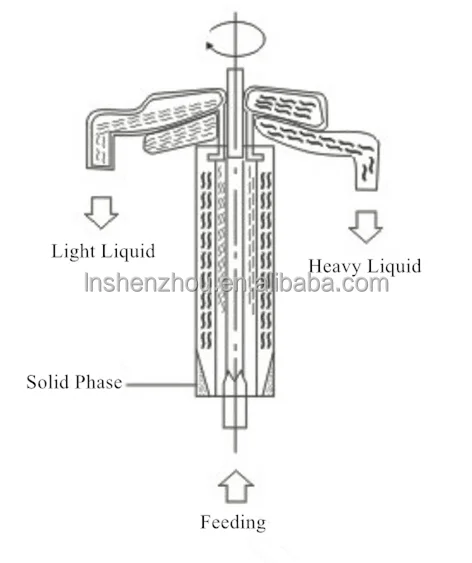

SZGF Working Principle
1.The centrifuge rotates at a high speed to reach a suitable working speed (the speed can be adjusted control panel), and the mixed suspension is continuously fed from the bottom, and the suspension are layered under the action of centrifugal force;
2.The two liquids in the suspension have a difference in density and are incompatible with each other. The liquid phase spirally rises gradually from bottom to top to the upper part of the rotor. The liquid phase with a smaller density is discharged from the light liquid outlet, and the liquid phase with a larger density is discharged from the heavy liquid outlet;
3.The solid phase density is the largest, and it will settle inside the bowl. After the solids are collected, turn off the
centrifuge, and manually remove the rotor for slag cleaning;
4. After cleaning the slag, need to re-install the rotor, and then start the next separation process.
2.The two liquids in the suspension have a difference in density and are incompatible with each other. The liquid phase spirally rises gradually from bottom to top to the upper part of the rotor. The liquid phase with a smaller density is discharged from the light liquid outlet, and the liquid phase with a larger density is discharged from the heavy liquid outlet;
3.The solid phase density is the largest, and it will settle inside the bowl. After the solids are collected, turn off the
centrifuge, and manually remove the rotor for slag cleaning;
4. After cleaning the slag, need to re-install the rotor, and then start the next separation process.
-
