Smart Type 3 Hazardous Chemical Safety Cabinet

Functions
The smart chemical safety cabinets have functions including fireproof, explosion-proof, corrosion resistance, anti-theft, moisture-proof, ventilation, rat proof, etc

Features
1. Display screen: a 7-inch touch screen is installed on the top.
2. Anti-theft: anti-theft mechanical lock and LCD password lock are configured to meet the requirements of GA/T 73, achieving double-person double-lock management.
3. Ventilation: several time periods can be set every day for exhaust and ventilation.
4. Monitoring: user can monitor the temperature, humidity and 2-way VOC (volatile organic compounds) inside the hazardous chemical storage cabinet on site.
5. Alarm reminder: when the temperature, humidity and VOC concentration inside the storage cabinet exceed the standard values, the cloud server will continue to send alarm reminder information/message to the laboratory management personnel, users and persons in charge every 1 minute until the alarm status lifted.
6. Linkage exhaust: when the temperature, humidity and VOC concentration inside the storage cabinet exceed the standard values, the storage cabinet on site will automatically send out strong sound and light alarm reminder, and the exhaust device will be linked to reduce the temperature, humidity and VOC concentration inside the storage cabinet in time.
7. Remote control: the temperature, humidity, VOC concentration and other values inside the hazardous chemical storage cabinet can be checked online from time to time through the mobile phone and computer, and remote online viewing and control can be realized.
8. Data query: user can query the data(temperature, humidity and VOC values) within 30 days inside the cabinet.
9. Purification and filtration: the top of the storage cabinet is equipped with a filter module device to purify the volatile organic compounds (VOC) inside the cabinet from time to time.

Configuration

Dimension	*1860900510mm* - 41gal 1980900510mm - 45gal 1200900510mm- 28gal
Door Type	double door / manual
Lock Configuration	Double locks (including electronic lock)
Shelf	3 pcs PP stepped adjustable shelves
Color	Yellow/Blue/Red
Note	Other dimension can be customized

Specifications

Item	Description
Temperature Measurement Function	Range: -40~120℃; Accuracy: +/-0.3℃.
Humidity Measurement Function	Range: 0%~100%RH; Accuracy: 10%~90%RH, +/-2%RH.
VOC Measurement Function	High sensitivity to VOCs and odorous gases
Display Screen	7 inch touch screen, resolution 800*480, 65536 color
Alarm Function	The main control board can be connected with sound and light alarm, 24VDC
Alarm Setting	The alarm threshold can be set according to temperature&humidity, VOC concentration
Fan Control	Support 24VDC fan connection
Light Control	Support 24VDC light connection
Communication Interface	GPRS wireless communication
Remote Supervision Function	The measured values of temperature, humidity and VOCs can be viewed in real time via mobile phones or computers.
Rmotoe Control Functions	The fan, sound& light alarm, light, etc can be controlled by mobile phone terminal and computer terminal.
Certificates	Explosion-proof testing, fire resistance testing, ROHS and CE

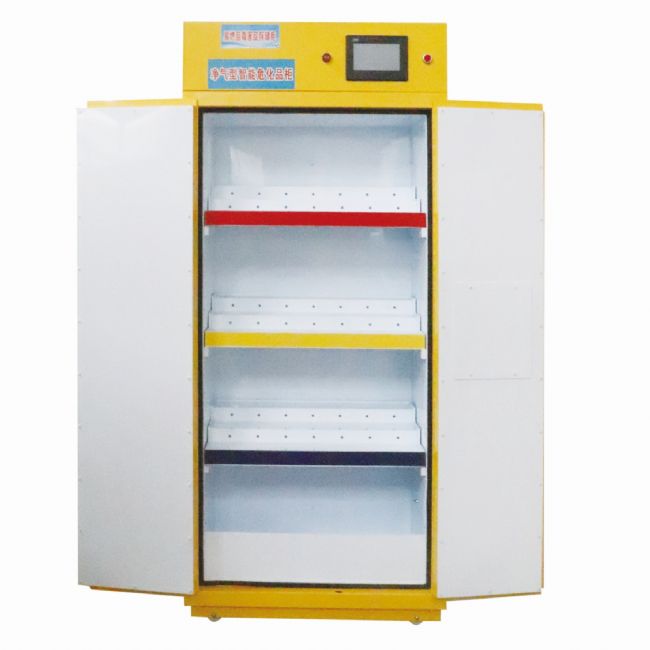

Detailed Pictures

Remote Control Poison Safety Cupboard Smart Type 3 Flitering Hazardous Chemical Safety Cabinet

Packaging&Shipping

Hot Sale All Steel Lab Safety Storage Cupboard All Steel Chemical Flammable Explosion Proof Cabinet

Because the weight and dimension are big, generally the lab benches, fume hoods or lab cabinets shall be shipped by Sea;
They would be packed in cartons (FCL shipping) or plywood boxes(LCL shipping) in assembled or disassembled state.

Of course they can be shipped by Air or Courier if you can accept the shipping cost!
Airlines: Pure Cargo plane, EY, EK, ET, QR, TK, SQ,CA, CZ, KQ, NYK, etc
Courier: DHL, Fedex, EMS, UPS,TNT, Aramex, etc

Application
- Electronics industry: dust free chamber, waste water& gas discharge from semiconductor factory, and equipment of related industries, etc
- Chemical industry: acid - resistant&alkali - resistant solution tank, washing tower, air duct and air pollution treatment equipment, etc
- Electroplating industry PCB plating, hardware plating, plastic plating, electrolyte tank and cleaning, filtration equipment, etc
- Food industry: food processing equipment, containers and kitchen cutting boards, etc
- biological pharmacy, biological analysis, plant culture, environmental test, electronic instruments and scientific research, etc

Company Profile
Xuecheng Global Trader Co., Ltd is one professional industry and trade company for lab furniture, integrating production, R&D, sales, installation and after-sale service, located in beautiful Olympic Sailing City- Qingdao, China.

After years' development, we have grown into one diversified company, engaged in lab furniture, lab water purification system, lab equipment, medical equipment, etc

Basicl Model Poison Safe Storage Cupboard Type 1 Smart Hazardous Chemical Safety Cabinet

Manufacturing &Shipping Process
1. Raw materials preparation (kinds of boards, sheets)
2. Cutting
3. Punching
4. Welding
5. Bending
6. Baking and Painting(semi- product)
7. Assemly
8. Packing
7. Shipping
