Product Description:

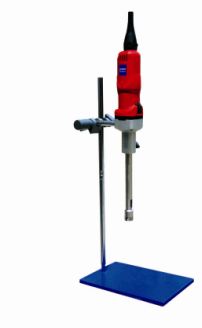

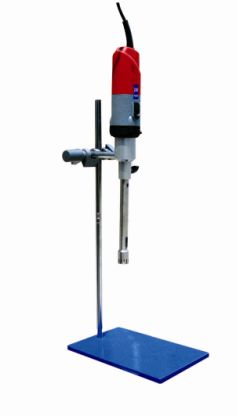

XO18 Model High Shear Scattered Mulser equipped with excellent motor, free and convenient,
may handheld operate. Rotate speed arrives: 27000rpm, linear velocity reaches: 25m/s,
20 kinds of working head optional, may run with pressure. Easy to satisfy diverse dispersion,
emulsification and homogenization.
Technical Parameters:
|
Model No.
|
Capacity (water)
|
Linear velocity
|
Materials
|
Temp.
|
Compression resistance
|
Valid length
|
Supreme viscosity
|
|
XO18-5G
|
0.2-8ml
|
3m/s
|
SUS304/316L/PTFE
|
﹤120℃
|
NO
|
35mm
|
﹤80CP
|
|
XO18-6G
|
0.2-10ml
|
5m/s
|
SUS304/316L/PTFE
|
﹤120℃
|
NO
|
45mm
|
﹤100CP
|
|
XO18-8G
|
10-60ml
|
8m/s
|
SUS304/316L/PTFE
|
﹤120℃
|
NO
|
100mm
|
﹤100CP
|
|
XO18-10G
|
30-150ml
|
10m/s
|
SUS304/316L/PTFE
|
﹤120℃
|
NO
|
120mm
|
﹤200CP
|
|
XO18-18G
|
50-1500ml
|
18m/s
|
SUS304/316L/PTFE
|
﹤120℃
|
NO
|
180mm
|
﹤2000CP
|
|
XO18-18F
|
50-1500ml
|
18m/s
|
SUS304/316L/PTFE
|
﹤120℃
|
NO
|
180mm
|
﹤1200CP
|
Config Specification:
Model NO.: XO18;
Power: 500W/320W;
Power source: 220V/50HZ;
Rotate speed: 10000～27000rpm;
Rotate speed display mode: scale display;
Speed adjustment mode: stepless speed regulating;
Capacity: 0.2～5000ml (H2O);
Standard working head:18F;
Contactor material: SUS304/SUS316L;
Bushings material: PTFE;
Applicable temp.: ≦120℃.
