- Clinics Analyze Equipment Nucleic Acid Sequencing

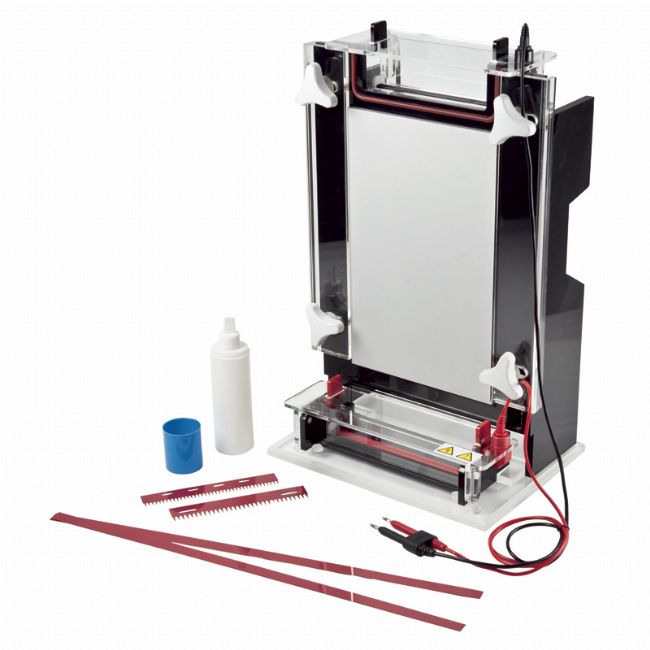

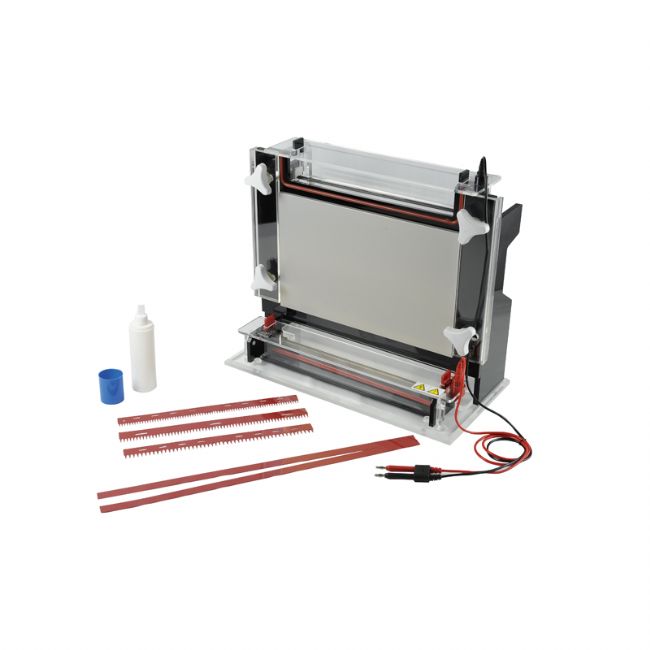

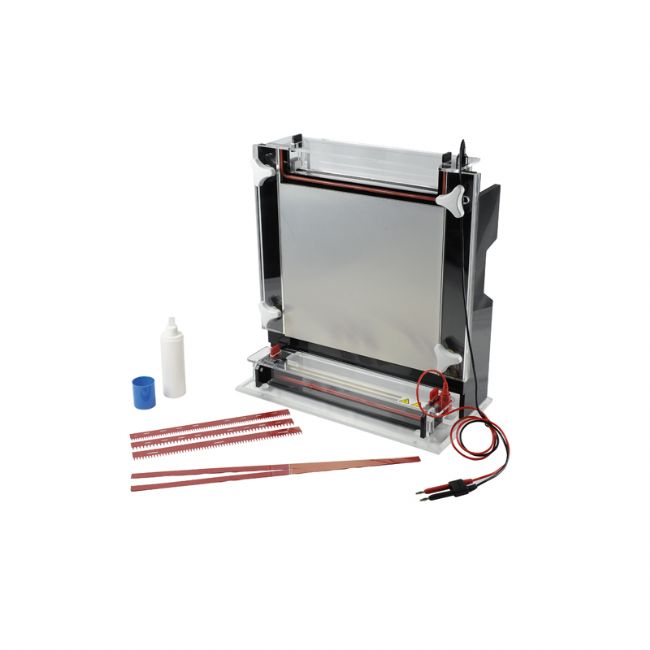

Product Image
FeaturesNucleic Acid Sequencing products are designed for AFLP analysis, different display,SSR and SSCP research. They are fit for heteroduplex, DNA foot printing, RNase protection test, S1 Nucleic acid enzyme figures and Primer Extension experiments.
• Simple operation, only four fastening knobs needed.
• 50% buffer savings compared with traditional tanks.
• Unfolded electrodes make repair and parts replacement easy and quick.
• Special heat dissipation processed aluminum plate firmly clings to the gel plates, which effectively guarantees the gel temperature is even, ensuring the electrophoresis trip is straighter.• Abundant buffer not only guarantees cooling effects, but also keeps the pH Value stable during the whole experiment process.
• Auto-switch-off when the lid is removed.
• 50% buffer savings compared with traditional tanks.
• Unfolded electrodes make repair and parts replacement easy and quick.
• Special heat dissipation processed aluminum plate firmly clings to the gel plates, which effectively guarantees the gel temperature is even, ensuring the electrophoresis trip is straighter.• Abundant buffer not only guarantees cooling effects, but also keeps the pH Value stable during the whole experiment process.
• Auto-switch-off when the lid is removed.
|
Model
|
FSF-CX1B
|
FSF-CX2B
|
FSF-CX3B
|
|
Glass plate size(W*L)
|
200*450 mm
|
350*450 mm
|
350*350 mm
|
|
Gel Size(W*L)
|
180*420 mm
|
330*420 mm
|
330*320 mm
|
|
Gel thickness
|
0.4mm
|
0.4mm
|
0.4mm
|
|
Gel amount
|
1 pc
|
1 pc
|
1 pc
|
|
Sample volume
|
(0.4mm)32,39wells
|
(0.4mm)50,62,74,100wells
|
(0.4mm)50,62,74,100wells
|
|
Buffer Volume
|
500ML
|
750ML
|
750ML
|
|
Dimension(L*W*H)
|
310×230×500mm
|
455×230×500mm
|
460×230×400mm
|
|
Net weight
|
11kg
|
16.5kg
|
13.2kg
|
-
Professional manufacturer of Laboratory equipment:
Drying Oven, Incubator, Heating Mantle, Magnetic Stirrer, Water Baths, Laminar Flow Cabinet, Furnace, Autoclave, Claminar Chamber, Plant Growth Chamber and etc.
All our FAITHFUL products have passed the CE Certificate.
