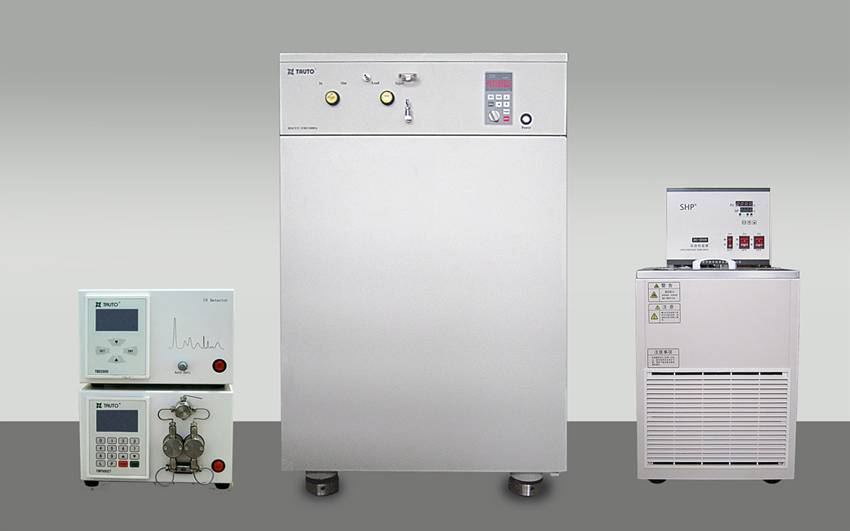

High Speed Countercurrent Chromatography HSCCC
High Speed Countercurrent Chromatography HSCCC
Place of Origin:
China
Brand:
Shanghai Tauto Biotech Co., LTD.
Model:
TBE-300C
Price:
Hits:
4678
Updated:
2/26/2014
  • Product Detail
  • Company Profile

    Semipreparative Style

    Specifications

    Power Source 220V±20V 50±0.5Hz
    Power 200 W
    Flow rate range 5.0-30 ml/min
    Column Capacity 300 ml
    Sample loop 20 ml
    Sample load mg to 10g
    Revolution speed range 800-1000 rpm
    Temperature control module Temperature range 5 ~ 40 ℃
    Accuracy ± 0.5 ℃
    Pressure range 0-2MPa
    Monitor UV detector with Hg lamp 254,280nm (Standard Accessories), other detectors such as conductivity detector , pH detector , ELSD , MS etc. can also be used.
    Dimensions 496×755×854 mm
    Net Weight 180kg




    Main Advantages

    1. Higher separation efficiency/Shorter separation time
    2. Higher sample load
    3. Quicker separation flow rate
    4. Higher retention rate
    5. Greater repeatability
    6. Separate the compounds that other models can’t do
    7. Two pumps balancing-shorten balancing time



    Description

    The machine adopts the design of 3 coiled column connected in series. So it can reach the perfect balance when revolving at a very high speed. The running is stable and the noise is notably low.


    The separation process is swift and the operation is convenient. The balance of the machine will not be affected by changes of the density of the solvents. The stability is guaranteed.


    No irreversible absorption waste.
    High recovery.



    Other features

    It integrates a thermostatic module which can control the temperature of experiment precisely. The application range of the experiment is expanded and the repeatability is boosted. It is useful in exploring the experiment conditions at early stage. Also there are more options for choosing a suitable solvent system. It is especially suitable for separating the active ingredients sensitive to the environment temperature.

    bio-equip.cn
    Shanghai Tauto Biotech Co. Ltd., located in Zhangjiang High-tech Park,pharmaceutical science center of China, is the national patent owner of multi-partitioning-column high speed countercurrent chromatography (HSCCC) and industry leader in the manufacture of HSCCC instruments.

    Our company itself has manufactured a series of patented HSCCC equipment, and can provide science research institutes with the most advanced technology and equipment for isolation and purification, and also develop new products based on the request of customers.

    In addition, Our company has gained some excellent achievements in the development of natural medicines from natural plants and animals primarily by application of Hi-Tech techniques like HSCCC. The valid monomer available for medicine with high purity was successfully extracted from dozens of natural plant, such as DAIDZIN, DAIDZEIN, ISORHAMNETIN and so on, whose purity grade was higher than 99%.
