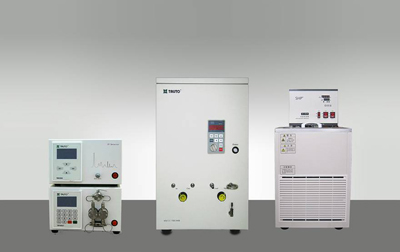

TBE-300B whole system is an integration of TBE -300B, pump, detector, workstation and circulated water batch which are all manufactured by us in order to meet customers’ request. It need not any solid support carrier and has unique advantages in the isolation and purification work of natural products and antibiotics.

　　　　　　　　　　　　　COOPERATION DECLARATION

　　　Advantages of the TBE-300B whole system:

Convenient operation
Dual channel pump, gradient elution, system balanced swiftly
Solvent changed conveniently, on-line monitoring,
Great sample load
can reach up to gram level
High separation efficiency
Suitable for isolation and extraction of natural products, the purity can be up to 99%
High recovery rate
Eliminate the irreversible absorption loss and denaturalization caused by solid support carriers.
Multi separation coils
Three separation coils are well integrated and the balance of the system will not be influenced when the solvent system is changed. Working stability is high.
Online detection
Temperature control module
Improve the repetitiveness, accuracy of the experiment effectively via avoiding the changes of environment. Helpful for optimize the separation method.

System Specifications and Working Data

Product	Model	Description	Qty
HSCCC	TBE-300B	Power Source: 220V±20V or 110V±10V or according to the customer’s request; 50±0.5Hz Flow rate range: 2.0-4.0ml/min Column Capacity: 300 ml; Sample loop: 20 ml Sample load: mg to 10g; Revolution speed: 800-1000 rpm Pressure range: 0-2MPa Revolution speed range: 700-1000 rpm	1
Pump	TBP5002	Flow rate:0.1-50ml/min; Increment:0.5ml/min? ;Pressure range :0-2Mpa Flux calibration, Over pressure protection; Dual channel design, small impulse	1
Detector	TBD2000	Light source: Deuterium lamp Wavelength: 214, 254, 280,340,365, 405 nm(choose four); Baseline noise: ≤0.00025A Scaling range:0-100%T,2A,1A,0.5A,0.2A, 0.1A,0.05A; Flow cell: 75ul	1
Detector	UV500	Wavelength: full wavelengths from 190-700nm	1
Circulated water Bath	DC0506	Temperature control range: -5~95 ℃; Precision: 0.1 ℃ Capacity of circulating water: ≧8L /min	1
Fraction collector	N/A	Do not include. If you want, please let us know.
