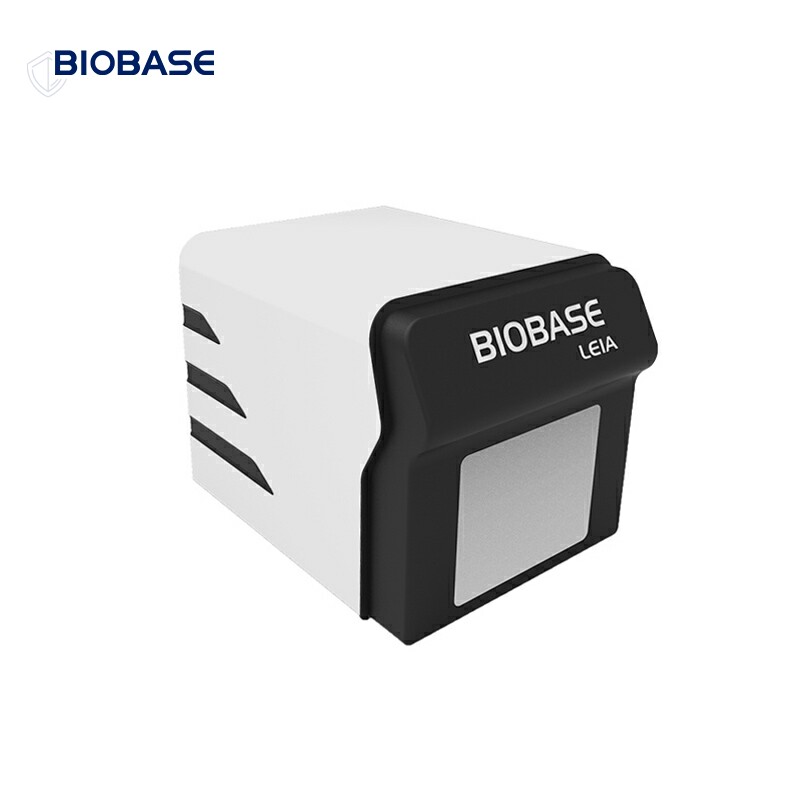

Fluorescent Quantitative Detection System
Product Description
Features:

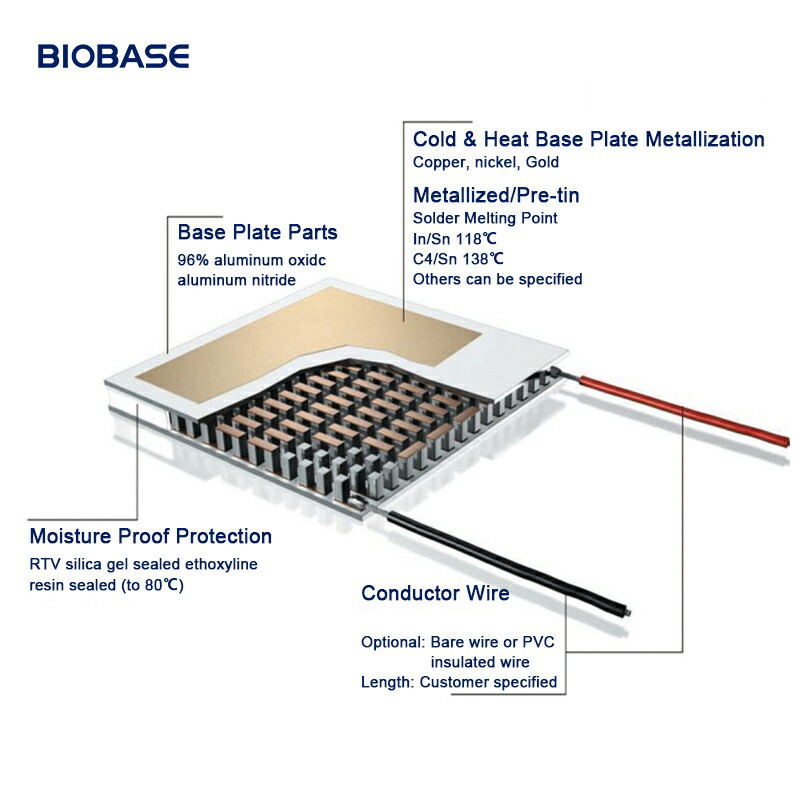

l Excellent temperature control performance of the instrument, the maximum temperature rise and fall ≥5.0℃/s.

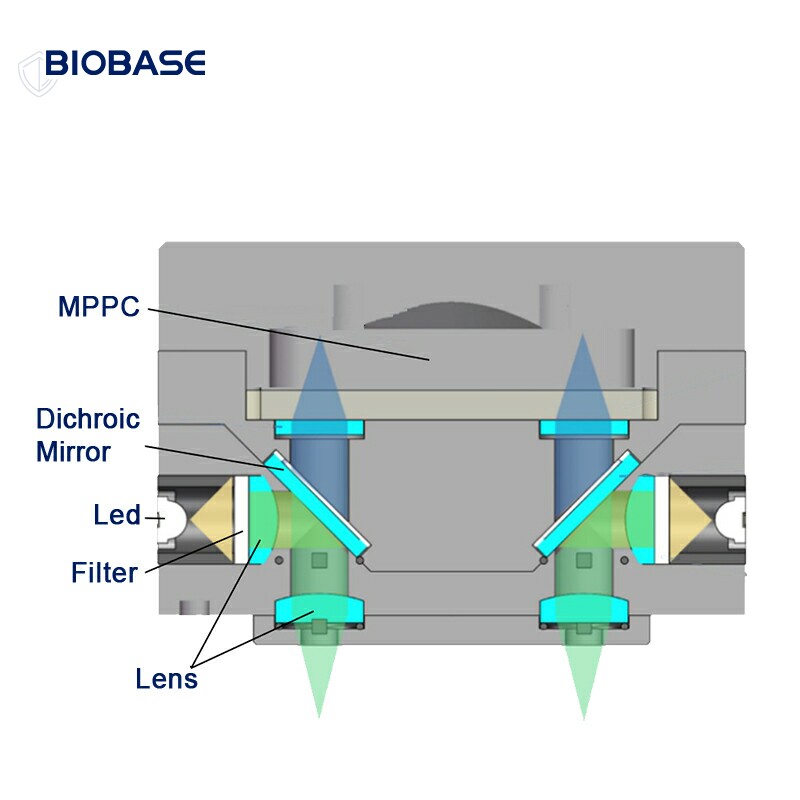

l No edge effect, no optical path correction, top excitation/detection, non-contact measurement.
l Fluorescence detection adopts MPPC sensor with high sensitivity.
l Long-life LED light source, stable emission wavelength, maintenance-free.
l 4-channel fluorescence detection, no cross interference between channels.

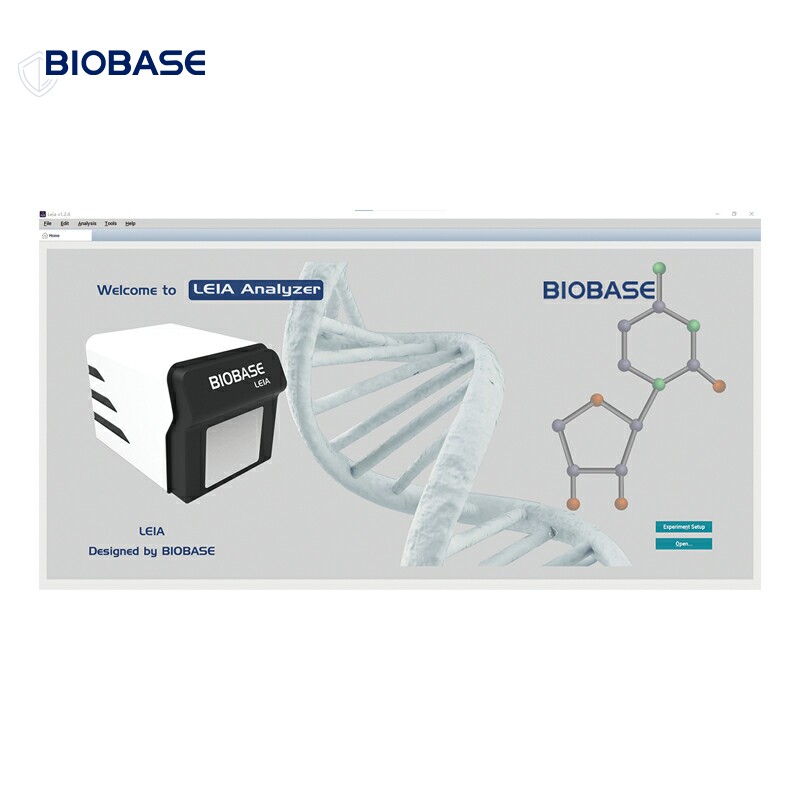

l User-friendly and fully functional software, flexible program setting, comprehensive analysis and reporting functions, all the parameters can be stored.
l No edge effect, no optical path correction, top excitation/detection, non-contact measurement.
l Fluorescence detection adopts MPPC sensor with high sensitivity.
l Long-life LED light source, stable emission wavelength, maintenance-free.
l 4-channel fluorescence detection, no cross interference between channels.
l User-friendly and fully functional software, flexible program setting, comprehensive analysis and reporting functions, all the parameters can be stored.
Features
|
Product Name
|
Fluorescence Quantitative PCR Detection System
|
|||
|
Model
|
LEIA-X4
|
|||
|
Sample Capacity
|
96x0.1ml PCR plate, 12x8-strip tubes, 96*0.1ml single tube (Transparent Cover)
|
|||
|
Reaction System
|
10~50μl
|
|||
|
Dynamics Range
|
1-1010 copies
|
|||
|
Channel
|
4
|
|||
|
Emission Light
|
LED
|
|||
|
Detector
|
MPPC
|
|||
|
Detection Path
|
F1
|
F2
|
F3
|
F4
|
|
Suitable Probe/Dye
|
FAM/SYBR GREEN
|
VIC/JOE/ HEX/TET
|
ROX/TEXAS-RED
|
Cy5
|
|
Excitation Wavelength
|
455~680nm
|
|||
|
Detection Wavelength
|
510~730nm
|
|||
|
Fluorescence Detection Repeatability
|
CV≤2%
|
|||
|
Fluorescence Detection Accuracy
|
CV≤3%
|
|||
|
Fluorescence Detection Linearity
|
r≥0.995
|
|||
|
Module Temp. Range
|
4-99℃(resolution:0.1℃)
|
|||
|
Ramp Rate
|
5.0℃/s(max)
|
|||
|
Temp. Accuracy
|
±0.3℃
|
|||
|
Temp. Uniformity
|
≤ ±0.3℃
|
|||
|
Temp. Control Mode
|
Block mode
|
|||
|
Gradient Temp. Range
|
1-36℃
|
|||
|
Hot-Lid Temp. Range
|
100℃, Automatic Hot-lid
|
|||
|
Scanning Mode
|
Full plate scanning
|
|||
|
Programming
|
Max 100 Segments for Each Program, Max 99 Cycles
|
|||
|
Operation Mode
|
Continuous
|
|||
|
Scanning Time
|
8.5s
|
|||
|
Special Function
|
Absolute quantitative automatic analysis, relative quantification, SNP Analysis, melting curve analysis, etc.
|
|||
|
Operation System
|
Microsoft: Windows10
|
|||
|
Power Supply
|
220V,50/60HZ; 110V,60HZ
|
|||
|
Dimension(L*W*H) Mm
|
375*490 *365
|
|||
|
Port Method
|
USB Port
|
|||
|
Packing Size(L*W*H) Mm
|
645*565 *605
|
|||
|
Gross Weight
|
45
|
|||
Related Product
One-Stop Purchase
|
Air protection product
|
Cold chain product
|
General lab equipment
|
Analytical instrument
|
|
biosafety cabinet
|
medical refrigerator
|
autoclave
|
Chemistry Analyzer
|
|
laminar flow cabinet
|
blood bank refrigerator
|
incubator
|
ELISA Reader&Washer
|
|
fume hood
|
-25 freezer
|
drying oven
|
Hematology Analyzer
|
|
clean room
|
-40 freezer
|
centrifuge
|
Electrolytic analyzer
|
|
PCR cabinet
|
-60 freezer
|
spectrophotometer
|
Urine Analyzer
|
|
etc.
|
-86 freezer
|
shaker
|
etc.
|
|
Delivery time
|
In stock ,can be shipped immediately after payment
|
|
Delivery time
|
7-15 days after payment
|

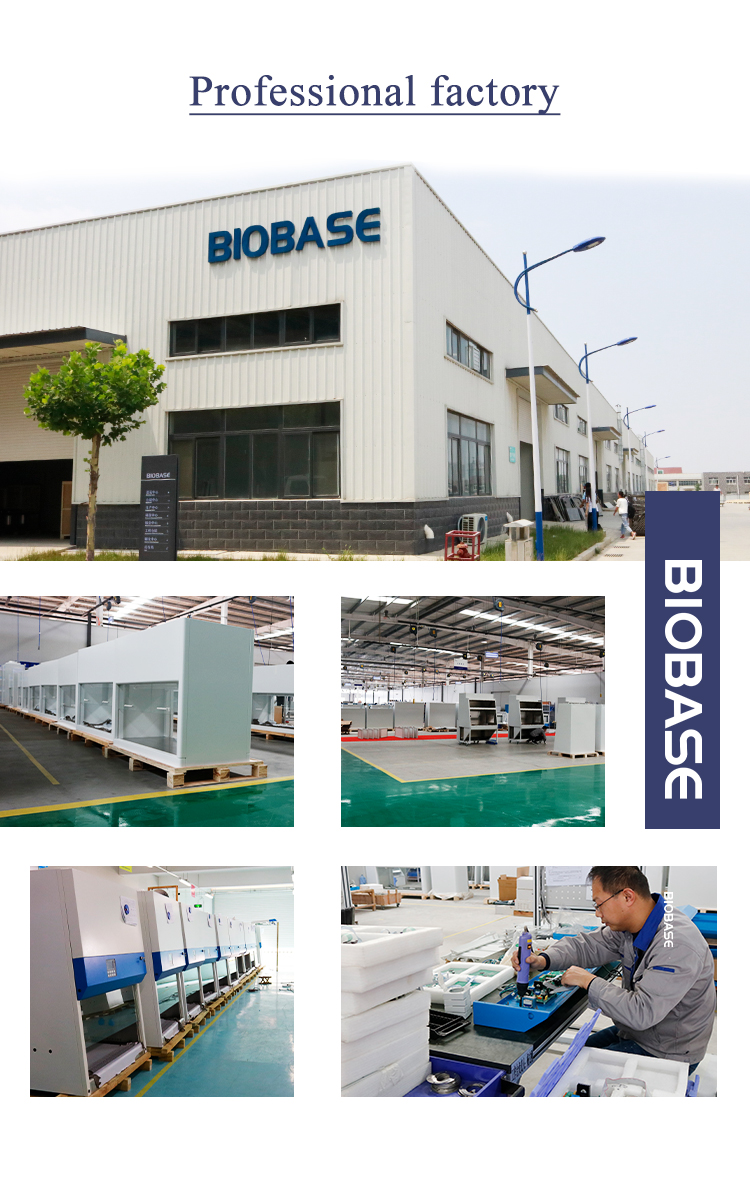

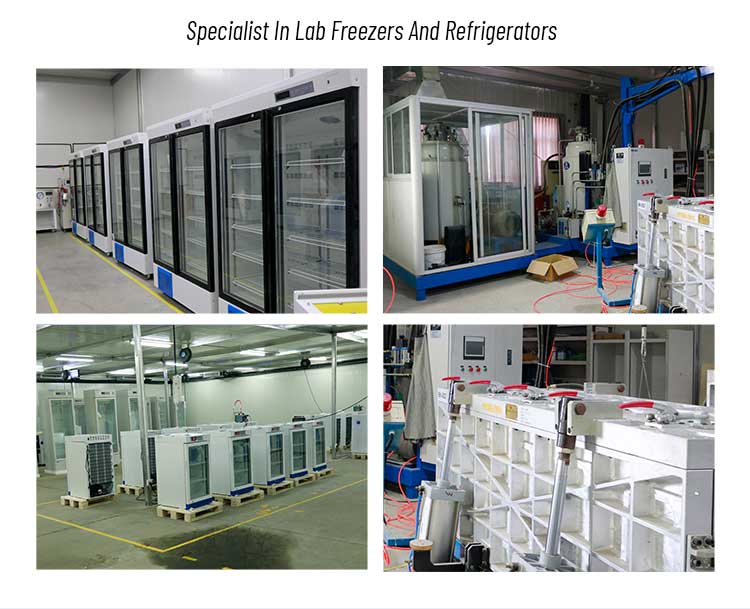

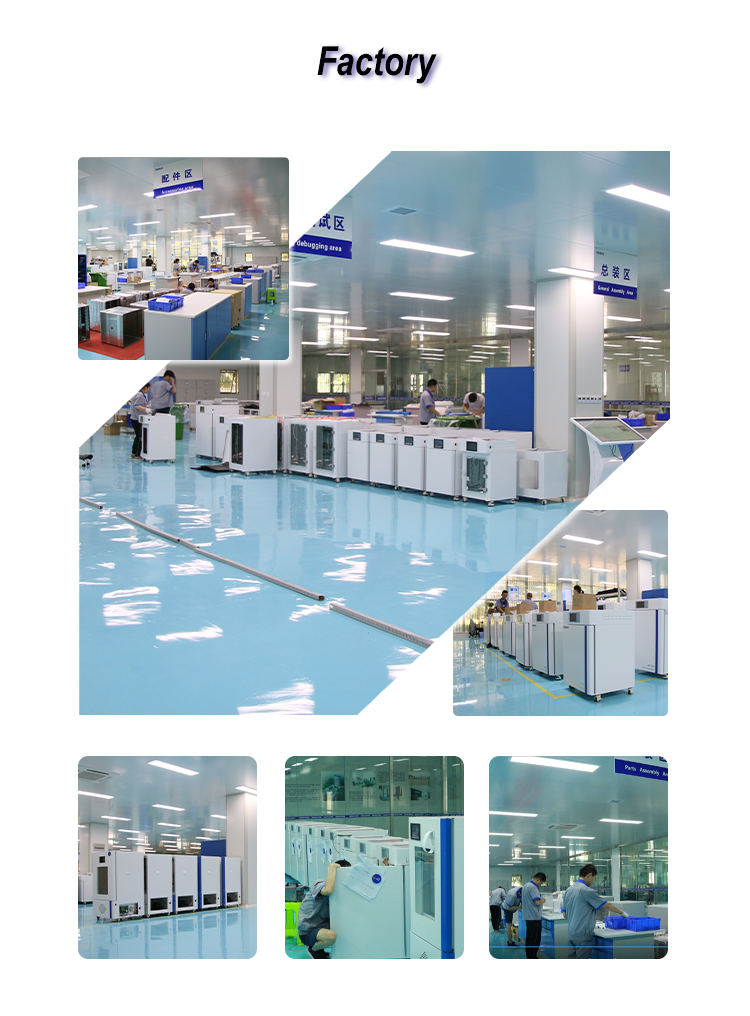

Company &Factory overview
BIOBASE Air protection Department
BIOBASE Disinfection And Sterilization Department
BIOBASE Cold Chain Department
BIOBASE Biochemical Department
BIOBASE Cabinet department

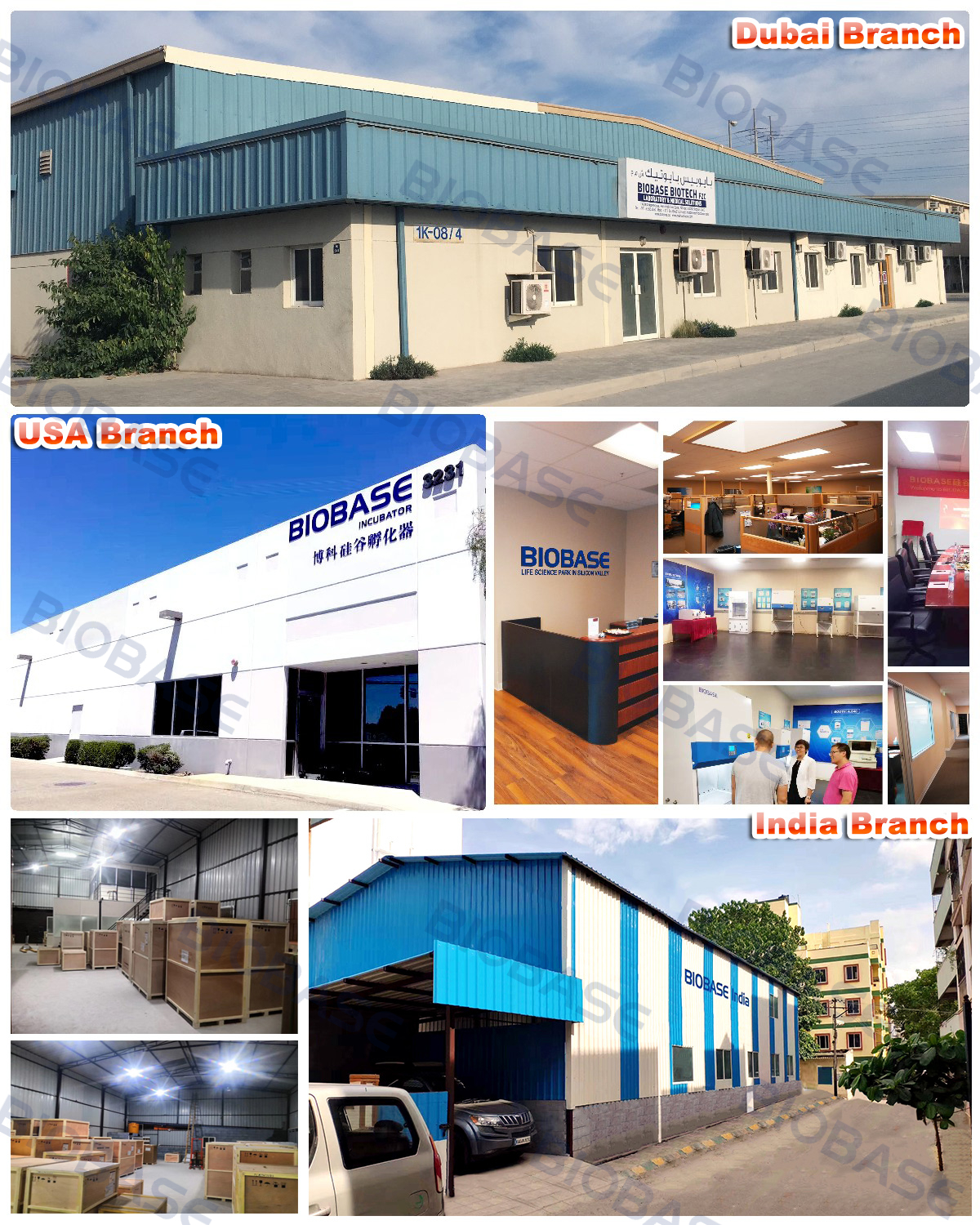

BIOBASE Overseas offices
