APW-200 Microplate Washer

Product Feature

1. Low residual liquid, each well ≤1µL

2. Compatible for microplates: flat, U, V, C bottom

3. 4.3 inch color LCD display, easy to operate

4. Washing head position can accurate to 0.1mm

5. Wash parameters can be set to make sure the best washing effect

6. Support external U-disk, for program exporting

7. 100 programs can be saved

8. Uniform volume mark make it easy to measure the liquid

9. Automatic alarm for full liquid

10.Strainer in the pipeline and automatic washing functions avoid the liquid blocking the pipeline.

Easy Operation

The APW-200 Microplate Washer has 4.3 inch LCD display

with friendly interface, U-disk can be used to transfer the

datas between the PC and the washer or between two

washers, it can also be used to upgrade the software. The

washing head can be replaced easily for different kinds of

microplates.

Safety and reliable feature

The APW-200 Microplate Washer is equipped with liquid

position sensor to avoid the washing liquid used up or waste

liquid from overflow, minimize the risk and avoid the liquid

being sucked into the pump to break the equipment. Besides

it has shaking function, which can improve the washing

efficiency.

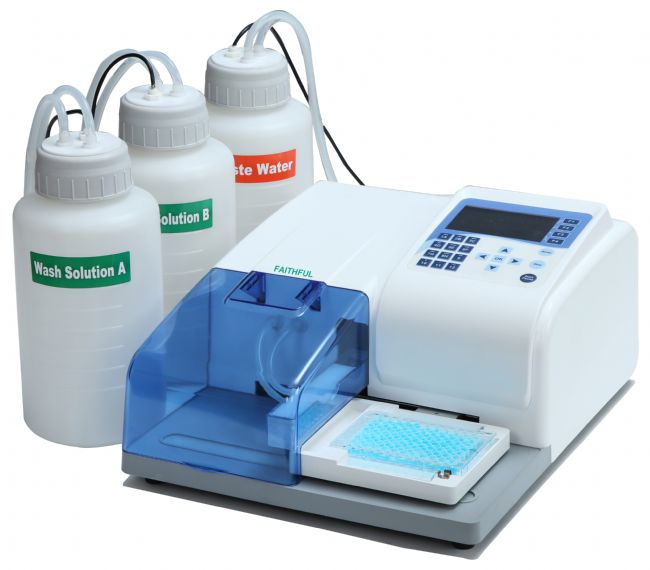

Product Image

Technical Parameters

Residual liquid	≤1µL
Washing heads	1x8 or 1x12 heads
Plate types	Flat, U, V, C bottom
Washing method	Single-point, two points and multi points
Washing volume	50-2000µL, increase by 50µL
Washing times	99 times
Washing channels	3
Bottles	3pcs 2.5L washing bottle, 1pcs 2.5L waste bottle
Dispense accuracy	≤2%@300µ
Liquid injection accuracy	CV≤1.5% @ 300µL
Soaking and shaking time	19'59"
Data connection	USB
Weight	12kg
Power supply	AC110-240V, 50/60Hz
