ZYCL Water Ultrafiltration System

ZYCL series of ultrafiltration fully automatic mineral water plant 's structure is simple, the use of ultrafiltration membrane purification and separation technology, thoroughly filter out water bacteria, rust, colloid, macromolecular organic matter and heat source, to retain beneficial to human health trace elements, is purified water microbes And turbidity and other key indicators better than bottled drinking water health standards.

Parameter of Water Ultrafiltration System

1. Water production: 0.5m3-1000m3(according to customers' requirement)

2. Ultrafiltration membrane diameter size: 0.001-0.01um.

3. Working pressure: 0.2-0.4MPa

4. Water temperature: 10-60 ℃

Model List of Water Ultrafiltration System

No.	Model	Water Yield (L/H)	Voltage/ Power (V/Kw)	Body Size *(LWH mm)*	Water Tank (L/Material)
1	ZYCL-500	500	380/1.5	15006001100mm	500/PE/SS
2	ZYCL-1000	1000	380/1.5	15006001100mm	1000/PE/SS
3	ZYCL-2000	2000	380/1.5	16508001200mm	2000/PE/SS
4	ZYCL-3000	3000	380/1.5	16508001200mm	3000/PE/SS
5	ZYCL-4000	4000	380/2.0	16508001200mm	4000/PE/SS
6	ZYCL-5000	5000	380/2.0	16508001200mm	5000/PE/SS

Technical Support

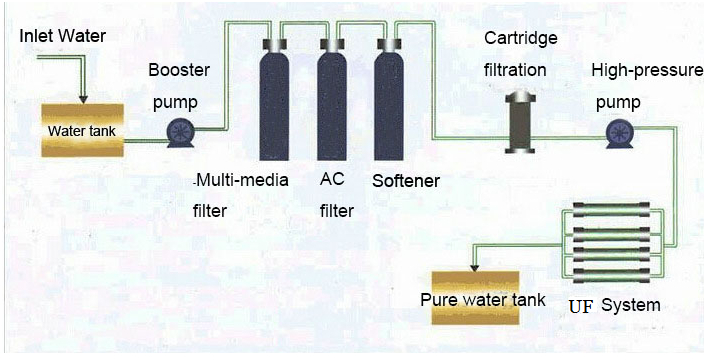

Working Process of Water Ultrafiltration System

1. Raw water pump-- provide the pressure to quartz sand filter/active carbon filter.

2. Multi-medium filter-- get rid of turbidity, suspended matter, organic matter, colloid, ect

3. Active Carbon filter--Remove the color, free chloride, organic matter, harmful matter, ect.

4. Softener--exchange "ions" of calcium and magnesium with the most common and easiest method.

5. Micron filter--prevent large particles, bacteria, viruses into UF membrane, accuracy is 5um,

6. High pressure pump-- Provide the high pressure to UF membrane ro.

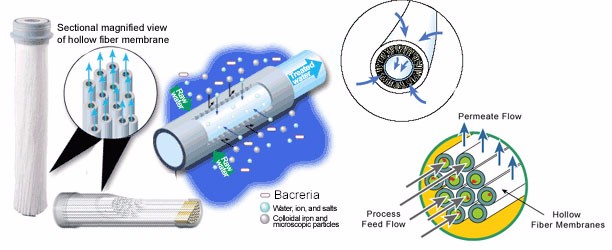

7. Ultrafiltration device -- Can effectively remove the water particles, colloids, bacteria, eliminating endotoxin and high molecular organic matter.

Features of Water Ultrafiltration System

1. Ultrafiltration membrane aperture is small, high precision;

2. Using vertical cross filter principle, can be automatically washed, not easy to dirty block, long service life;

3. Water production capacity, can achieve water production at the same time to meet the water demand;

4. With water protection, high and low voltage protection and other functions;

5. Low cost, practical and strong;

6. Simple structure, small footprint, less ancillary equipment, easy to expand and increase the components

7. Simple operation, fast start, easy to maintain, easy to control.
