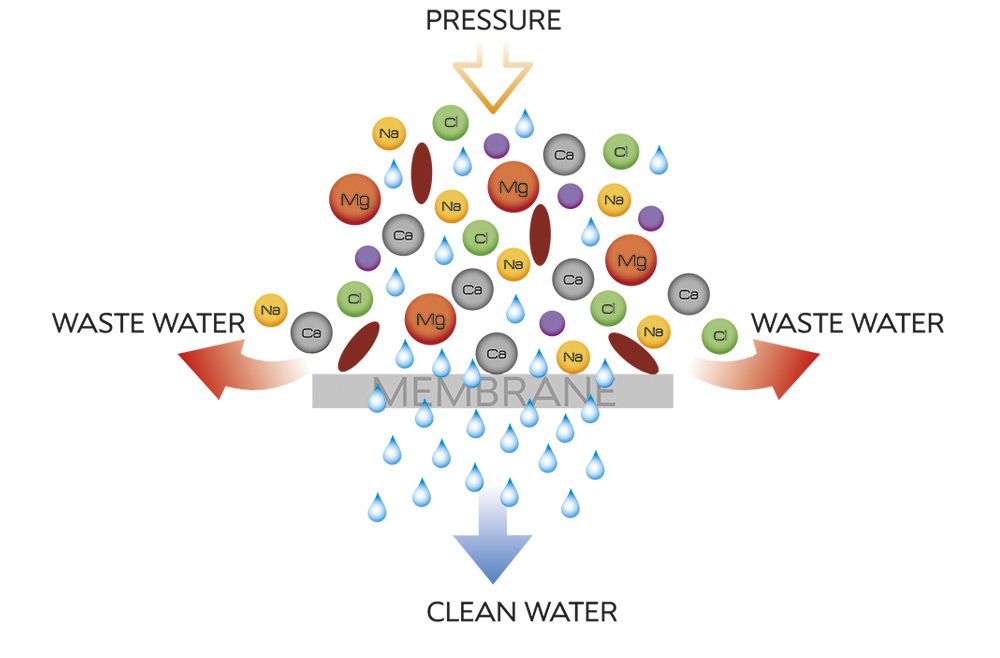

The ZYCL ultrafiltration machine uses UF membrane to arrive at purification and separation. It can effectively filtrate bacteria, endotoxin, virus, rust, colloid and most big macromolecular substance what's diameter is bigger than 0.001um in the water and retain trace elements that are beneficial to human health. So the UF system usually can be used for industrial seperation, concentration, purification, water purification, sewage water treatment, etc.

Technical Parameters of Ultrafiltration Machine:

Water production	0.5m3-100m3according to customers' requirement
UF membrane DN	0.001-0.01um
Inlet water temperature	10-40℃
Working pressure	0.2-0.5MPa
Back-washing pressure	<0.1MPa
Back-washing flow	200L/m2/hr
Back-washing time	30-60sec
Back-washing frequency	15-60min according to your raw water quality

Model List of Ultrafiltration Machine:

No.	Model	Water yield (L/H)	Voltage/Power (V/Kw)	Body Size *(LWH mm)*	Water Tank (L/Material)
1	ZYCL-500	500	380/1.5	14006001500	500/stainless steel/PE
2	ZYCL-1000	1000	380/1.5	14006001500	1000/stainless steel/PE
3	ZYCL-2000	2000	380/1.5	15007001600	2000/stainless steel/PE
4	ZYCL-3000	3000	380/1.5	16007001600	3000/stainless steel/PE
5	ZYCL-4000	4000	380/2.0	16008001650	4000/stainless steel/PE
6	ZYCL-5000	5000	380/2.0	17008001650	5000/stainless steel/PE

Note: Customization is available.

Ultrafiltration membrane aperture is small, high precision;
Using vertical cross filter principle, can be automatically washed, not easy to dirty block, long service life;
Water production capacity, can achieve water production at the same time to meet the water demand;
With water protection, high and low voltage protection and other functions;
Low cost, practical and strong;
Simple structure, small footprint, less ancillary equipment, easy to expand and increase the components
Simple operation, fast start, esy to maintain, easy to control

The Working Flow of Ultrafiltration Machine:

1. Booster pump-- provide the pressure to pre-treatment filters.

2. Multi-media filter-- get rid of turbidity, suspended matter, organic matter, colloid, rust, silt, ect.

3. Active Carbon filter--Adsorb the free chloride, color, odour, organic matter, harmful matter, ect.

4. Softener--exchange "ions" of calcium and magnesium with the most common and easiest method.

5. Cartridge filtration--prevent large particles, bacteria, viruses into RO membrane, accuracy only has 5um.

6. High pressure pump-- Provide the high pressure to RO membrane.

7. UF membrane--filtrate bacteria, endotoxin, virus, rust, colliod and other microorganisms what pore size is bigger than 0.001um.
