Middle Size Freeze Dryer

Product Description

Freeze dryer (lyophilizer) is a drying technology based on the principle of sublimation. It is a process of rapidly freezing the dried material at low temperature, and then sublimating the frozen water molecules into water vapor under appropriate vacuum environment. The product obtained by freeze drying is called lyophilizer, which is called lyophilization.

The material is always in low temperature (frozen state) before drying, and ice crystals are evenly distributed in the material. The sublimation process will not be condensed due to dehydration, avoiding the side effects such as froth and oxidation caused by steam. The dry material is porous and its volume is basically unchanged. It is easy to dissolve in water and recover to its original state. In a large extent to prevent the physical and chemical and biological denaturation of dry matter.

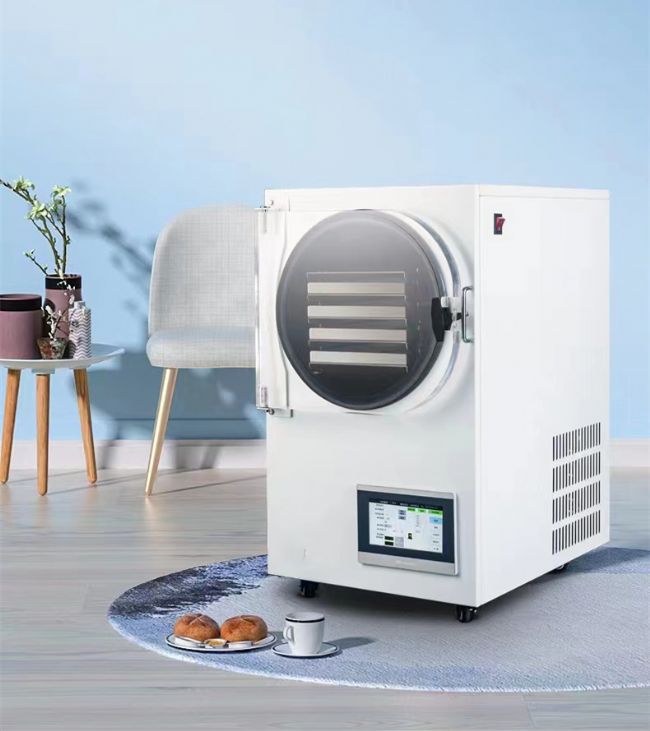

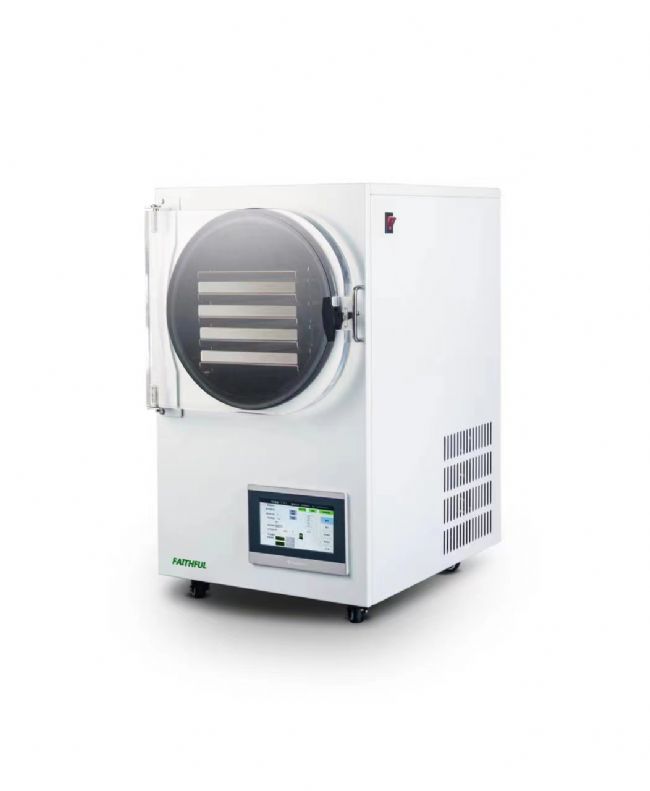

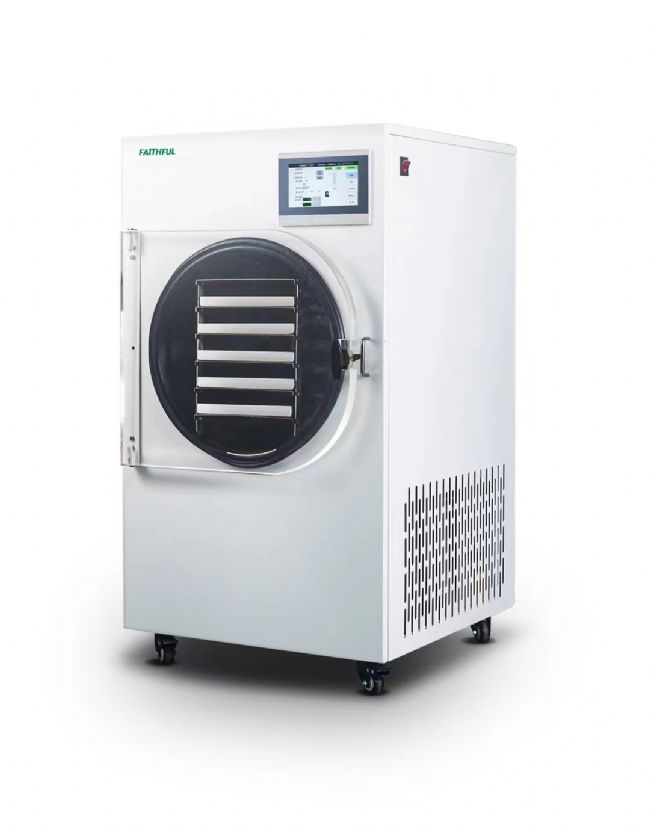

Product Image

Product Features

1: Optional remote monitoring function
2: Heating the plate layer to accelerate the sublimation drying
3: Small size, less space
4: One click operation is simple, with built-in preset program
5: Expert mode, users can set their own operating parameters

Technical Parameter

Model	FSF-03H	FSF-06H
Drying Area (M2)	0.3㎡	0.56㎡
Tray Size (mm)	205*385mm	220*510mm
Tray No.s	4	5
Capacity	3kg	6kg
Trays distance	40mm	54mm
Shelf size	385*205mm
Rated power	1200W	2300W
Voltage	220-240V 50Hz-60Hz
Condenser temperature	≤-50℃
Vacuum (Pa)	<15Pa
Machine size (mm)	450610760	6206941098
N/W:kg	120kg	180kg
