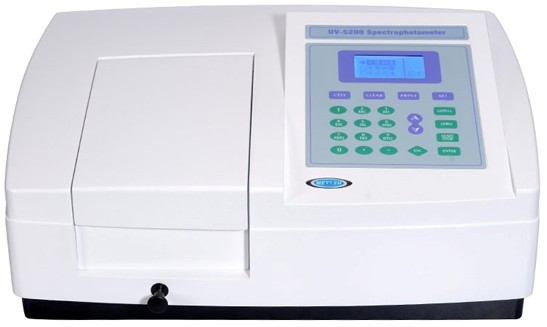

- UV-5200(PC) UV/VIS Spectrophotometer
(1)Features
1. Large LCD screen(128x64Dots).Can display total 200 groups of data,5 groups per screen.
2. Can save 200 groups of curve equation, convenient for check and reload.
3. Data can be restored after a sudden power cut.
4. Auto setting wavelength. auto zero and blank.
5. Tungsten lamp & deuterium lamp can be turned on/off individually to extend lifetime.
6. The software UV-Professional provides complete control of the spectrophotometer from a computer through the Built-in USB port. The following functions can be easily achieved: Quantitative, Kinetics, Wavelength Scan, DNA/Protein Test and Multi-wavelength Test.
7. The flange of the D2 lamp makes it become true Pre-aligned design makes it convenient to change lamps.
8. Large sample compartment, It can accommodate 5-100mm path length cuvettes with optional holders. A variety of optional accessories are under your choice.
Specifications:
| Model | UV-5200 |
| Optical System | Single beam, Grating 1200lines/mm |
| Wavelength Range | 190-1100nm |
| Bandwidth | 2nm |
| Wavelength Accuracy | ±1nm |
| Wavelength Repeatability | 0.5nm |
| Wavelength Setting | Auto |
| Photometric Accuracy | ±0.3%T |
| Photometric Repeatability | 0.2%T |
| Photometric Range | -0.3-3A,0-200%T,0-9999C |
| Stability | ± 0.002A/h @ 500nm |
| Stray Light | ≤0.1%T |
| Data Output Port | USB |
| Printer Port | Parallel Port |
| Display | 128*64 Dots LCD |
| Lamps | D2 Lamp & W Lamp |
| Detector | Silicon Photodiode |
| Power Requirements | AC 220V/50Hz or 110V/60Hz |
| Dimension | 460*380*225mm |
| Weight | 18kg |
Standard Accessories
| Item | Description | Quantity | Unit |
| 1 | Spectrophotometer | 1 | set |
| 2 | 1cm Glass cuvette | 4 | pcs |
| 3 | Power cord | 1 | pcs |
| 4 | User’s Manual | 1 | pcs |
| 5 | 1 cm quartz cuvette | 2 | pcs |
| 6 | Dust Cover | 1 | pcs |
-
