Product Overview

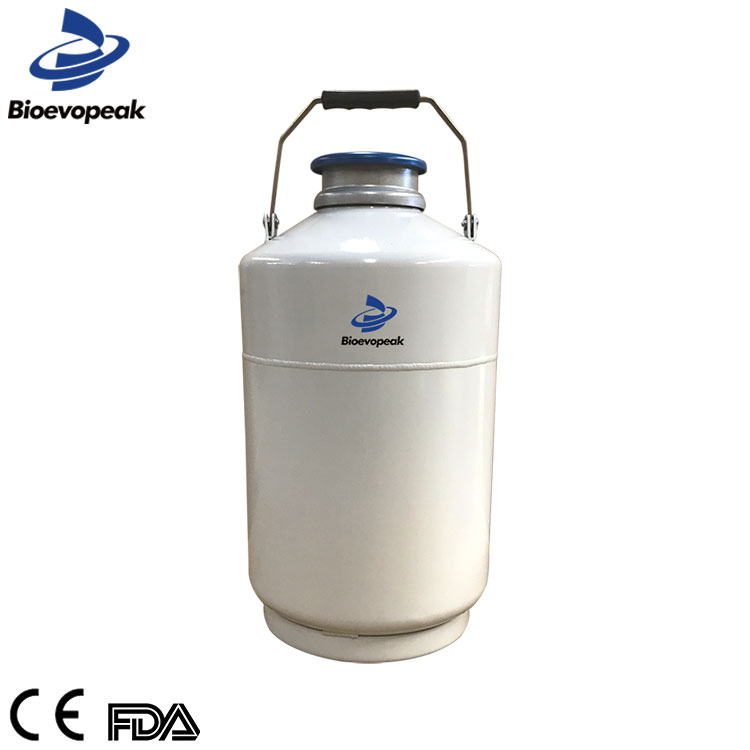

Static storage series is an economical small liquid nitrogen tank for laboratory use. It is specially designed for biological samples that need long-term static storage. It has two types of products: large capacity and super-long storage period. This series is made of high strength and light weight aluminium alloy with multi-layer and super-strong insulation layer. It realizes the safety, tightness and efficiency of the product, and has a variety of accessories to choose from.

Product Features

High strength, light weight and small size aluminum structure;
Equipped with belt;
Ultra low evaporation loss;
Large straw capacity;
Vials cane Is optional;
Lockable lid is optional to prevent unauthorized open;
Level monitoring system is optional;
Roller base is optional;
Liquid nitrogen pump is optional;

Model		LNC-S10-80	LNC-S10-125	LNC-S13-50	LNC-S15-50	LNC-S20-50	LNC-S25-50	LNC-S30-50
Performance
LN2 Capacity (L)		10	10	13	15	20	25	31.5
Weight Empty (kg)		6.2	6.3	6.3	8.5	9.5	10.7	12.9
Neck Opening (mm)		80	125	50	50	50	50	50
Outer Diameter (mm)		300	300	310	394	394	394	462
Overall Height (mm)		557	554	623	591	672	700	705
Static Evaporation Rate (L/day)		0.21	0.43	0.12	0.11	0.12	0.14	0.12
Static Holding Time (day)		48	24	109	134	168	180	254
Maximum Storage Capacity
Canister Diameter (mm)		63	97	38	38	38	38	38
Canister Height (mm)		120	120	276	120	120/276	120/276	120/276
Number of Canisters (ea)		6	1	6	6	6	6	6
Straws Capacity (120 mm canister)	0.5 mL (ea)	2244	854	—	792	792	792	792
Straws Capacity (120 mm canister)	0.25 mL (ea)	5022	1940	—	1788	1788	1788	1788
Straws Capacity (276 mm canister)	0.5 mL (ea)	—	—	1284	—	1284	1284	1284
Straws Capacity (276 mm canister)	0.25 mL (ea)	—	—	2832	—	2832	2832	2832
Optional Accessories
Lockable Lid		P	P	P	P	P	P	P
PU Bag		P	—	P	P	P	P	P
Level Monitor		P	P	P	P	P	P	P
Roller Base		—	—	—	—	—	—	P

Model		LNC-S30-80	LNC-S30-125	LNC-S35-50	LNC-S35-80	LNC-S35-125	LNC-S47-127	LNC-S50-125
Performance
LN2 Capacity (L)		31.5	31.5	35.5	335.5	35.5	47	50
Weight Empty (kg)		13	13	14.2	14.5	14.6	18.2	17.3
Neck Opening (mm)		80	125	50	80	125	127	125
Outer Diameter (mm)		462	462	462	462	462	508	462
Overall Height (mm)		709	704	749	753	748	718	818
Static Evaporation Rate (L/day)		0.21	0.35	0.12	0.22	0.37	0.36	0.45
Static Holding Time (day)		147	90	286	159	97	130	110
Maximum Storage Capacity
Canister Diameter (mm)		63	97	38	63	97	104	97
Canister Height (mm)		120/276	120	120/276	120/276	120/276	120/276	120/276
Number of Canisters (ea)		6	6	6	6	6	6	6
Straws Capacity (120 mm canister)	0.5 mL (ea)	2244	5124	792	2244	5124	6714	5124
Straws Capacity (120 mm canister)	0.25 mL (ea)	5022	11640	1788	5022	11640	14070	11640
Straws Capacity (276 mm canister)	0.5 mL (ea)	3624	—	1284	3624	9048	10704	9048
Straws Capacity (276 mm canister)	0.25 mL (ea)	8460	—	2832	8460	20760	23604	20760
Optional Accessories
Lockable Lid		P	P	P	P	P	P	P
PU Bag		P	P	P	P	P	—	P
Level Monitor		P	P	P	P	P	P	P
Roller Base		P	P	P	P	P	P	P
