- QL-1000 PEM method electrolyzer Hydrogen production
- Product Detail
- Company Profile
- Distance between anode and cathode is close to zero, and highly active SPE catalytic electrodes are used.
- Plural-electrode and multiunit electrolysis cell structure with excellent chemical technological process properties of the mass and heat transfer.
- Best choice of materials for multi-electrode and pluralist electrolysis cell with excellent properties of electrochemistry, anti-corrosion and bearing deactivation.
- Electrolysis of pure water ( no adding alkali) to produce hydrogen with no corrosion and pollution, and the purity of hydrogen is extremely high.
- Voltage of unit cell is low, and electric resistance in the electrolysis cell is little, giving out no heat, and cycle of changing desiccants is long, producing highly pure hydrogen.
- With stable pressure and output, Hydrogen is controlled according to the requirements, and automatic control technology is perfect and reliable.
- Power consumption is less, and the electrolysis is efficient.
- The small-sized products (QL-150/300/500/1000) are ideal equipment for gas chromatographs and optical fiber sintering. The products can absolutely take the place of steel cylinders of hydrogen, and can be used safely and conveniently.
- Used for fuel cell.
- Supply hydrogen for metal hydride.
- Others application: reduction protection ,purification of materials , fire fiber optic.
- storing power for wind power, solar power generator ,Etc
Specifications

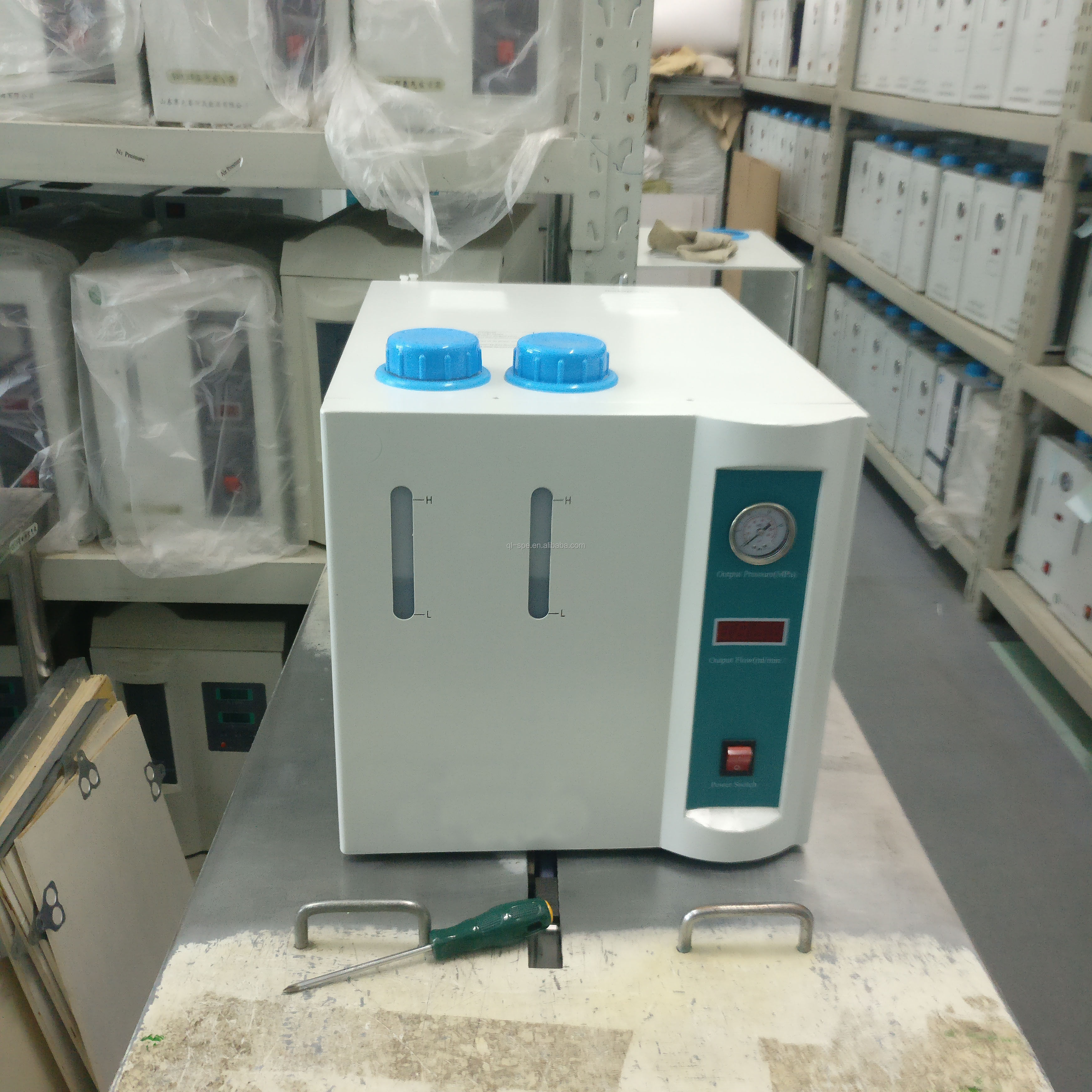

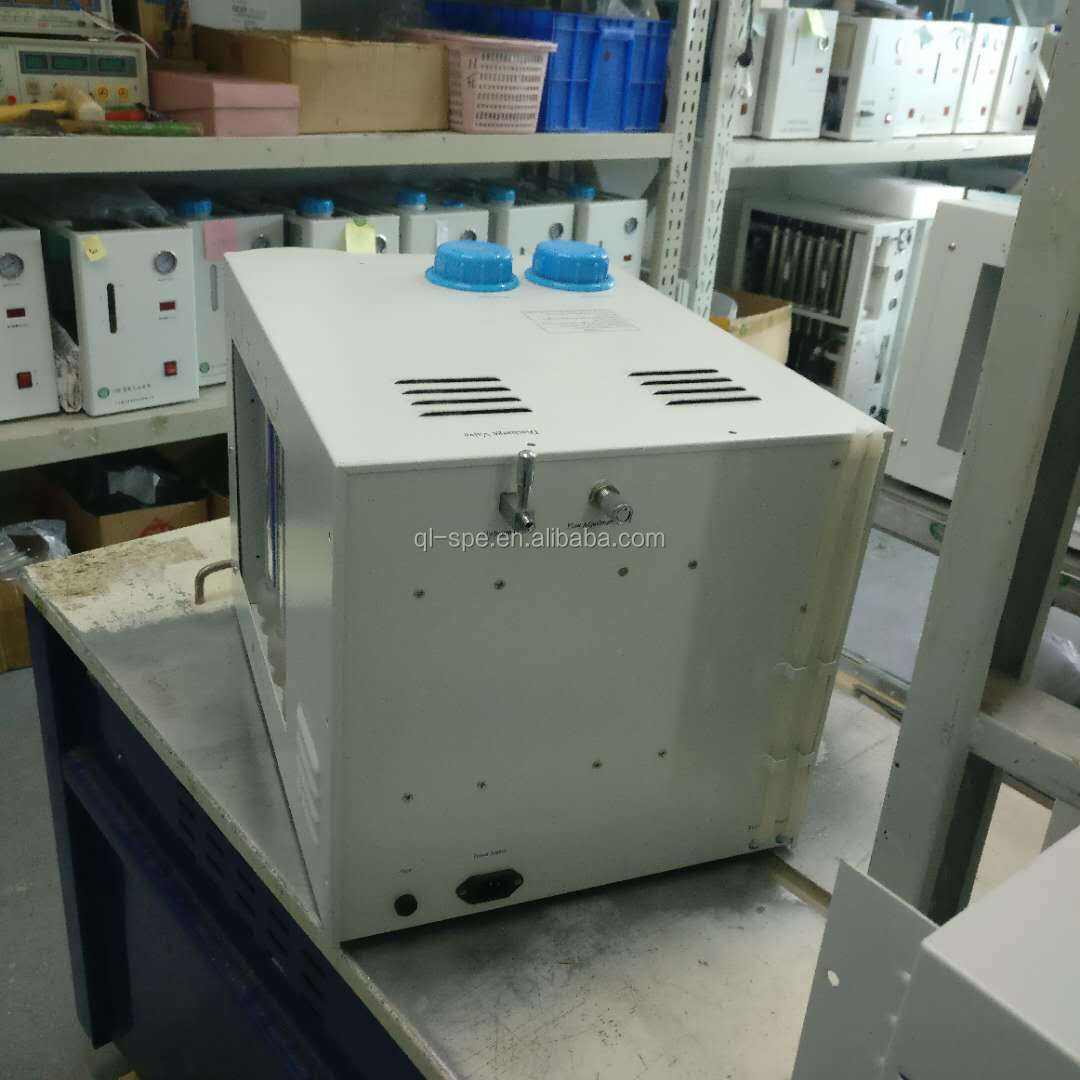

QL-1000 PEM method electrolyzer device produce up to 99.999% purity Hydrogen gas by utilizing PEM technology to electrolyze pure water (no adding alkali).
Specifications of QL-1000 PEM method electrolyzer:
1. 0~1L/min flow rate scope
2. H2 purity :99.999%
3. PEM technology .
4. CE certification. Own patent right.
Technical Parameter of QL-1000 PEM method electrolyzer:
| Type | QL-1000 |
| Output Volume (L/min) | 0~1 |
|
Output Pressure (MPa) |
0.02~0.4 /0.02~0.7 |
|
Pluctuation Rate of Output Pressure(%) |
<0.2 |
|
H2 purity (%) |
>99.999 |
|
Second Protective Pressure (MPa) |
0.76 |
|
Power Voltage (V) |
220±15% 110±15% 50~60Hz |
|
Input power (KW) |
<1 |
|
Dimension (LxWxH) mm |
485x230x380 |
|
Gross Weight (KG) |
< 25 |
Structural characteristics of the Products of QL-1000 PEM method electrolyzer:
Functions and Characteristics of QL-1000 PEM method electrolyzer:
Applied Area QL-1000 PEM method electrolyzer:
Please contact us if you have interest to our Instrument:
-
Shandong Saikesaisi Hydrogen Energy CO., Ltd. is a high-tech and strong innovation team. She has being engaged in producing PEM/SPE Hydrogen Generator from 1992. The chief technical expert is the first one developing PEM/SPE technology in China who has developed Four generation hydrogen generators and some have won the patens and fill in the vacancy in Chinese technology field.
The company choose SPE-Solid Polymer Electrolyte positive ion(proton) exchange membrane to electrolyze pure water which replaces traditional alkali liquor hydrogen production. This technology has won BECIA golden medal and certificate of patent.
Because of good quality, some products have got CE certification(No.E/EC13840511537). Now this company can supply the following products:
1.QL Series Hydrogen Generators (0-34000 ml/min).
2.SHC Series Hydrogen Generators(0-500 ml/min).
3.QL Series Pure Air Generator(0-300 l/min).
4.QL Series Nitrogen Generator(0-500 l/min).
5.QL Series Nitrogen and Air Generator(Nitrogen:0-300 ml/min, Air:0-1000 ml/min), Nitrogen, Hydrogen and Air Generator(Nitrogen:0-300 ml/min, Hydrogen:0-300 ml/min and Air:0-1000 ml/min).
6. Other customized generator and Accessory parts.
If you have any technical questions or need more detailed information about produces and company, please visit the website.
