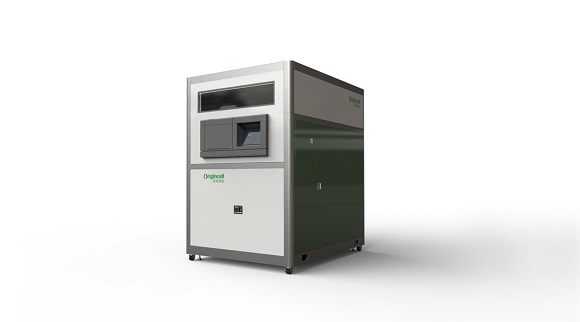

- Automated Extra-Large-Capacity Biobanking
- Product Detail
- Company Profile
•The activity of biological samples can be maintained for a very long time.
•Provide complete automation solutions.
•Avoid the inefficiencies and pitfalls of manually conducting sample storage and
management
The model is engineered by following innovative designs:
using four independent freezers structure can make better sample grouping storage management and can enhance the safety and reliability of the sample;
using full automatic operation mechanism design with a five-shaft automatic structure, can ensure a higher efficiency and more reliable operation.;
advanced automatic lid opening design can lead to faster operation;
vacuum and negative pressure sample pick-up mechanism design can secure more reliable operation and more convenient maintenance;
high dryness dehumidification system can prevent frost in working area and frozen inside the storage area;
special cryogenic protection pick-up device can ensure the little exposure of frozen sample;
integrated two-dimensional code scanning system can realize high efficient sample information verification;
comprehensive automatic transfer window design with the functions of automatic dehumidifying and automatic import and export can easily equip with advanced AGV system;
installed with UPS can ensure uninterrupted operation;
introducing server to store the information can ensure more reliable and safety data storage;
the intelligent BSN-Cyber operation system can be easy to use on both single and multiple modular;
embedded touch screen with obliquity display can have more convenient conversational interface;
comprehensive system design for information feedback and abnormal alarm ensure all kinds of abnormal situation will not affect the safety of the sample; easy removable module design can realize emergency rapid transfer of samples.
Specification：
| Item | Specification | |
| Model
|
BSN-500 | |
| Storage Capacity | 50000（2.0ml Vials） | |
| Dimension (mm) | 1700×2280×2420（Width×Depth×Height） | |
| Weight (empty) | 2500KG | |
| Weight (full capacity) | 2800KG | |
| Power | Standby：＜500w，Max operating power：＜2500w | |
| Voltage | 220V，50Hz | |
| Hose Interface (mm) | Ø15mm | |
| Touch Screen | 12 Inch | |
| LN2 Evaporation Rate (L/day) | 20（Static） | |
| Freezer hold time（≤130℃） | ≥48h | |
| Storage Temperature | ≤-160℃ | |
| Freezer Dimension (mm) * | φ600*1470mmx4 | |
| *BSN-500 has a special four freezers input design | ||
-
Shanghai Origincell Biological Cryo Equipment Co., Ltd. is a high-tech biomedical equipment enterprise integrating R & D, design, manufacture, sale and service. The company's premier products are automated cryogenic freezer and biobank system (large biological sample bank). Currently, Origincell Equipment is developing the third-generation equipment whose some design features and technical specification reaches or exceedes the world advanced level, owning more than sixty patents, and it is also more cost-effective than the same kind products abroad.
