QL-500 mud logging hydrogen generator

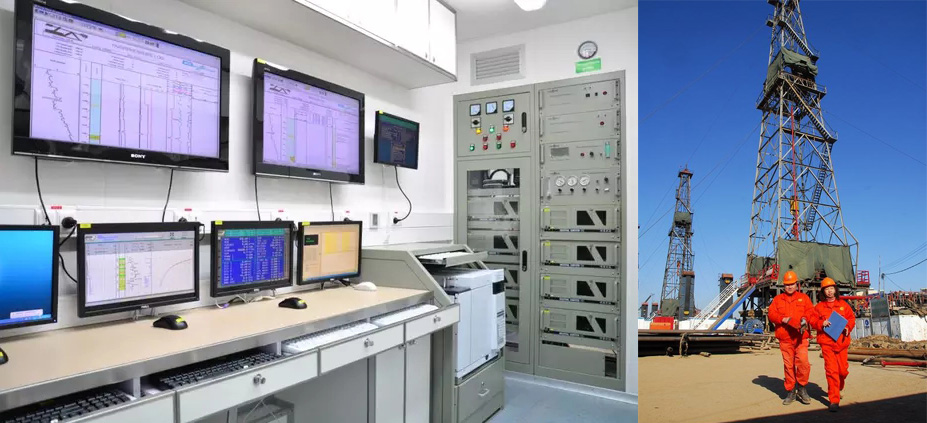

QL-500 mud logging hydrogen generator is specially designed for supplying qualified pure hydrogen for mud logging gas chromatography.QL-500 mud logging hydrogen generator is widely used in China and abroad oil and gas drilling field.QL-500 mud logging hydrogen generator adopt the world's top technology SPE/PEM hydrogen tech which priduce qualified pure hydrogen by electrolysis pure water only insteal of old lye electrolysis tech. PEM full name is Proton Exchange Membrane. Also called SPE technology ( solid polymer electrolyte).QL series hydrogen generator is our patented products, which are light , highly effective , energy-saving and of environmental protection , producing extremely pure hydrogen (>99.999%) through the electrolysis of pure water (without adding alkali).
QL-500 mud logging hydrogen generator Technical Parameter:
|
Type |
QL-500 |
|
Output Volume (ml/min) |
0~510 |
|
Output Pressure (MPa) |
0.15~0.4 |
|
H2 purity (%) |
>99.9995 |
|
Protective Pressure (MPa) |
0.46 |
|
Power Voltage (V) |
220±15% 110±15% 50~60Hz |
|
Input power (W) |
<300 |
|
Dimension (LxWxH) mm |
431x228x343 |
|
Net Weight (KG) |
< 15 |
Characteristics of the QL-500 mud logging hydrogen generator :
1.Professional design for mud logging gas chromatography unit.
2.Electrolysis of pure water (adding no alkali) to produce hydrogen with no corrosion and pollution, and the purity of hydrogen is extremely high.
3.Voltage of unit cell is low, and electric resistance in the electrolysis cell is little, giving out no heat, and cycle of changing desiccants is long, producing highly pure hydrogen.
4.With stable pressure and output, Hydrogen is controlled according to the requirements, and automatic control technology is perfect and reliable.
5.Power consumption is less, and the electrolysis is efficient.
6.H2 flow and pressure is stable
7.Titanium material
8.DuPont Nafion Membranes N-117

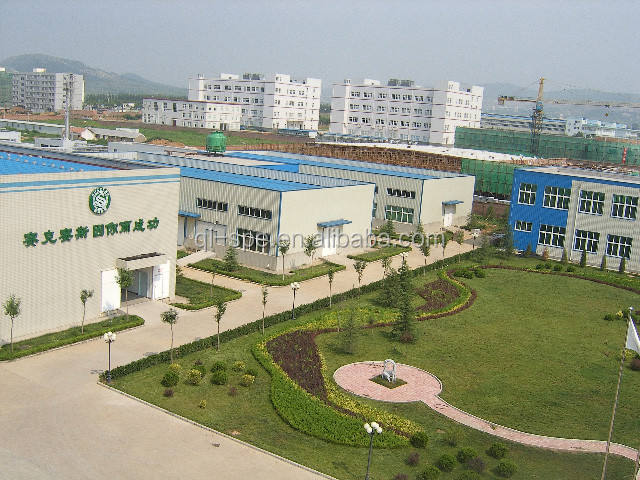

Shandong Saikesaisi Hydrogen is a 20 years laboratory gas generating equipment manufacturer.product reached ISO9001,CE certification.We are the earliest laboratory gas equipment exporter in China,till now,we have been 8 years golden member on Alibaba.com.Our main product inlcude PEM pure water electrolysis h2 generator,KOH eletrolyte electrolysis h2 generator, Palladium tube h2 generator;PSA N2 generator, electro-catalysis method N2 generator;zero air generator,pure air compressor etc.
-

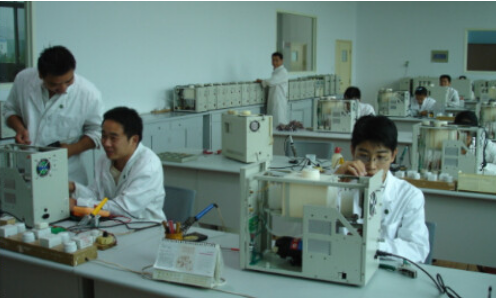

Shandong Saikesaisi Hydrogen Energy CO., Ltd. is a high-tech and strong innovation team. She has being engaged in producing PEM/SPE Hydrogen Generator from 1992. The chief technical expert is the first one developing PEM/SPE technology in China who has developed Four generation hydrogen generators and some have won the patens and fill in the vacancy in Chinese technology field.
The company choose SPE-Solid Polymer Electrolyte positive ion(proton) exchange membrane to electrolyze pure water which replaces traditional alkali liquor hydrogen production. This technology has won BECIA golden medal and certificate of patent.
Because of good quality, some products have got CE certification(No.E/EC13840511537). Now this company can supply the following products:
1.QL Series Hydrogen Generators (0-34000 ml/min).
2.SHC Series Hydrogen Generators(0-500 ml/min).
3.QL Series Pure Air Generator(0-300 l/min).
4.QL Series Nitrogen Generator(0-500 l/min).
5.QL Series Nitrogen and Air Generator(Nitrogen:0-300 ml/min, Air:0-1000 ml/min), Nitrogen, Hydrogen and Air Generator(Nitrogen:0-300 ml/min, Hydrogen:0-300 ml/min and Air:0-1000 ml/min).
6. Other customized generator and Accessory parts.
If you have any technical questions or need more detailed information about produces and company, please visit the website.
