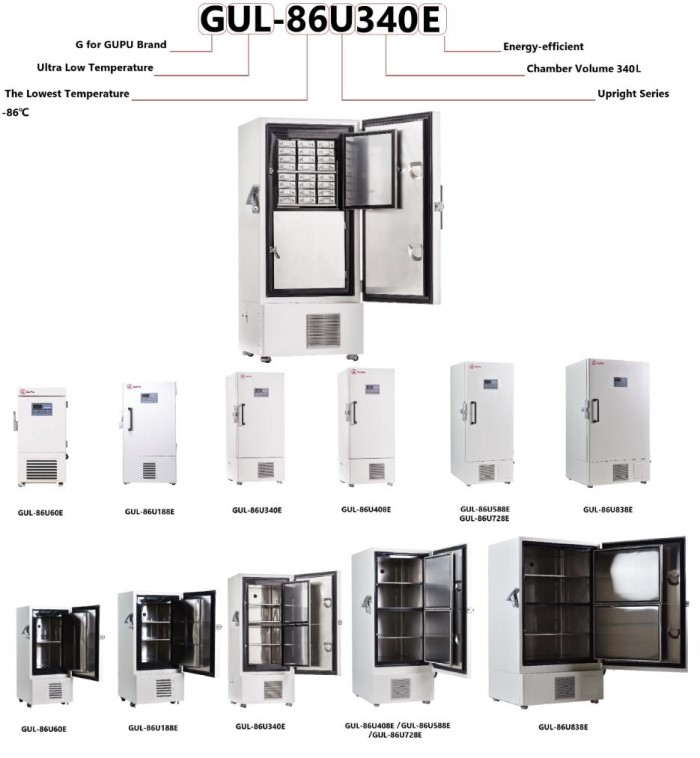

Energy-efficient VIP -86℃ ULT Freezer,60/188/340/408/588/728/838L
| Model | GUL-86U60E | GUL-86U188E | GUL-86U340E | GUL-86U408E | GUL-86U588E | GUL-86U728E | GUL-86U838E |
| Volume (L/cu.ft.) | 60/2.12 | 188/6.63 | 340/12 | 408/14.4 | 588/20.76 | 728/25.7 | 838/29.59 |
| Stainless Steel Shelves Qty (height adjustable) |
1 | 2 | 3 | 3 | 3 | 3 | 3 |
| Load of Racks | 2 (6*2) | 9 (4*3) | 12 (4*4) | 16 (5*4, 4*4) | 16 (5*5) | 18(5*4) +6(6*4) | 24 (5*5) |
| Load of Boxes (2inches) | 24 | 108 | 192 | 288 | 400 | 504 | 600 |
| Max Load of Samples (2ml) | 2400 | 10800 | 19200 | 28800 | 40000 | 50400 | 60000 |
| Chamber Size (mm) | 330*453*410 | 465*465*830 | 488*607*1140 | 606*575*1180 | 606*738*1310 | 963*558*1350 | 894*718*1310 |
| Outer Size (mm) | 635*757*1212 | 850*930*1595 | 875*980*1900 | 890*930*1945 | 880*1090*1995 | 1260*890*2010 | 1175*1075*1990 |
| Package Size (mm) | 730*845*1400 | 880*910*1820 | 935*1070*2130 | 955*955*2100 | 970*1140*2190 | 1320*970*2190 | 1270*1100*2185 |
| Net Weight/Gross Weight (kg) | 87/115 | 174/224 | 222/284 | 234/291 | 290/360 | 360/402 | 344/430 |
| CBM | 0.86 | 1.46 | 2.13 | 1.92 | 2.42 | 2.8 | 3.05 |
| 20GP/40GP/40HQ | 22/48/48 | 12/26/26 | 12/24/24 | 12/24/24 | 12/24/24 | 8/18/18 | 8/18/18 |
| Performance | |||||||
| Cooling Performance | -86℃ | ||||||
| Temperature Control Range | -40~-86℃ | ||||||
| Pull Down Time to -86℃ at 30℃ | 4.5hrs | ||||||
| Ambient Temperature | 10℃ to 32℃ | ||||||
| Control | |||||||
| Controller | Microprocessor | ||||||
| Display | Digital LED display with all data | ||||||
| Temperature Sensor | PTC | ||||||
| Refrigeration | |||||||

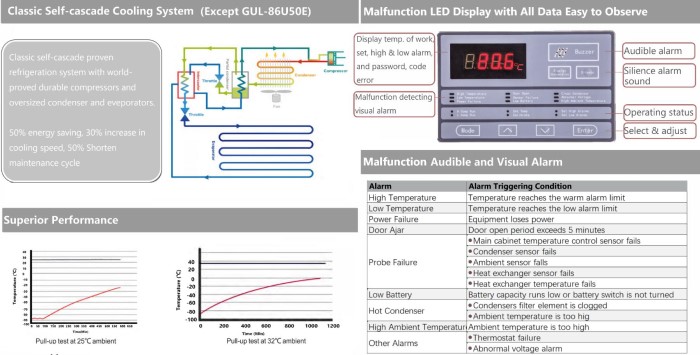

| Refrigeration System | Self-cascade system | ||||||
| Compressors | SECOP/1 | CUBIGEL/1 | SECOP/1 | SECOP/1 | SECOP/2 | SECOP/2 | SECOP/2 |
| Refrigerant | Efficient Mixed-gas | ||||||
| Insulation Material and Thickness | 130mm PURF, Vacuum Insulation Panel Plus | ||||||
| Construction | |||||||
| Outer Material | Painted Steel | ||||||
| Chamber Material | Stainless Steel | ||||||
| Outer Door | Foamed with high quality VIP, Sealing joint strip with magnetic force. | ||||||
| Outer Door Lock | Safety door lock and password protection | ||||||
| Inner Door Qty | 1 | 3 | 2 | 2 | 2 | 2 | 2 |
| Test Port Qty & Diameter | 1/25mm | 1/25mm | 1/25mm | 1/25mm | 1/25mm | 1/25mm | 1/25mm |
| Casters | Y | Y | Y | Y | Y | Y | Y |
| Audiable and Visual Alarms | |||||||
| High & Low Temperature | Y | Y | Y | Y | Y | Y | Y |
| Extremely High Ambient | Y | Y | Y | Y | Y | Y | Y |
| Thermostat Failure | Y | Y | Y | Y | Y | Y | Y |
| Sensor Error | Y | Y | Y | Y | Y | Y | Y |
| Abnormal Voltage | Y | Y | Y | Y | Y | Y | Y |
| Power Failure | Y | Y | Y | Y | Y | Y | Y |
| Low Battery | Y | Y | Y | Y | Y | Y | Y |
| Condenser Clean | Y | Y | Y | Y | Y | Y | Y |
| Filter Clean | Y | Y | Y | Y | Y | Y | Y |
| Door Open | Y | Y | Y | Y | Y | Y | Y |
| Romote Alarm Port | Y | Y | Y | Y | Y | Y | Y |
| Electrical and Noise Level | |||||||
| Power Supply | 220V/50/60HZ, 110V/60Hz | ||||||
| Heat Output (220V) | 442W | 660W | 810W | 890W | 1500W | 1400W | 1700W |
| Power Consumption (KWh/24hr) | 5.6 | 8.2 | 11.2 | 12 | 16.5 | 20 | 18.8 |
| Noise Level | 49.5 | 52 | 52 | 50 | 53 | 53 | 55 |
| Options | |||||||
| USB Port | Y | Y | Y | Y | Y | Y | Y |
| Chart Recorder | / | / | / | / | / | / | / |
| Data Logger | Optional | Optional | Optional | Optional | Optional | Optional | Optional |
| Power Failure Backup Battery | / | 72h | 72h | 72h | 72h | 72h | 72h |
| CO2 or LN2 Back-up | Optional | Optional | Optional | Optional | Optional | Optional | Optional |
DESCRIPTION
-
RIGHT HERE IN CHINA
GUPU BIOTEC (XI'AN) CO. LTD. is located in the ancient city of Xi’an, the vital national transportation hub, serving as a bridge between the eastern and western regions of China. Worldwide speaking, Xi’an Hi-tech Industries Development Zone, situated at the eastern end of the ancient Silk Road, is a bridgehead connecting China with Belt and Road countries and regions.
Who We Are(图1)
FOCUS IN THE FIELD
GUPU BIOTEC CHINA is right here, committed to become a long-term one-stop-solution partner for customers worldwide with a growing range of reliable laboratory, analytical, life science, and medical instruments and equipment. The founders are engaged in the field of reliable quality laboratory and medical equipment R&D, marketing for more than 10 years.
The pursuit of continuous innovation in technology, improvement in quality, and reliability in customer experience, combined with an experienced and motivated team has enabled us to build solid long-term relationships with our customers.
