Product Description

Rotary evaporator

Rotary evaporator is a rotary evaporation flask, increased area under the water bath in the vacuum side of rotation, so that the sample edge heating evaporation, extraction products. Evaporators are widely used in crystallization, product concentration, powder drying, solvent separation, the standard distillation. On pilot and industrial use, we push with a 10L or 20L large capacity rotary evaporator; on teaching or less, and we send German companies for 50ml ~ 50000ml-RE Series rotary evaporator.

Widely used in chemical, pharmaceutical, food, environmental protection, universities and other  research units and small batch production, concentration, drying, recycling and other good equipment.

Technical Parameters

Model no

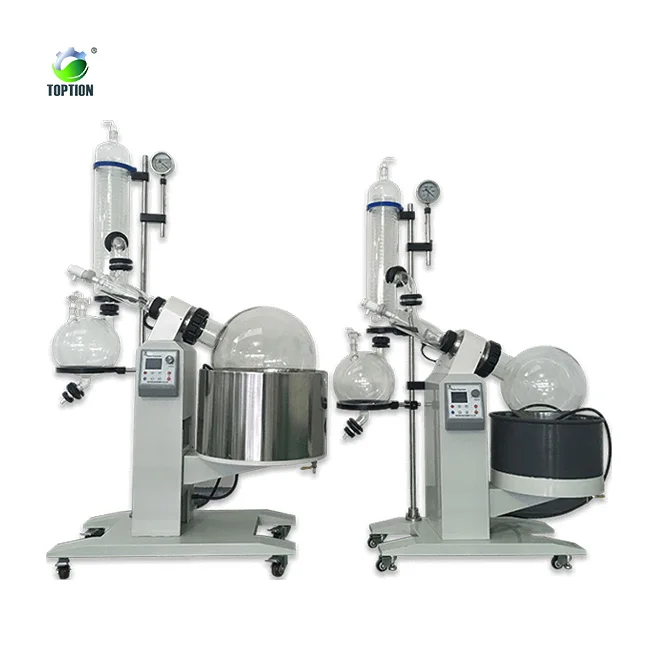

RE-5250A Advanced type with double collecting flasks

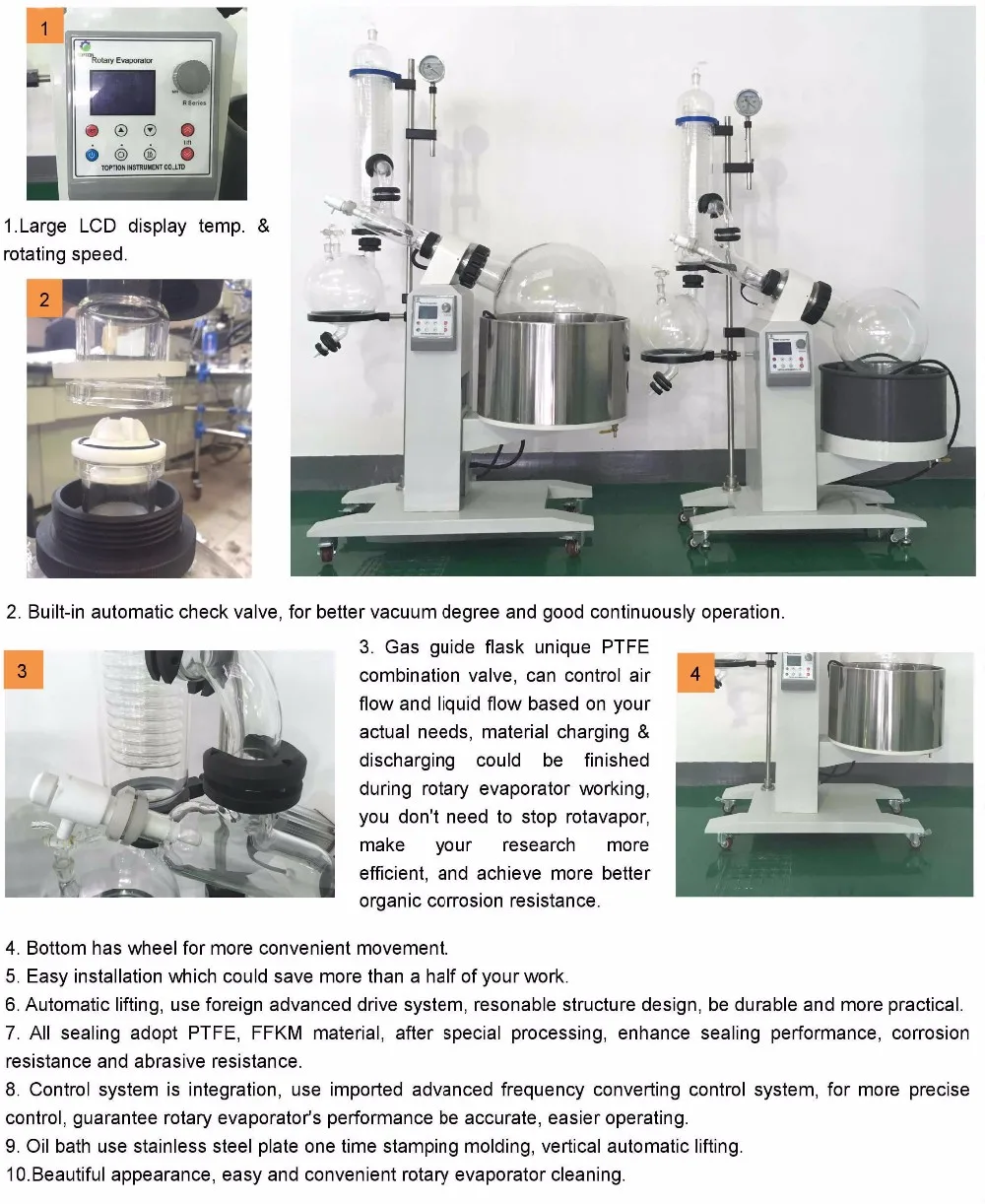

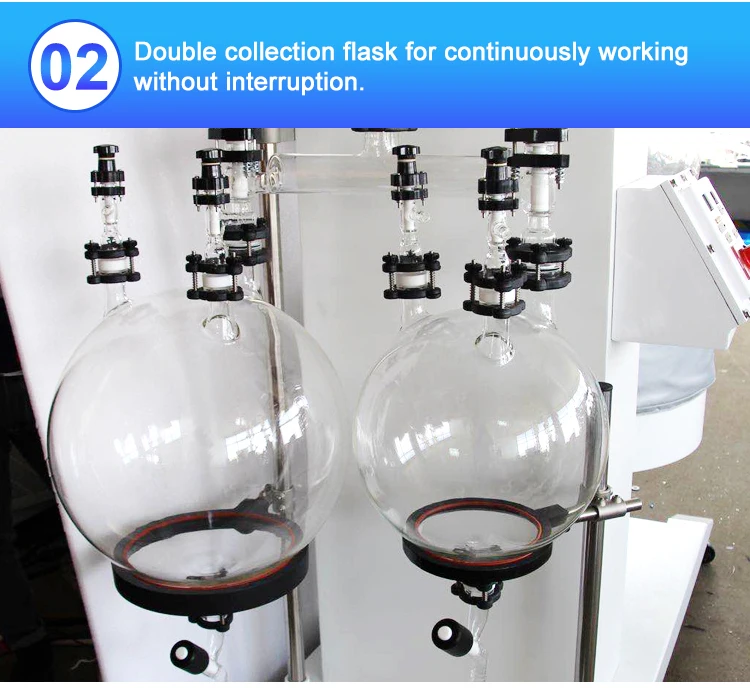

1. Model: RE-5250A(Advanced design) 2. Down mode: Electric lift 3. The speed range(rpm): 5～110 4. Temp range (℃): RT～98 (water bath) 5. Condenser: Vertical type, double serpentine tube 6. Rotating bottle max capacity (L): 50L 7. Max capacity to collect bottle (L): 20L + 10L with vacuum shut off valves to swap from one receiving flask to another while one is draining 8. Motor power (W): 90; bath power: 7KW 9. Voltage: 1 phase 220V 60Hz 10. Evaporation speed (ethyl alcohol): 8L 11. Dimension: 1300 x 600 x 2070mm 12. With inside automatic check valve (when collection bottle is full and need to discharge, check valve will shut automatically when exhausting valve open. So the whole vacuum system for rotary evaporator (exclude the collection bottle) will be locked. The vacuum system will have not too much difference once collection bottle re-work. It makes the distillation jobs more continuously and effective. 13. With wheels for easy movement.

Product Features

Bath pot lifting: fixed glass, fixed, reduce damage, collection bottles can be immersed in ice bath to reduce the secondary evaporation.

Vacuum Table: handsome in appearance, digital clarity.

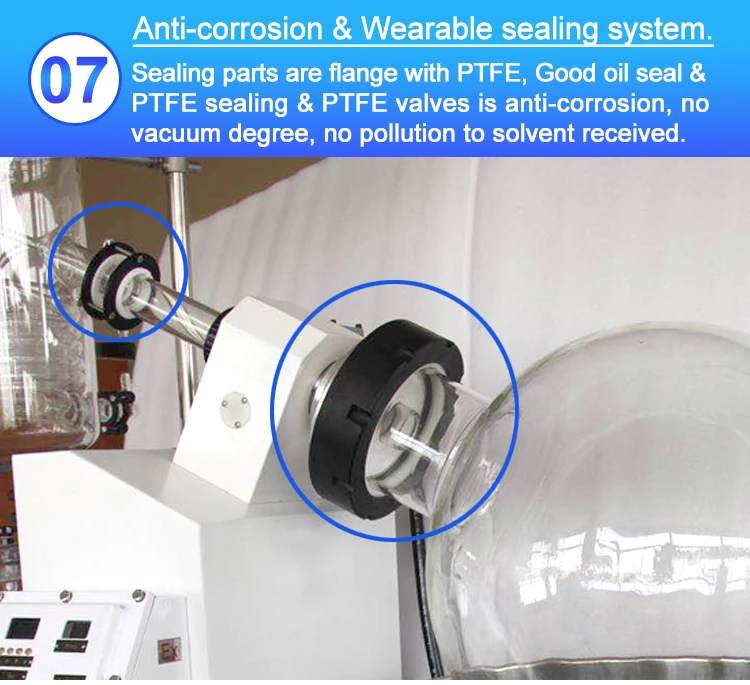

Ball I: I join milling bottle collection, a unique seal structure and selection of sealing materials, corrosion resistance, can maintain above-0.096MPa vacuum, excellent sealing performance.

High temperature long-lasting seal: High evaporation efficiency, high recovery rate; intensive high temperature corrosion resistance and long life, leak privileged.

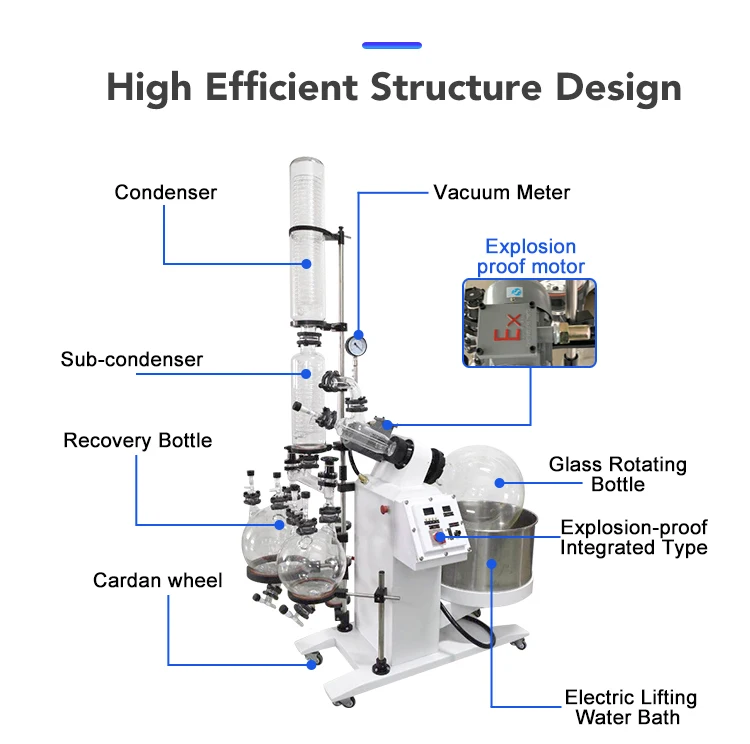

Vertical condenser: mobile, there are three options. Cold trap configuration can do to collect low boiling evaporation.

Back bottles of devices: spin bottle ISO29 standard port, with the thread easy to retreat, to reduce damage under high temperature solution bottle back hard.

Intelligent temperature: room temperature -180 ℃ wide range of temperature fluctuation ± 0.2 ℃, hard red material, no sparks, security.

Stainless steel chassis, upright, vertical, aluminum castings, attractive appearance, corrosion resistance.

Critical seals, electronic components bits imported.

Packing & Delivery

Payment	100% prepaid by Alibaba, T/T, Western union, Paypal
Package	1. According to the specific circumstances, a reasonable choice of international express, air shipping,sea shipping... etc. 2. Packed in strong wooden case or based on customer's requirement.
Delivery	Within 1-3 working days afer payment. customized product based on contract.

Certifications

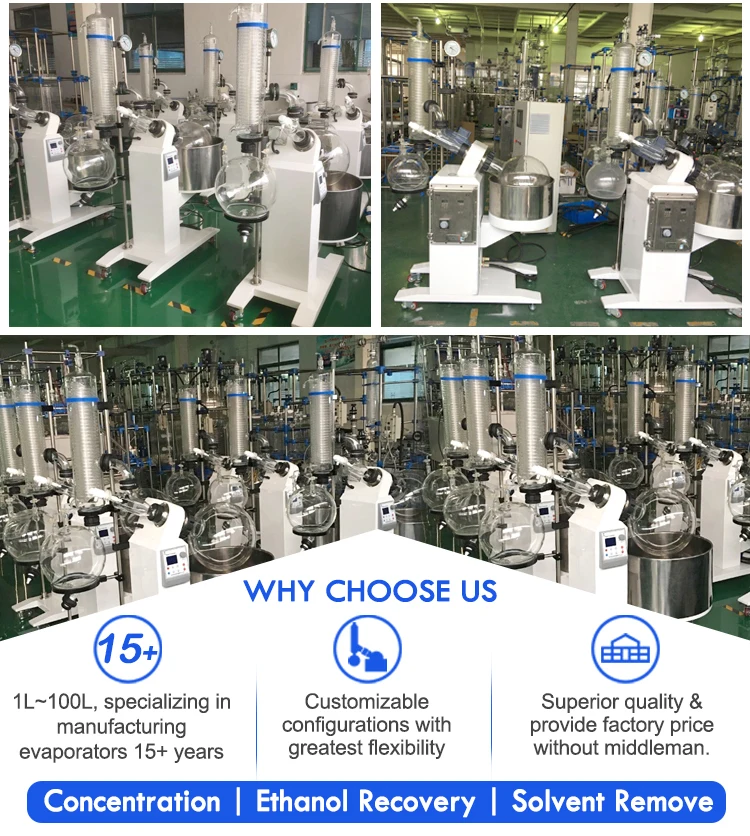

Toption Company professional Lab solution provider ,mainly manufacture for glass reactor, stainless steel reactor, photochemical reactor, rotary evaporator, short-path molecular distillation, labglassware, freeze dryer , spray dryer, ultrasonic cleaner, ultrasonic homogenizer, and also deal kinds of oven & Incubator, Centrifuge, Autoclave, Shaker, Stirrer, Freezer,Fume Hood, Laminar Flow Cabinet, etc.
