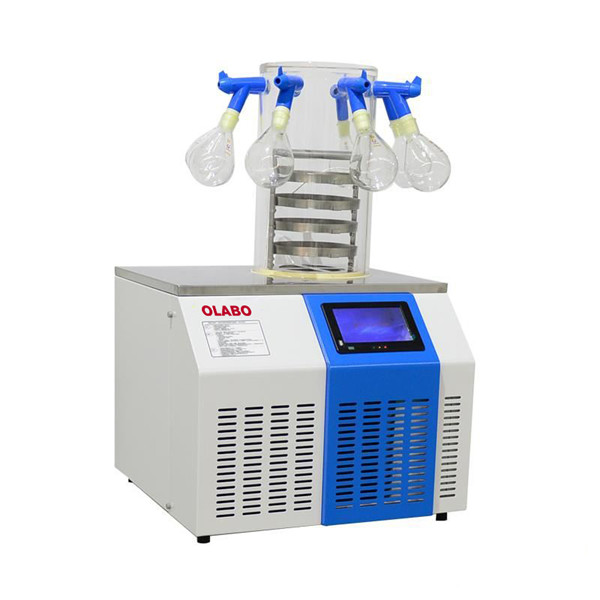

Laboratory Lyophilizer Multi-pipe Lab Vacuum Freeze Dryer with 8 pieces hanging bottles
Features:
1. LCD touch screen.
2. With historical data inquiry function.
3. With USB interface to export the data.
4. Large capacity ice condenser trap and without coil inside.
5. With cascade refrigeration technology.
6. Pre-freezing shelf can be used as guide barrel to speed up the drying rate.
7. Ice condenser trap and operation panel are made by stainless steel.
8. Drying chamber is transparent which is visual and safe.
9. Shelves are stainless steel, which can be adjustable per the requirements.
Technical Parameters
| Model | OLB-FD10P | |
| Type | Standard chamber with 8 port manifold | |
| Freeze Drying Area | 0.12 m2 | |
| Tray | 4 pcs | |
| Height Between Trays | 50mm | |
| Cold Trap Temperature | ≤-56℃ | |
| Cold Trap Capacity | 9.5L | |
| Cold Trap Size (Diameter*H) | Φ215*260mm | |
| Vacuum Degree | <10 Pa | |
| Water Capture Capacity | 3kg/24h | |
| Tray Size (D*H) | Φ200*20mm | |
| Freeze Drying Time | 24h | |
| Loading Capacity/Shelf (Liquid) | 0.3L | |
| Total Loading Capacity (Liquid) | 1.2L | |
| Drying Chamber Size (Diameter*H) | Φ260*450mm | |
| Total Qty. Of Vial Φ22 | 260 | |
| Total Qty. Of Vial Φ16 | 480 | |
| Total Qty. Of Vial Φ12 | 920 | |
| Refrigerant | R600a+R290+R23 | |
| Cooling System | Air cooling | |
| Power Consumption | 1.3KW | |
| Power Supply | AC220V, 50/60Hz; 110V, 60Hz (single phase) | |
| Standard Accessory | Vacuum pump 2L/S, 8m3/h,Conical-mouth flask 500ml*8 pcs | |
| Optional Function & Accessory | Conical-mouth flask and wide-mouth flask | |
| External Size (W*D*H) | 640*610*550/950mm | |
| Package Size(W*D*H)mm/ Gross Weight |
Main Body | 720*705*730(85kg) |
| Drying Chamber/Vacuum Pump | 705*590*530(55kg) | |
