Drive Model |

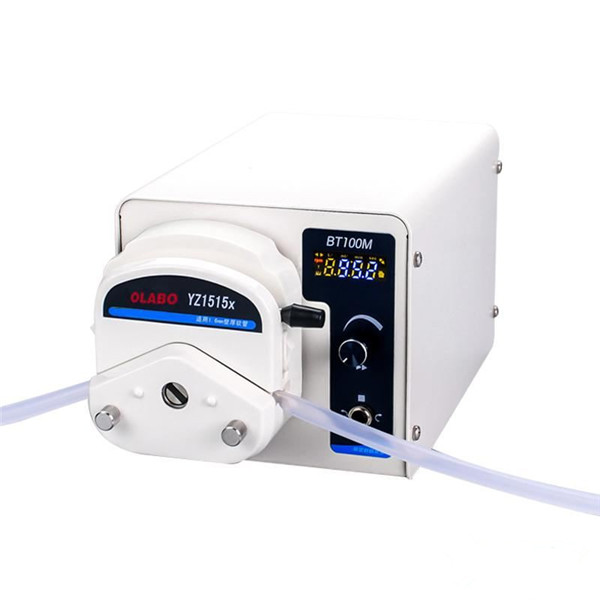

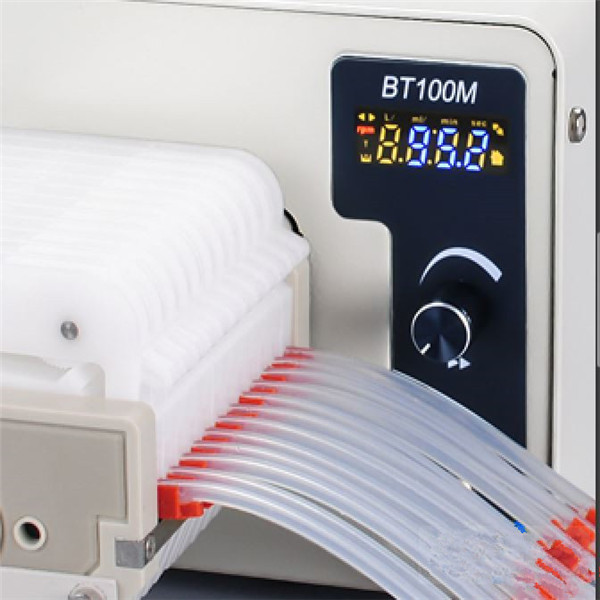

BT100M |
BT300M |
BT600M |
Speed Range |
0.1-100rpm |
0.1-300rpm |
0.1-600rpm |
Speed Resolution |
0.1rpm |
Flow Rate Range |
0.0015-380mL/min |
0.0015-1140mL/min |
0.0015-2280mL/min |
Flow Error |
<0.5% |
Speed Control Mode |
Digital knob to adjust the speed |
Display Mode |
4-bit LED shows current speed or current flow |
Power Supply |
AC220V/110V±10% |
Power |
<22W |
<35W |
<50W |
External Port Interface |
start stop control, direction control, speed control (1 ~ 5V, 0 ~ 10V, 4 ~ 20mA optional) RS485 serial communication |
Working Environment |
temperature 0 ~ 40 ℃, relative humidity < 80%, no condensation |
Drive Size |
234*144*140(mm) |
254*144*140(mm) |
254*184*145(mm) |
Drive Weight |
3.98KG |
4.3KG |
4.8KG |
Protection Grade |
IP31 |
