Steel Wooden Laboratory Island Bench 3000*1500*850mm

Description
Laboratory bench is one of the basic equipment of laboratories in various industries.
With reasonable structure, good load-bearing, flexible to assemble, easy to maintain and convenient to install and transport, it is the best choice for middle level and high level laboratories.

Xuechenglab furniture is one new environmental protection product, non-toxic, tasteless and pollution-free, ensuring the safety and health of laboratory operators.

Features
Workop: use 12.7mm thick phenolic resin(solid core physiochemical)board, all surrounding edges are double-thickened to 25.4mm, anti-static, waterproof, easy to clean, strong load-bearing, chemical corrosion resistance, high temperature resistance of 180 ℃, good scratch resistance, beautiful and smooth without hurting hands.
epoxy resin board, ceramic board, stainless steel sheet or marble is optional.

Main Frame (H Frams or C Frames and Beams): use 60*40*1.5mm high quality steel tube, the surface is pickled and phosphorized and coated with epoxy resin powder, making the frame stable, exquisite appearance, with good corrosion resistance, good load-bearing performance, long service life.
The beams would be fixed on vertical frames by screws or blind rivets.

Base Cabinet:
1- Door, Drawer and Baffle(removable panels): use 18mm thick high quality melamine board, all sections are sealed by high quality PVC, integrated with the wood board. with anti-corrosion, fire, moth and other properties.
(MDF, HDF is optional)
2- Drawer Slide: use 3- section rolling ball slide rail,light smooth and no noise when slide, high strength and not deformed after long term load (open-close can reach to over 100,000 times).
3- Door Hinge: use damping hinge, with opening angle is 90°, ,and it can be closed automatically without noise, no spring back, high strength and can not easily be broken, open-close can reach 50,000 times at least..
4-Door  Handle: use recessed type integral molding PVC handle or U type aluminum alloy or stainless steel handle, firm and elegant appearance.

Adjustable Foot: the cabinet body is suspended from the floor about 15cm
use screw and nylon combination foot pad, with adjustable height 3-5cm,

Optional: the knee space(leg room) design for people to sit.

Technical Specifications

Notes:
1. The dimension above is standard.
2. We can design and manufacture non-standard dimension as per users' requirements.
3. The price excluding reagent rack, drip rack, water sink&tap, eyewasher, etc


Optional Accessories

· Water Sink/Test Flume
Material: high density PP made, resistant to most chemicals, strong corrosion resistance;
Wall thickness: 5mm, up to 7mm, flat and non-deformation.

​· Water Tap/Faucet /Test Nozzle
Thick brass, high gloss thick epoxy resin powder; resistant to most chemicals, corrosive and heat resistance, anti ultraviolet radiation, non-toxics and safety.
Ceramic valve headwork: sealed structure, can be used for 500000 times without any leakage;
Nozzle: detachable, anti-splash bubbler is optional.
Switch knob: high grade PP knob, ergonomic design, feel comfortable, easy to operate.

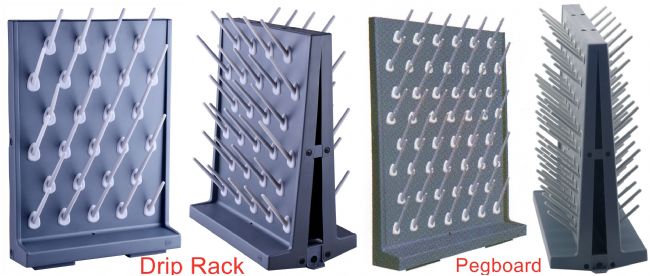

· Pegboard/Drip Rack/ Drying Rack
Material: high grade PP, stainless steel is available.
Size: 400*550*110mm, 550*700*120mm
400*550*260mm, 550*700*280mm
Type: single faced or double faced, there are drain holes in the middle of the bottom tray, and the pegs(drip rods) can be detachable, easy to use.
Installation mode: wall mounted/ desk mounted

•  Two/Three-layer Reagent Rack:

Column: use high quality rectangle steel tube 50*100-120*1.0mm, with the surface coated with epoxy resin powder, firm structure, anti-corrosion and elegant appearance;

Shelf: use 8-12mm thick single side high quality tempered glass, all around trim treatment, smooth and not easy to hurt the hands.

Other Fittings:
Equipped with glass support arm, which make user freely adjust the height according to comfortable requests.
The shelf edge is equipped with Ø12mm stainless steel stop rods in order to prevent reagent utensil drop, elegant appearance and useful.

Socket(60*60mm): 2 scokets per middle column, 1 socket per end column, 1 column per meter generally distributed.
10A or 16A socket, water-proof (3-hole or 5-hole) socket is optional
All international socket standards are available like British Standard, EU Standard, American Standard, Australian Standard, etc

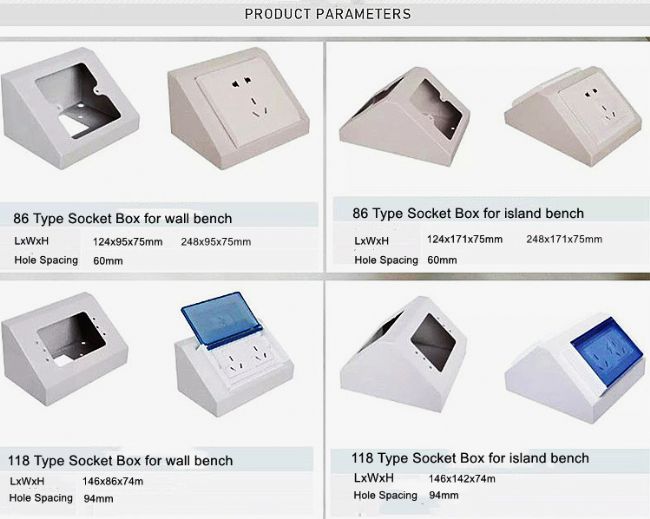

• Trunking/Socket Box

Steel, Alum-alloy or PP pedestal box
10A or 16A socket, water-proof (3-hole or 5-hole) socket is optional
All international socket standards are available like British Standard, American Standard. etc

Packaging&Shipping
They would be packed in cartons for air shipping by Airlines or Express
by Airlines: Pure Cargo plane, EY, EK, ET, QR, TK, SQ,CA, CZ, KQ, NYK, etc
by Express: DHL, FedEx, UPS, TNT, EMS, Aramex, etc

if qty in large, LCL sea shipping would be one choice.

Application
biological pharmacy, biological analysis, plant culture, environmental test, electronic instruments and scientific research, etc.

Company Profile
Xuecheng Global Trader Co., Ltd is one reliable professional industry and trade company for lab furniture, integrating production, R&D, sales, installation and after-sale service,located in beautiful Olympic Sailing City- Qingdao, China.

After years’ development, we have grown into one diversified company, engaged in lab furniture, lab equipment, medical equipment, etc

-Workshop& Production Line-

-Certification-
SGS, CE
