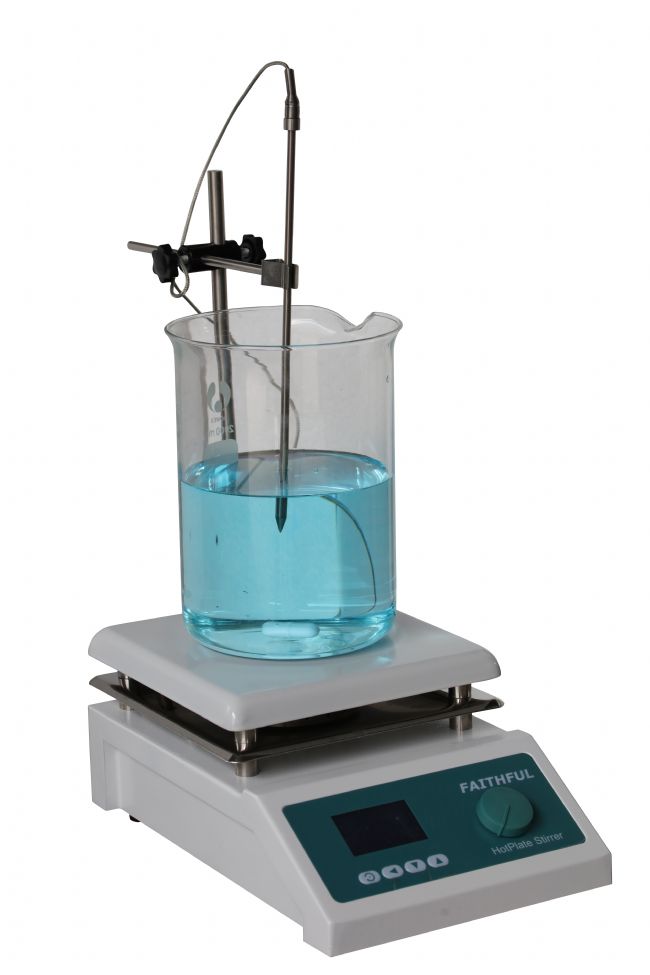

Lab Ceramic Magnetic Stirrer with Hot Plate
CE and ISO
Product Description
Characteristics：
1. Stretched shell and cover prevent leaking.
2. Heating and stirring can proceed simultaneously.
New digital model SH-II-4C, Ceramic Magnetic Stirrer with the following function:
SH-4C
1. Setting temperature precisely.And stirring speed stepless adjustable.
2. Large LCD display,temperature and rotate speed can be displayed simultaneously.
3. Double sensors:outer PT100 temperature sensor to control liquid temperature precisely ,inner K model sensor to control hot plate temperature.
SH-II-4C
1. Setting temperature and stirrer speed precisely,and stirring speed stepless adjustable.With speed switch to start or stop stirring at any time.
3. Timing function (0-9999min), audible and visual alarm.
4. Double sensors:outer PT100 temperature sensor to control liquid temperature precisely ,inner K model sensor to control hot plate temperature.
5. One key to shift inside and outside sensor easily and precisely.
6. Large screen LCD display can indicate temperature, rotational speed and timing at the same time.
Product Images
Technical Parameters：
|
Model |
SH-4A |
SH-4B |
SH-4 |
SH-4C |
SH-II-4C |
||
|
Mode |
Heating |
Stirring |
Heating + Stirring |
Digital+ Heating + Stirring |
|||
|
Function |
Max. Volume(ML) |
5000 |
5000 |
5000 |
5000 |
5000 |
|
|
|
Speed(r.p.m) |
no |
200～2000 |
||||
|
|
Working time |
Continuous |
|||||
|
|
Minimum revolution ( R.P.M.) |
no |
200 |
200 |
200 |
200 |
|
|
|
Max. temp（℃） |
380 |
no |
380 |
350 |
350 |
|
|
Structure |
Exterior |
Iron plate welding, surface spraying |
|||||
|
|
Heating plate |
Ceramic coated |
|||||
|
|
Driving mode |
no |
Motor |
||||
|
|
Motor power (W) |
no |
20 |
20 |
20 |
20 |
|
|
|
Heating power(kW) |
0.6 |
- |
0.6 |
0.6 |
0.6 |
|
|
|
Stir bar |
no |
PTFE |
||||
|
Controller |
Continuous operation |
yes |
|||||
|
|
Setting mode |
Scale |
Digital |
||||
|
|
Speed display mode |
Scale |
Digital |
Digital |
|||
|
|
Timer |
no |
yes |
||||
|
|
Operation function |
no |
yes |
||||
|
|
Sensor |
no |
PT100 |
PT100 |
|||
|
Specification |
Exterior size (W*L*H)(mm) |
320×190×125 |
|||||
|
|
Packing size (W*L*H)(mm) |
390×240×230 |
|||||
|
|
Plate size（mm） |
190×190 |
|||||
|
|
Plate load |
10KG |
|||||
|
|
Power supply（50/60Hz）Current rating |
110V or 220V |
|||||
|
|
NW/GW (kg） |
5/6 |
5/6 |
5/6 |
5/6 |
5/6 |
|
