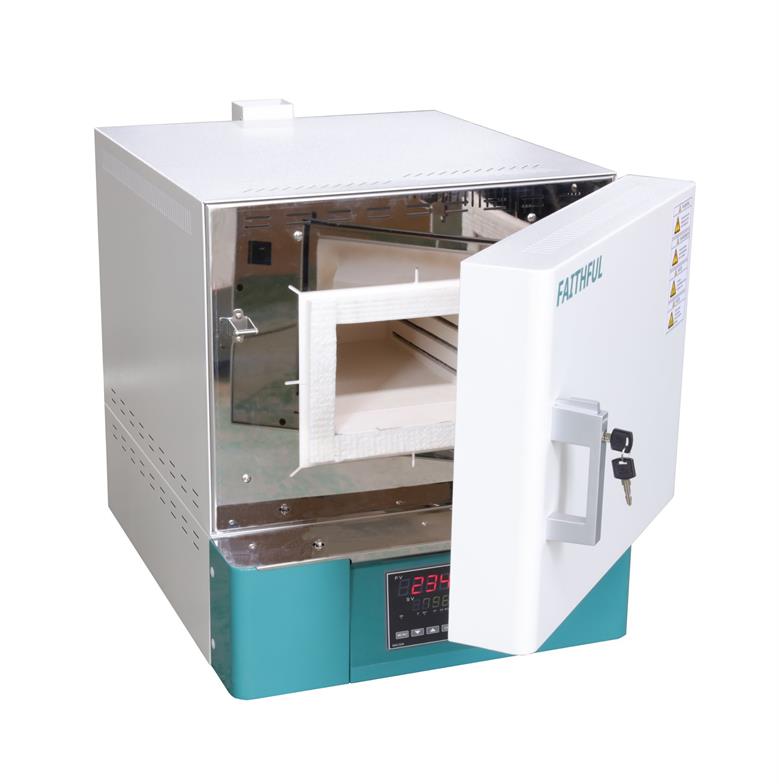

High Temperature Electric Stainless Steel Muffle Furnace for Heat Treatments

Uses:
This device is widely used in the school laboratory, industrial and mining enterprise, food processing and pharmaceuticals industry for elements analysis. It is used on heating for small steel annealing and tempering and high temperature, heating for metal and ceramics' firing, dissolution and analysis.

Characteristics:

1. Mirror stainless steel mouth, long-term use will not change color.
2. Imported double insulated ceramic liner, stable performance
3. Vacuum forming polycrystalline mullite fiber furnace, high efficiency insulation.
4. In the double shell, the air sleeve is insulated, and the double guiding air passage.

SX4 model also has the following characteristics:

Adding exhaust devices is beneficial to ashing.
Split design, circuit detachable, easy to maintenance and repair.
P model is program temperature control type. Program temperature controller can programme multistage program.

Main Technical Parameters:

Model		SX3-2.5-12	SX3-5-12		SX3-8-12	SX3-10-12
		SX3-2.5-12B	SX3-5-12B		SX3-8-12B	SX3-10-12B
		SX4-2-12	SX4-7-12		SX4-12-12	SX4-16-12
		SX4-2-12B	SX4-7-12B		SX4-12-12B	SX4-16-12B
		SX4-2-12P	SX4-7-12P		SX4-12-12P	SX4-16-12P
		SX4-2-12PB	SX4-7-12PB		SX4-12-12PB	SX4-16-12PB
Heating mode		Alloy wire heating in three sides left; right; top side.
Function	Temp. Range	100-1200ºC
	Temp. Resolution Ratio	1ºC
	Temp. motion	±1ºC
	Temp.Rising time to max temp	≤30min
Structure	Chamber material	Ceramic fiber
	Outer shell	cold rolling steel electrostatic spraying exterior; B model: stainless steel
	Insulation layer	Ceramic fiber
	Heater	Alloy heating wire
	Power rating	1.5kW		3.0kW	4.5kW	6.0kW
	Exhaust hole	φ30mm(chimney size 80*60mm)
Controller	Temp. control mode	SX3 model: domestic brand single controller; SX4 model: Imported single controller form Japan; P model: Imported 40 sections program temperature control device form Japan
	Temp. setting mode	Touch button setting
	Temp. display mode	Measuring temperature: LED upper row, setting temperature: the lower row
	Timer	0-9999min (with timing wait function) SX3 Series no timing function
	Operation function	Fixed temperature operation, timing function, auto stop.
	Additional function	Sensor deviation correction, Temperature overshoot self-tuning, Internal parameter locked, Power-off parameter memory
	Sensor	SX3:Platinum-rhodium sensor;SX4:High precision K type sensor
Safety device		Manual door security lock, over temperature sound-light alarm, door opening electrical outage, over-temperature protection,thermocouple failure
Specification	Inner Chamber size (WLH)(mm)	12020080		200300120	200300200	250400160
	Exterior size (WLH)(mm)	450685600		530785640	530785720	600895700
	Packing size (WLH)(mm)	580775730		660875770	660875850	730985830
	Volume	2L		7L	12L	16L
	Current rating (50/60HZ)	AC220V/6.6A		AC220V/13.6A	AC220V/20.4A	AC380V/9.9A
	NW/GW (kg)	33/37		45/50	62/68	77/96
optional type		LCD program temperature control device with USD date storage
