50l Chemistry Jacketed Glass Reactor Price
50l Chemistry Jacketed Glass Reactor Price
Place of Origin:
China
Brand:
TOPTION
Model:
TOPT-50L
Price:
USD3500
Hits:
1178
Updated:
9/26/2022
  • Product Detail
  • Company Profile
    Product Description

    TOPTION Glass vacuum reactor is with double glass design, the inner layer placed reaction solvent can do the mixing reaction, the inner layer can be added with the different hot and cold sources (frozen liquid, hot water or hot oil) to do loop heating or cooling reaction. This jacketed glass reactor can be used to do high temperature experiment(max temperature is 280°C),as well aslow temperature experiment(min temperature is -80°C) and vacuum tests. It is an ideal equipment for chemistry small and medium-sized experiment,bio-pharmaceuticals and new materials synthesis. It also is used for extraction of gold.


    The most important is that "the design of TOPTION reactor is unique,which can guarantee experiments of more convenient and safer.''

    Parameters
    model
    TOPT-50L
    Volume
    50L
    neck number on cover
    6
    external dia of inner vessel
    365mm
    external dia of outer vessel
    410mm
    cover dia
    265mm
    vessel height
    850mm
    motor poower
    140
    vacuum drgree
    0.098mpa
    rotating speed
    50-600rpm
    torque
    3.98
    power
    220v
    dimension
    700*500*2300
    Features

    1. volume:1L 2L 3L 5L 10L 20L 30L 50L 80L 100L 150L 200L
    2. Reacting tem:-80~300
    3. GG17, SS,PTFE sealing,TOPTION Brand
    4. University brands designated

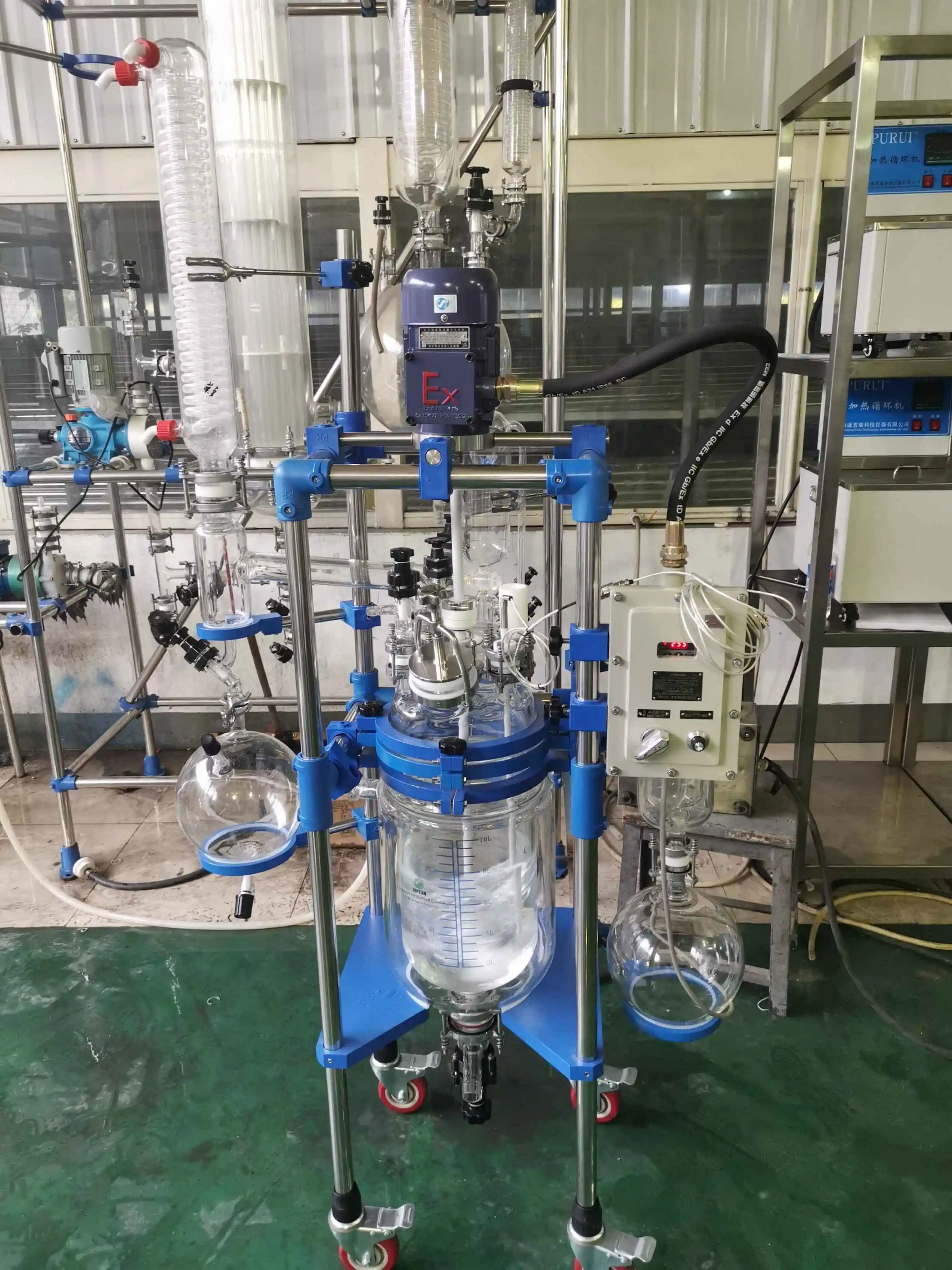

    5. Explosion-prood device is optional
    6. Ac motor,brushless,no sparkle
    7. Constant rotationg speed
    8. Reflow and distillation system
    9.chemical laboratory use
    10.reaction mixing vessel

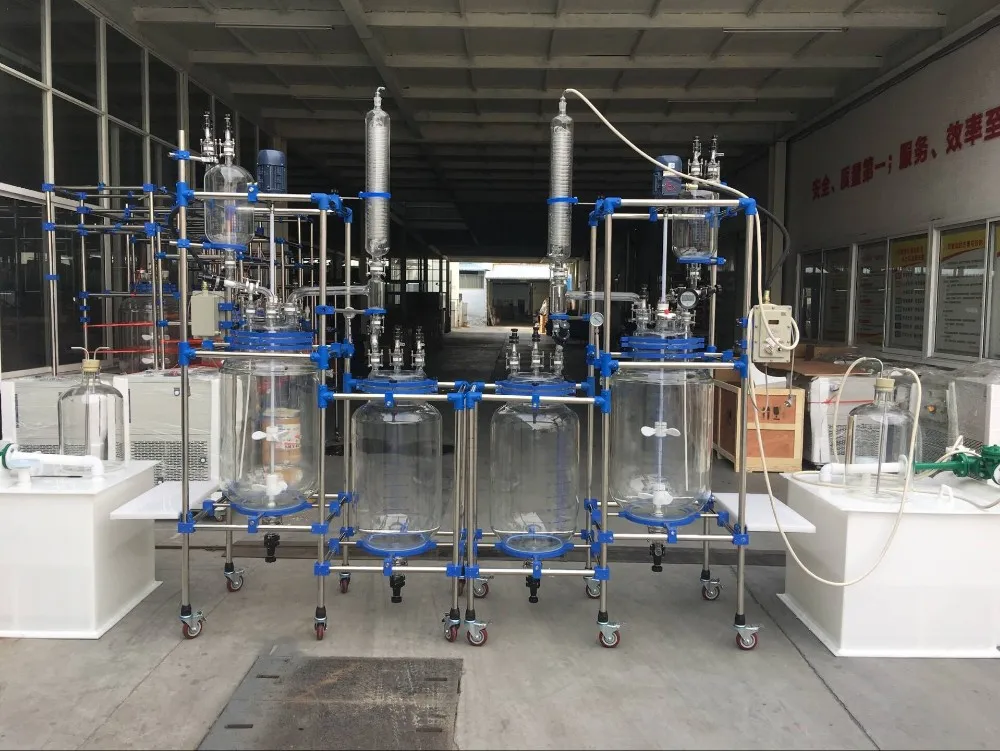

    Customized reactor

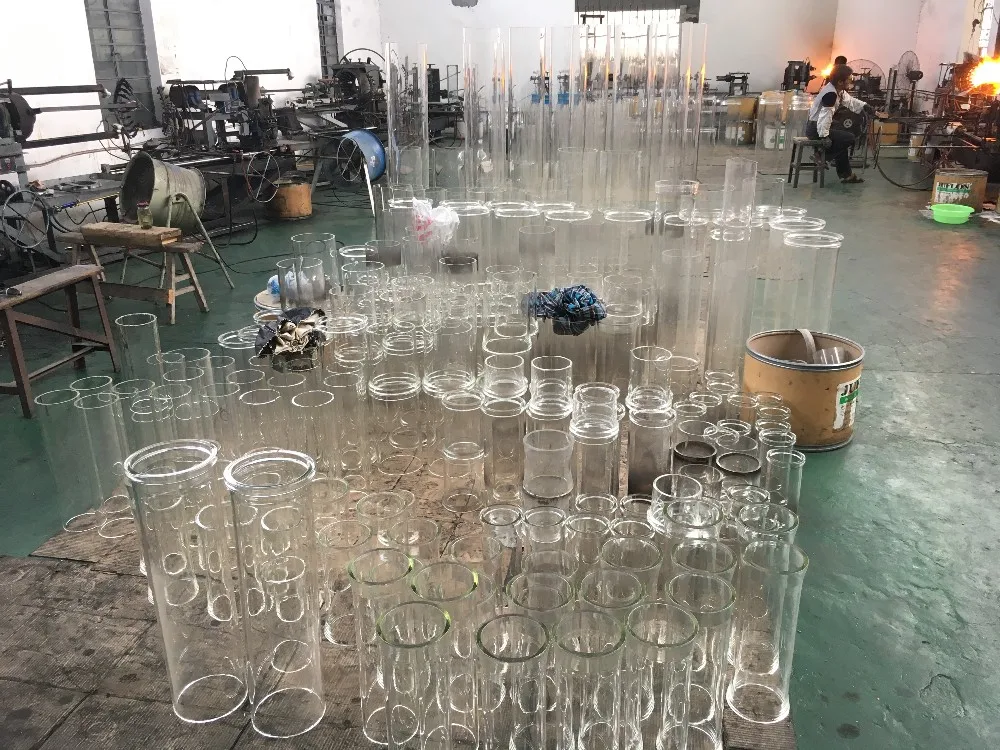

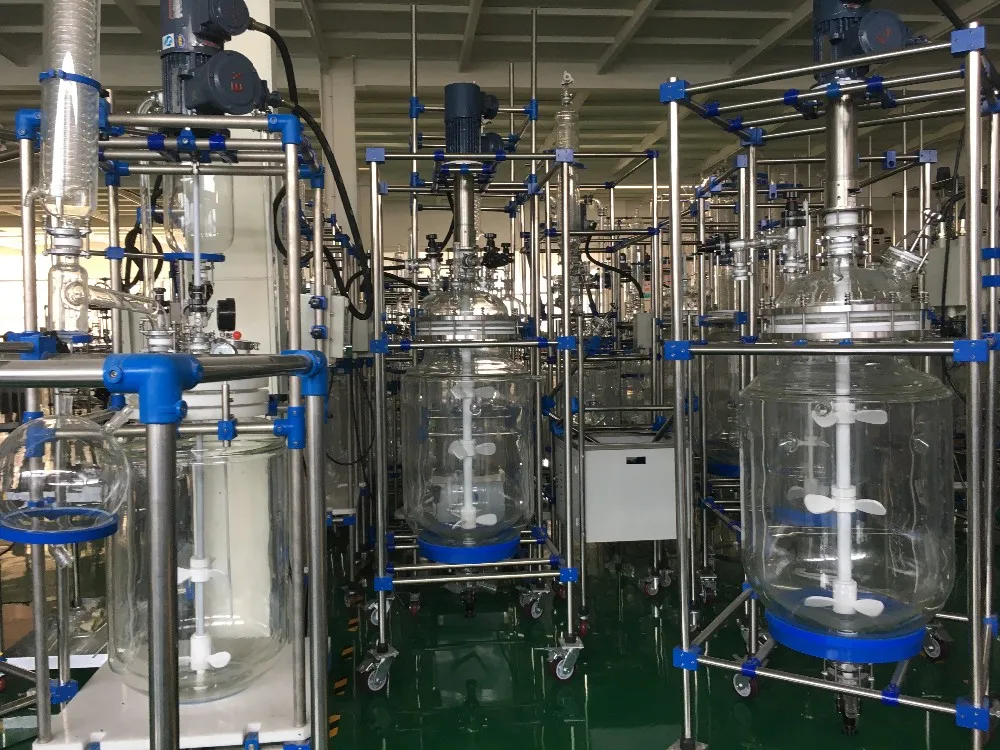

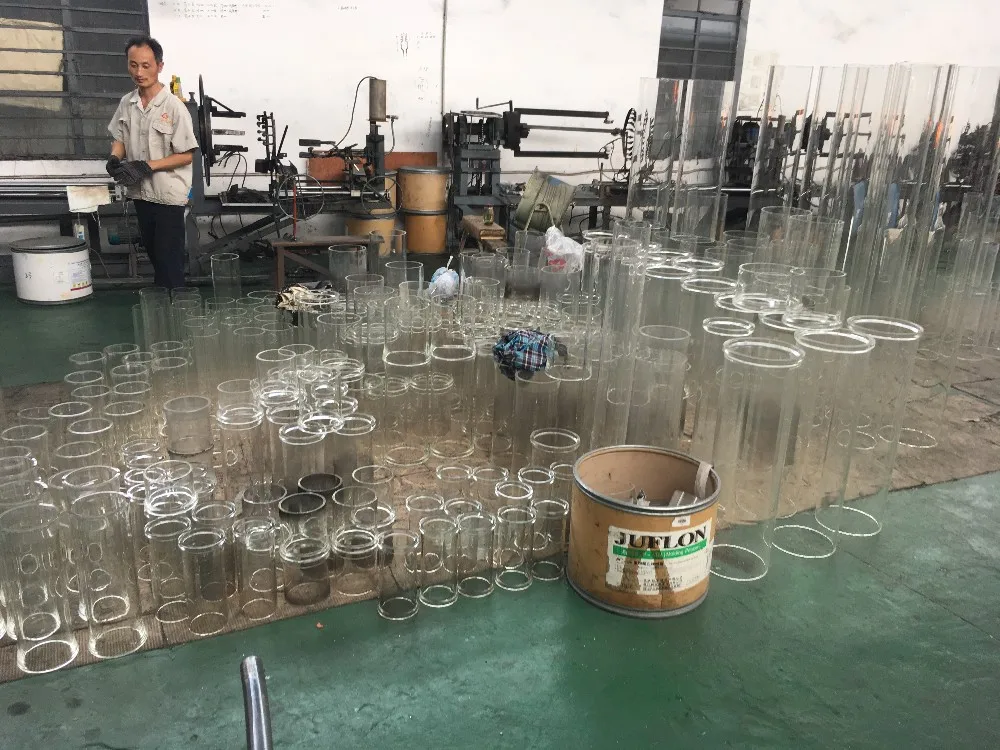

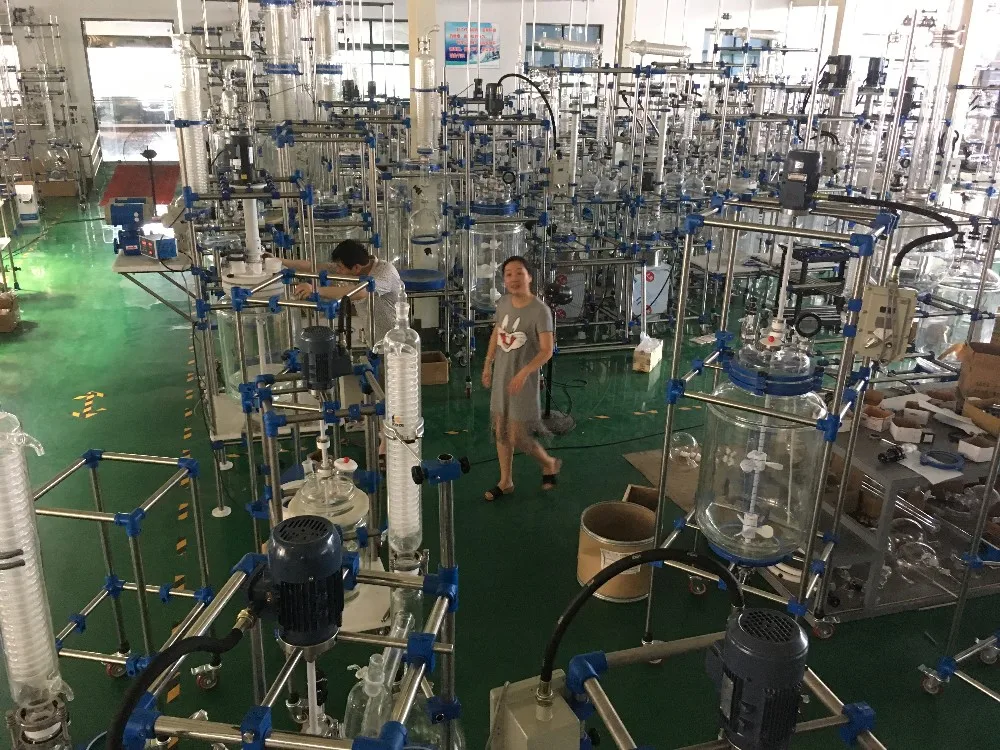

    Our factory

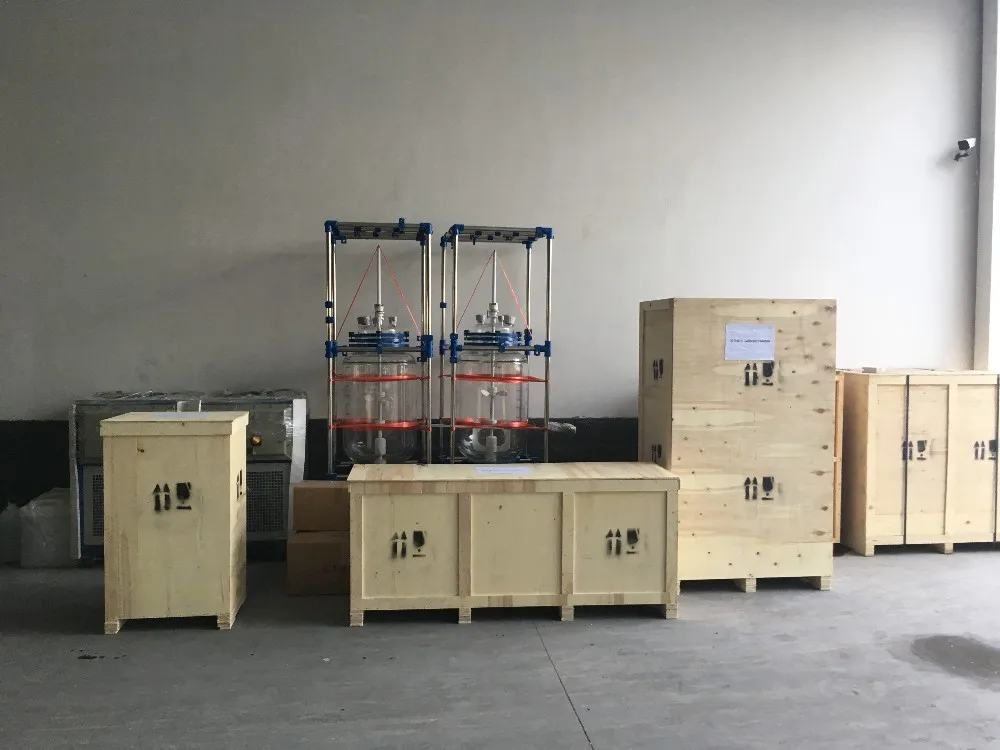

    Packing & Delivery
    Certifications
    bio-equip.cn
    Toption Company professional Lab solution provider ,mainly manufacture for glass reactor, stainless steel reactor, photochemical reactor, rotary evaporator, short-path molecular distillation, labglassware, freeze dryer , spray dryer, ultrasonic cleaner, ultrasonic homogenizer, and also deal kinds of oven & Incubator, Centrifuge, Autoclave, Shaker, Stirrer, Freezer,Fume Hood, Laminar Flow Cabinet, etc.
