WT600-2J High Flow Rate Peristaltic Pump adopts DC brushless motor and close loop control integrate circuit. It features big torque, small vibration, high efficiency and maintenance-free. WT600-2J with torque of 1.5 N.M can drive 4 single-channel pump heads or KZ25 pump head. it can deliver flow rate from 4.2 to 6000 ml/min.

Main Functions and Features

- Prime key for fast filling and emptying
- Memory function: Store working status and machine ID
- Three digital LED display the speed of pump
- Communication function: the pump could be controlled by computer through RS485 interface
- External control input: Control the speed, start/stop and direction of the pump
- Suitable for different pump heads and tubing for multiple application
- Big torque output could drive 4 single-channel pump heads
- Brushless DC motor, high output torque and free maintenance
- Operation mode: ON/OFF switch, button, rotated code switch to operate pump. It is simple and pratical

Technical Specifications

- Speed: 60-600 rpm
- speed accuracy: ±1.0%
- Speed resolution: 1.0 rpm
- Output torque: ≥1.50N·M
- External Control Input Interface: Start/Stop, CW/CCW, Speed Control (0-5V, 0-10V, 0-20mA, and 1-10kHz are optional)
- Communication interface: RS485
- Power Supply: AC 176-264V 50/60Hz
- Power Consumption: ≤200W
- Operating Condition: Temperature: 0-40℃, Relative Humidity: <80%
- Drive Dimension (L×W×H): 285×207×180 (mm)
- Drive Weight: 5.2 Kg
- IP rating: IP31

Other Parameters

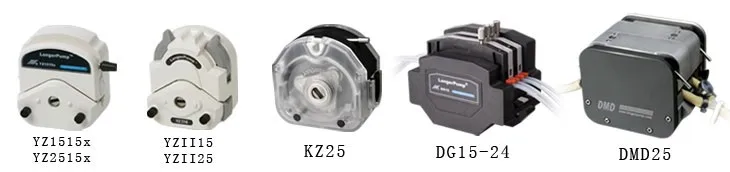

Suitable Pump Head:

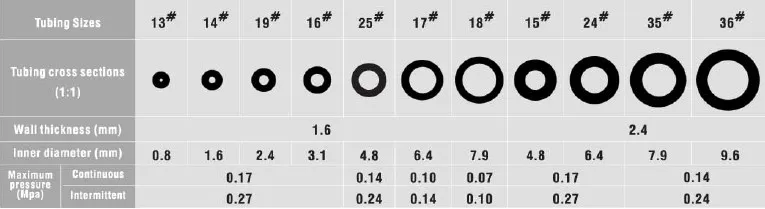

Suitable Tubing:

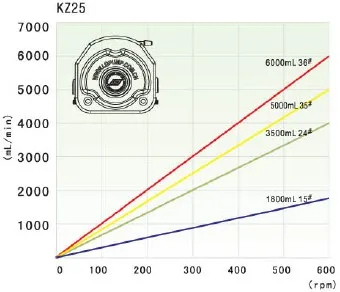

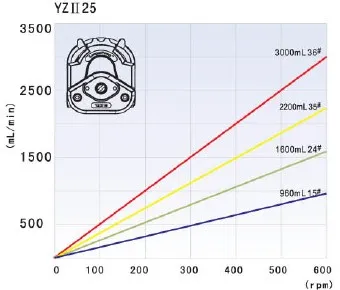

Flow Rate Curves

Q: Are you a manufacture or trading company?

A: Longer is the leader manufacture for Peristaltic pump, Syringe pump, Gear pump and Piston pump in China with 20 years history.

Q: Why choose peristaltic pump?

A: Peristaltic pump has follow advantages: Non-contamination, easy to clean, low shear and simple maintenance.

Q: How to prolong the life of pump?

A:  Keep the pump clean and dry.

Q: How to prolong the life of tubing?

A: 1) unload the tubing when the pump is not working.

     2) change the segment of tubing after a period working.

Q: What is the max. pressure of peristaltic pump can accept?

A: 0.2Mpa

Q: How many pump heads does WT600-2J can accept at same time?

A: Max. 4pcs pump head.
