long life time industrial peristaltic pump,Longer_specification/price/image

Product Detail
Company Profile

Product Description

* With aluminium alloy housing, the pump has good corrosive resistance and could be used in corrosive environment.

* With the powerful electro magnetic compatibility, the pump will not behave unacceptably in the EMI environment and will not interfere with other electronic equipment.

* With high IP rating, the pump could be used in wet and dusty environment.

* Using high quality electronic components, optimizing software design and circuit design, the pump provides long-term reliable and stable operation.

* LCD displays parameters and running state, which provides enough information for correct operation.

Technical Parameters

* Speed: 0rpm-100rpm,CW/CCW
* Speed resolution: 0.1rpm
* Display: LCD
* Control mode: Keypad, external signal control and communication control are available
* External control: Start/stop control, direction control: voltage level signal or switch signal are optional.
* Speed control: 0-5V,0-10V,4-20mA,0-10kHz are optional with uniform interface, max speed can be changed within 100rpm.
* Communication control: RS485 interface, Longer protocol or Modbus protocol, the communication parameters (baud rate, parity, stop bit) can be set through keypad.
* Parameter memory: Running parameters and system parameters will be saved automatically.
* Running state when power on: The running state when power on can be set as stop or as previous state.
* Prime: Fast filling or emptying at full speed
* EMC: Comply with EMC Directive 2014/30/EU
* Keypad lock function: Keypad can be locked to prevent the misoperation. The locking delay time can be set.
* Dimension(L X W X H): 235mm*142mm*152mm
* Power supply: AC90V-260V/20W,50-60Hz
* Operating temperature: 0℃-40℃
* Relative humidity: 10%-90%
* IP rating: IP65
* Weight: 3.64kg

Other Parameters

Model	Product Code	Pump Head	Tubing	Max. Flow Rate(ml/min)	Weight (kg)
G100-1J	05.02.20A	YZ1515X,YZⅡ15	13#14#19#16#25#17#18#	380	4.04
		YZ2515X	15# 24#	270
		YZⅡ25	15# 24#35#36#	500
		FG15-13	13#14#19#16#25#17#18#	430	3.92
		FG25-13	15# 24#	320	3.92
		DMD15-13-B	213# 214# 219# 216# 2*25#	375	4.07
		BZ15-13-A	14#	22	3.95
		BZ15-13-B	16#	80
		BZ15-13-C	25#	150
		BZ15-13-D	17#	270
		BZ25-13-B	24#	250
		DG15-24	16# 25# 17#	300 (Single Channel)	4.46
		DG15-28	13# 14# ID≤3.17mm Wall Thickness 0.8-1mm	75 (Single Channel)	4.31
		DG-(1, 2, 4) 6 Rollers	ID≤3.17mm Wall Thickness 0.8-1mm	48 (Single Channel)	3.84-3.91
		DG-(1, 2, 4) 10 Rollers	ID≤3.17mm Wall Thickness 0.8-1mm	32 (Single Channel)	3.84-3.91

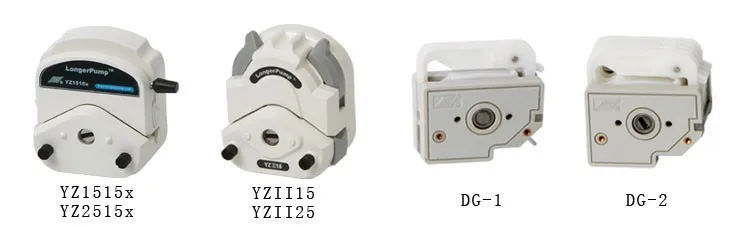

Suitable Pump Heads:

Industrial 6v Peristaltic Pump

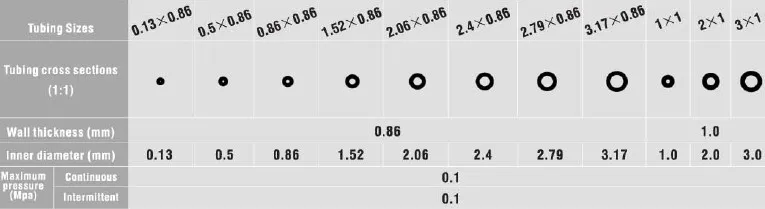

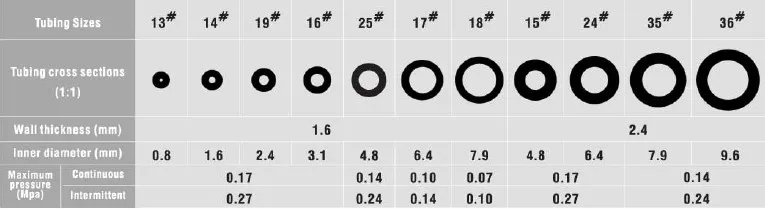

Suitable Tubing:

Industrial 6v Peristaltic Pump

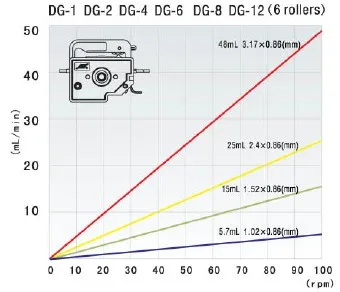

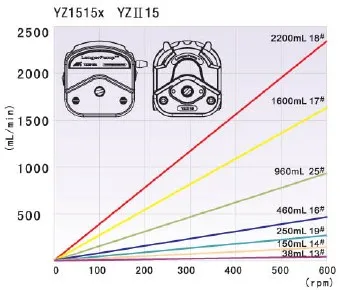

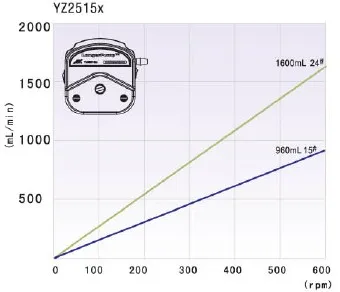

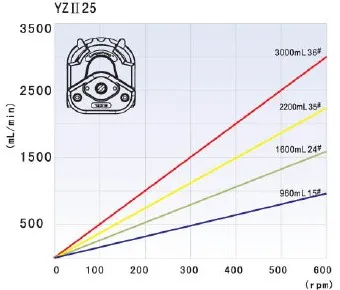

Flow Rate Curves:

Industrial 6v Peristaltic Pump

FAQ

Q: Are you a manufacture or trading company?

A: Longer is the leader manufacture for Peristaltic pump, Syringe pump, Gear pump and Piston pump in China with 20 years history.

Q: Why choose peristaltic pump?

A: Peristaltic pump has follow advantages: Non-contamination, easy to clean, low shear and simple maintenance.

Q: How to prolong the life of pump?

A: Keep the pump clean and dry.

Q: How to prolong the life of tubing?

A: 1) unload the tubing when the pump is not working.

2) change the segment of tubing after a period working.

Longer Precision Pump Co., Ltd, was founded in 1997, LongerPump is a wholly owned subsidiary of the Halma Group, and is affiliated to Medical Sector which specializes in R&D, production and the sale of precise fluid transfer and handling devices. Longer has always persisted on customer orientation, and we provide our customers with safe, high accuracy and quality fluid transfer devices and solutions. Our products not only include peristaltic pumps, laboratorial syringe pumps, industrial syringe pumps, micro-gear pumps, dispensing and filling systems, etc., which can also be customized and designed to OEM pumps according to the clients’ different needs. Longer has more than 40 series of products with over 300 specifications.
